Product Description
| Type | Description |
| PART# | ADF7021BCPZ-RL |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Type | TxRx Only |
| RF Family/Standard | General ISM < 1GHz |
| Protocol | - |
| Modulation | 2FSK, 2GFSK, 3FSK, 4FSK, FHSS, GMSK, MSK |
| Frequency | 80MHz ~ 650MHz, 862MHz ~ 950MHz |
| Data Rate (Max) | 32.8kbps |
| Power - Output | 13dBm |
| Sensitivity | -130dBm |
| Memory Size | - |
| Serial Interfaces | SPI, UART |
| Voltage - Supply | 2.3V ~ 3.6V |
| Current - Receiving | 17.5mA ~ 26.4mA |
| Current - Transmitting | 13.5mA ~ 32.3mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 48-LFCSP (7x7) |
| Base Product Number | ADF7021 |

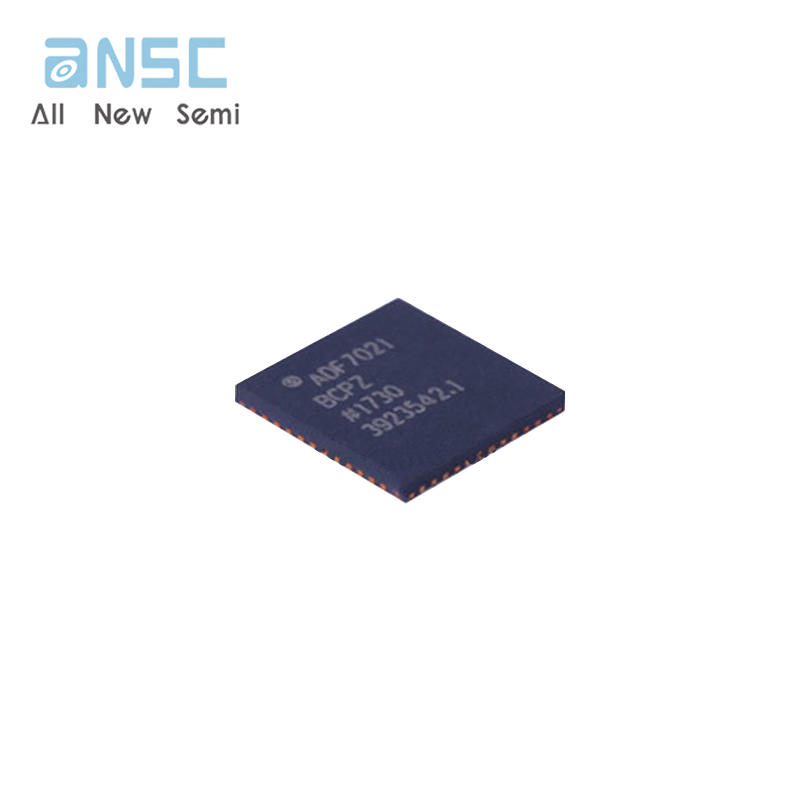

Product Photos
