Product Description
| Type | Description |
| PART# | AD5360BSTZ |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tray |
| Part Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 16 |
| Settling Time | 30µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Voltage - Supply, Analog | 8V ~ 16.5V, -4.5V ~ 16.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V |
| INL/DNL (LSB) | ±4 (Max), ±1 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 52-LQFP |
| Supplier Device Package | 52-LQFP (10x10) |
| Mounting Type | Surface Mount |
| Base Product Number | AD5360 |

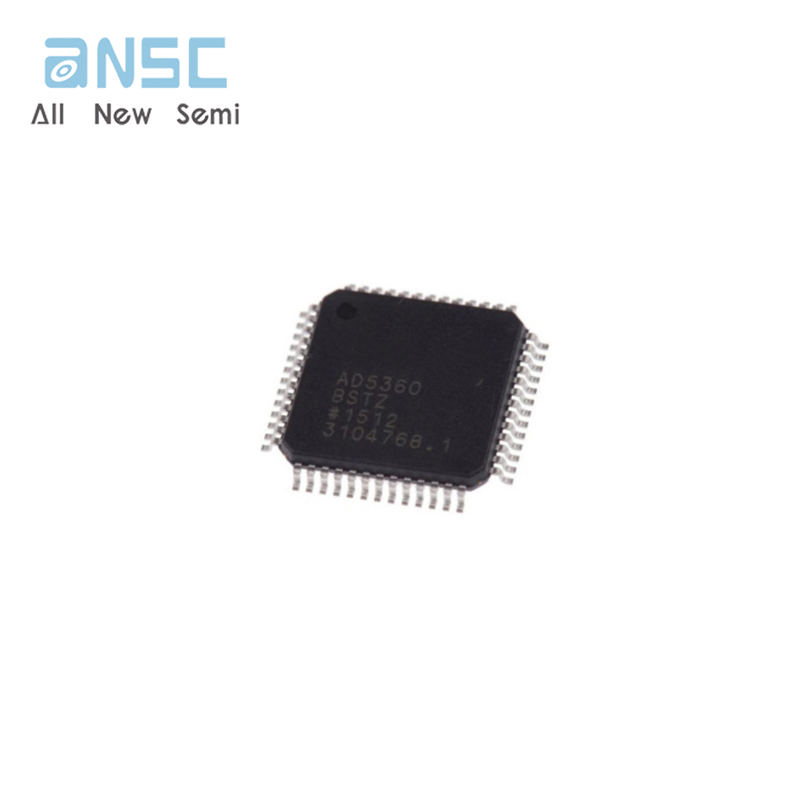

Product Photos
