High Voltage, Half Bridge Driver The NCP5104 is a High Voltage Power gate Driver providing two outputs for direct drive of 2 N−channel power MOSFETs or IGBTs arranged in a half−bridge configuration. It uses the bootstrap technique to insure a proper drive of the High−side power switch. Features • High Voltage Range: up to 600 V • dV/dt Immunity ±50 V/nsec • Gate Drive Supply Range from 10 V to 20 V • High and Low Drive Outputs • Output Source / Sink Current Capability 250 mA / 500 mA • 3.3 V and 5 V Input Logic Compatible • Up to VCC Swing on Input Pins • Extended Allowable Negative Bridge Pin Voltage Swing to −10 V for Signal Propagation • Matched Propagation Delays between Both Channels • 1 Input with Internal Fixed Dead Time (520 ns) • Under VCC LockOut (UVLO) for Both Channels • Pin to Pin Compatible with Industry Standards • NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant Typical Applications • Half−Bridge Power Converters |
Product Description
| Type | Description |
| ANSC PART# | ANSC - NCV51200MNTXG |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Special Purpose Regulators | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Applications | LDO (Linear), DDR |
| Voltage - Input | 1.1V ~ 3.5V |
| Number of Outputs | 1 |
| Voltage - Output | - |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| Base Product Number | NCV51200 |

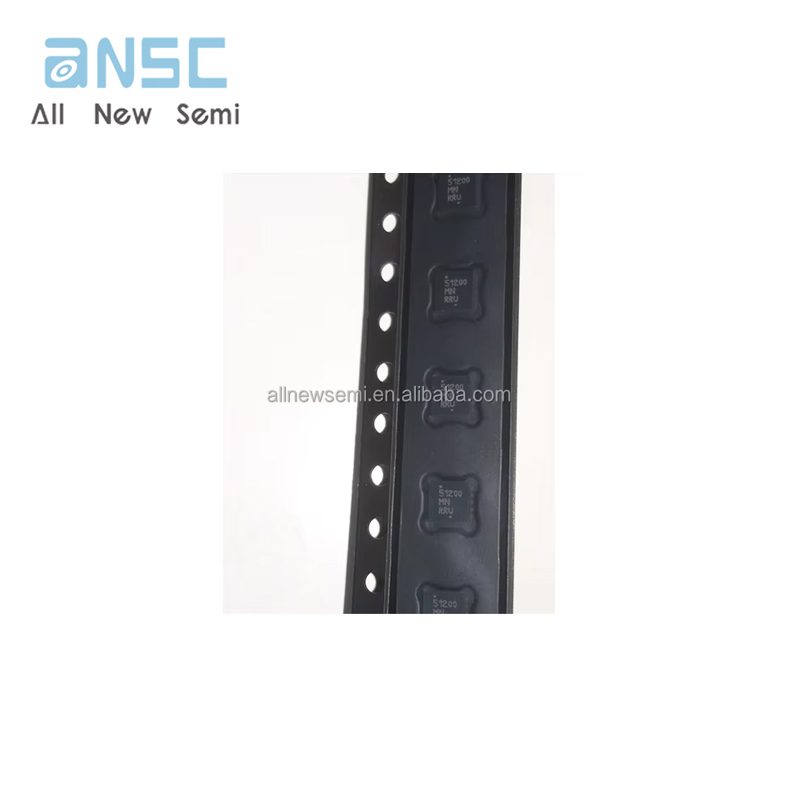

Actual image of the product
