Product Overview

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a TO-261-4, TO-261AA case. On the regulater IC chip, there are a total of 4 terminations. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. A total of 3 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 4 pins on the chip. As an FYI, this IC voltage regulator has the basic part number LM1117. As you can see from the picture, the regulator IC is packed in a certain way. Taking into account the operation requirements, the maximum output current of the IC voltage regulator reaches 800mA. It operates in the 15mA Quiescent Current state. This model is a part of the LM1117-3.3 Series and is of high quality. The top supply voltage can be set to 10V volts.

Product Features

1.2V dropout voltage
TR method of packing

Product Applications

LM1117IMP-3.3/NOPB Linear Voltage Regulators applications.

• Video equipment

• CPU power supply

• Switching regulator

• Multiple-power supply system

• Digital audio player

• Digital TV

• Smartcard

• Industrial equipment

• DVD and CD-ROM drive

• Quick charge protocols

Product Description

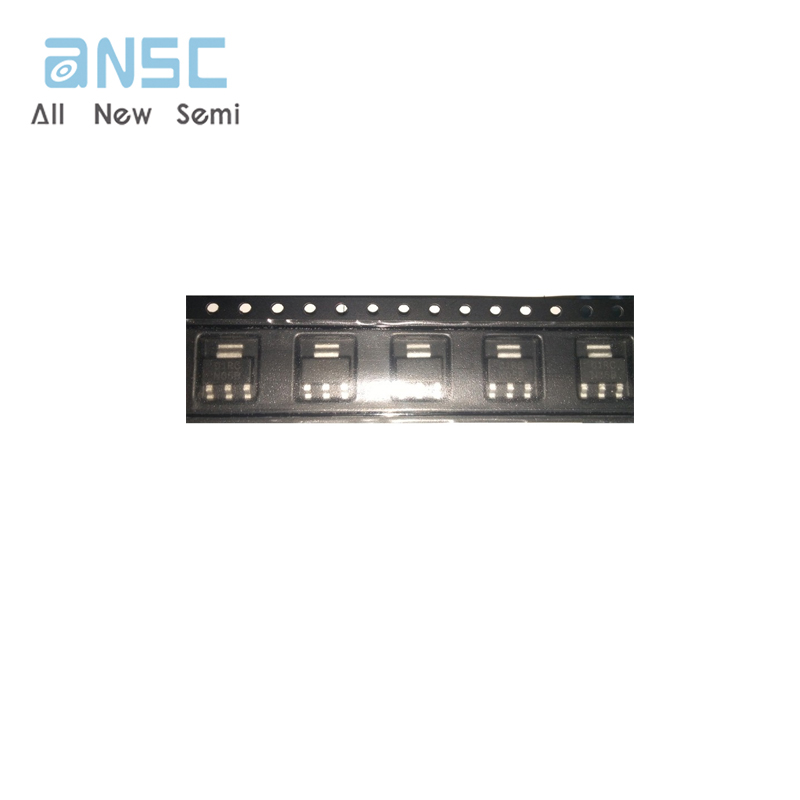

Actual image of the product

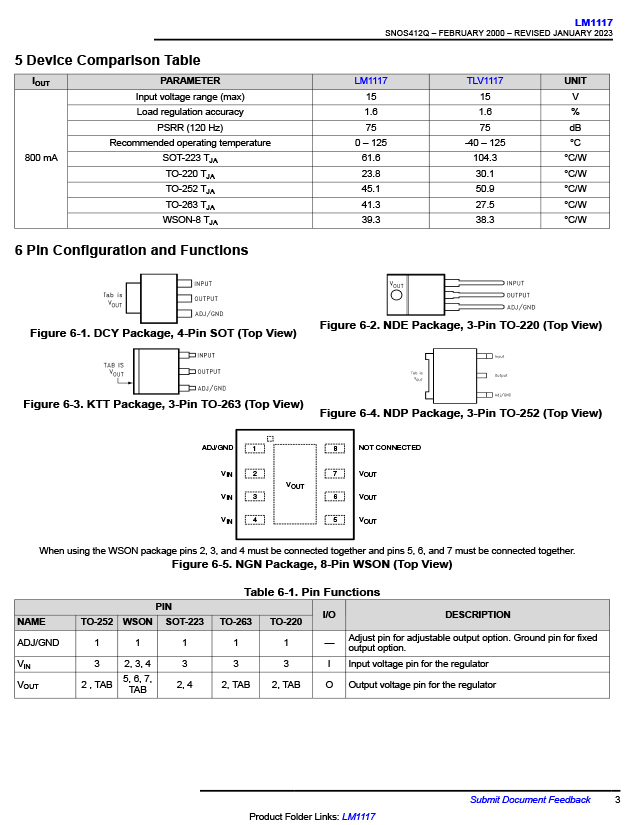

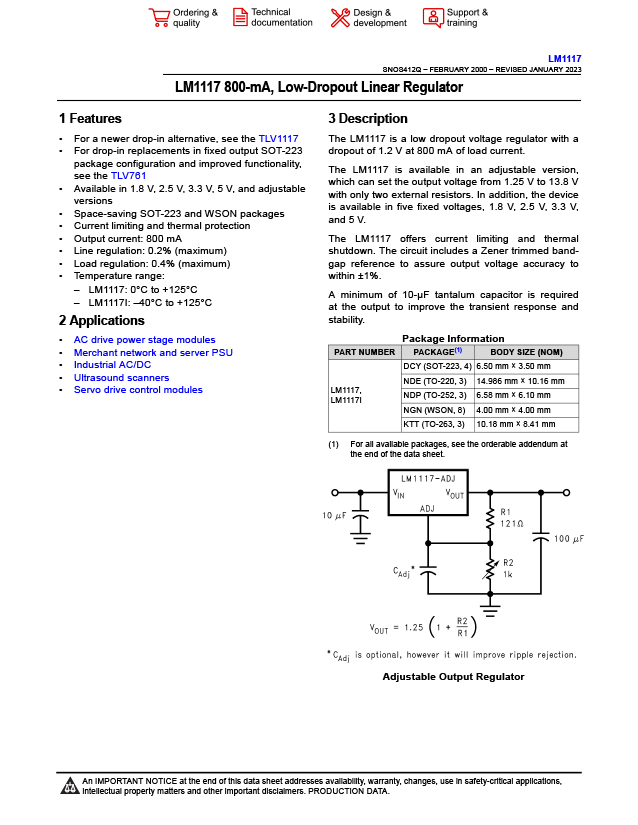

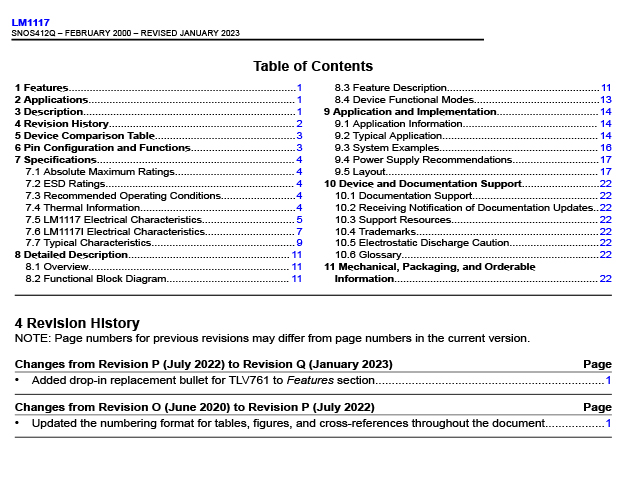

Product datasheet

For more information, please download
