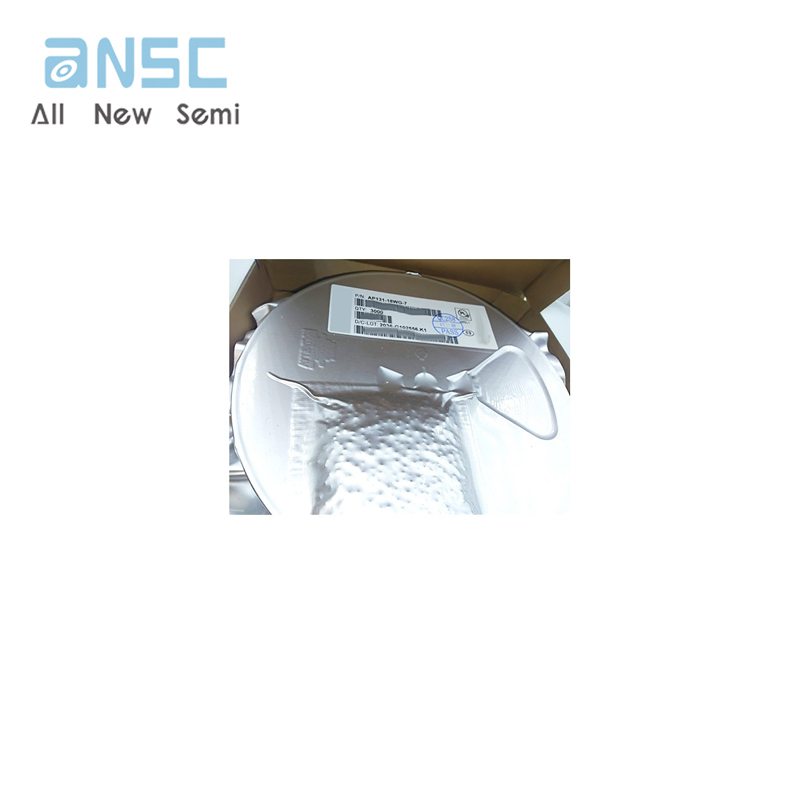

Hot sale original electronics AP131-18WG-7 IC REG LINEAR 1.8V 300MA SOT25 Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-25_IC chip

Product Details

Features

• Input Voltage Range is from 2.7V to 5.5V

• Dropout Voltage 400mV at 300mA Output Current

• Guaranteed 300mA Output Current

• Internal Ron = 1.5Ω PMOS Draws no Base Current

• Low Quiescent Current 50µA

• Output Voltage: 1.5V/1.8V/2.0V/2.5V/2.8V/

• 2.9V/3.0V/3.3V/ 3.5V; Accuracy 2%

• Active Low Shutdown Function (EN pin)

• Fast Transient Response

• Good Load Regulation

• Current Limit and Thermal Shutdown Protection

• Short-Circuit Current Fold-Back

• Lead Free package: SOT25

• SOT25: Available in “Green” Molding Compound

(No Br, Sb)

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3

TYPE	DESCRIPTION
&ZeroWidthSpace;ANSC PART#	ANSC - AP131-18WG-7
Category	Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Mfr	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	-
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.5V @ 300mA
Current - Output	300mA
Current - Quiescent (Iq)	100 µA
PSRR	60dB (100Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-25
Base Product Number	AP131

For more information, please download
