Product Details
| Product Brief Description: The BUV26 is a NPN bipolar junction transistor (BJT) manufactured . It is a single-element, through-hole mounted transistor designed for switching applications. The transistor is non-RoHS compliant and has a maximum power rating of 85W. Features: NPN transistor type Silicon element material Maximum collector-emitter breakdown voltage: 90V Maximum collector current: 10A Maximum collector-emitter saturation voltage: 1.5V at 1.2A, 12A Operating temperature: 175°C (TJ) Peak reflow temperature: 260°C Moisture sensitivity level (MSL): 1 (unlimited) JESD-609 code: e3 JESD-30 code: R-PSFM-T3 JEDEC-95 code: TO-220AB RoHS status: Non-RoHS compliant Pbfree code: yes Application Grade: The BUV26 is designed for commercial applications and is suitable for switching applications. Applications: Switching applications Power amplifiers Power supplies Motor control Industrial control systems Automotive electronics Aerospace and defense electronics Key Information: Part number: BUV26 Manufacturer: / Transistor type: NPN Element material: Silicon Maximum collector-emitter breakdown voltage: 90V Maximum collector current: 10A Maximum collector-emitter saturation voltage: 1.5V at 1.2A, 12A Operating temperature: 175°C (TJ) Peak reflow temperature: 260°C Moisture sensitivity level (MSL): 1 (unlimited) RoHS status: Non-RoHS compliant Pbfree code: yes Packaging: Tube Package / Case: TO-220-3 Mounting type: Through hole Configuration: Single Case connection: Collector |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - BUV26 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 90 V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 1.2A, 12A |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Power - Max | 85 W |
| Frequency - Transition | - |
| Operating Temperature | 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Base Product Number | BUV26 |

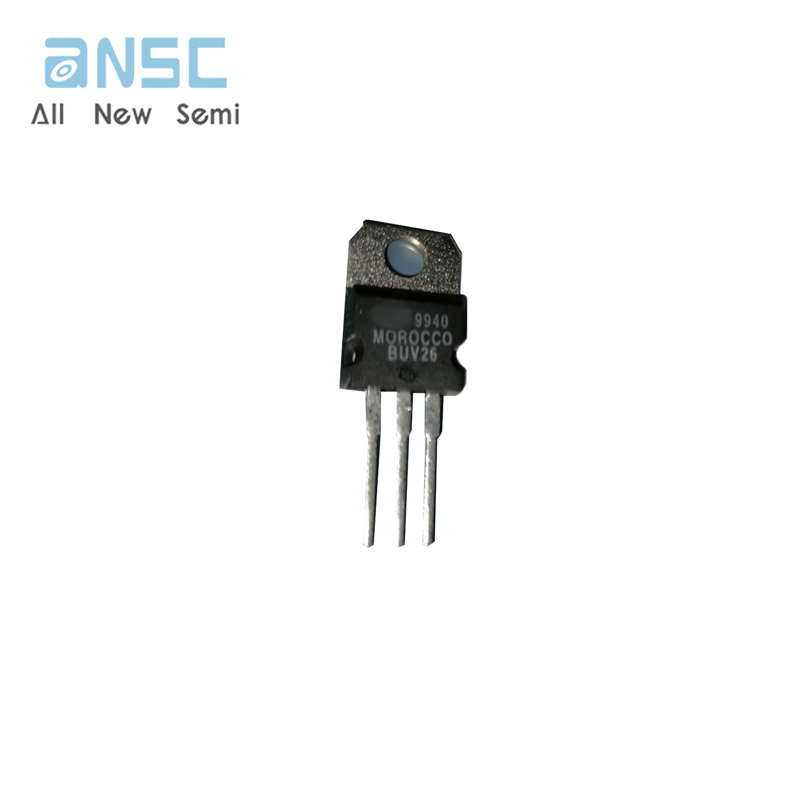

Actual image of the product

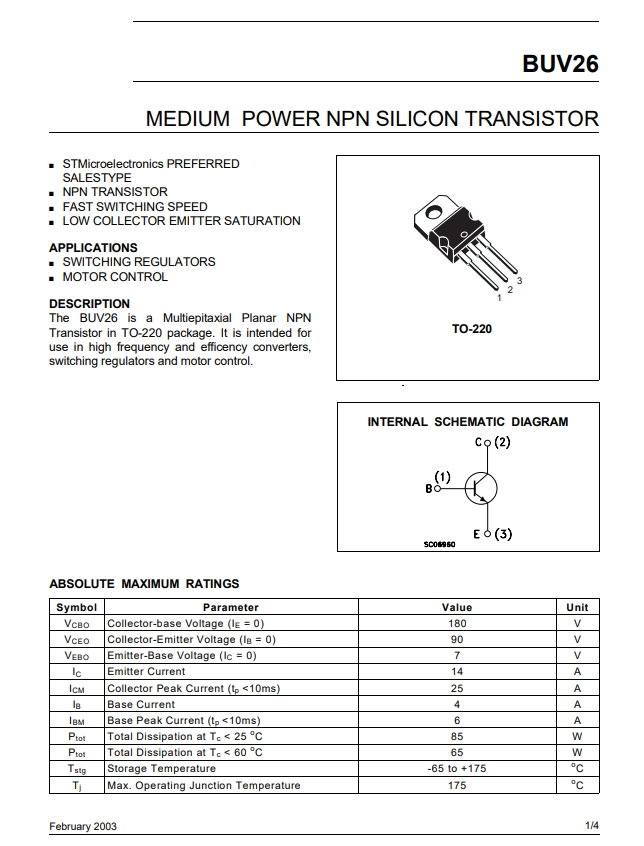

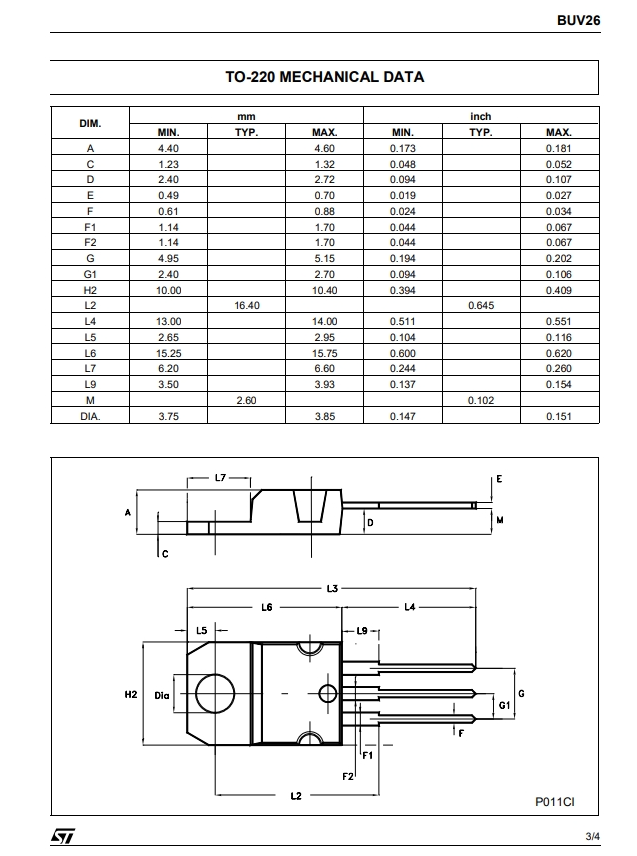

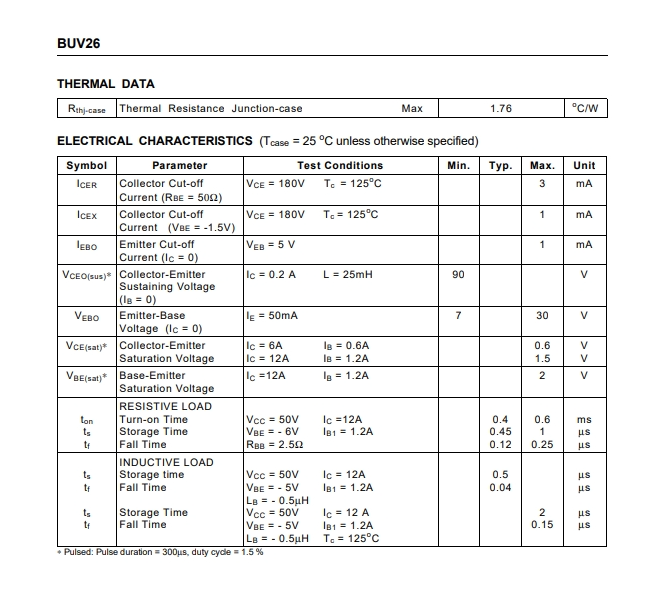

Product datasheet
