MSS1P6-M3/89A Overview
Reverse leakage current is maximally zero volts with this device.This device's average rectified current is zero volts.A forward current of 1A is allowed.Surge currents are limited to 25A.A 40pF value can be delivered based on the capacitance.In terms of output current, the maximum value is 1A.The datasheets show a peak reverse of 20μA, as shown in the data chart.
MSS1P6-M3/89A Features
a maximal reverse leakage current of 150μA volts
an average rectified current of 1A volts
1A is the maximum value
the peak reverse is 20μA
MSS1P6-M3/89A Applications
There are a lot of Vishay Semiconductor Diodes Division
MSS1P6-M3/89A applications of single-phase diode rectifier.
DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
Product Description
Vishay General Semiconductor - Diodes Division MSS1P6-M3/89A
Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 680mV @ 1A -55°C~150°C 150μA @ 60V 2-Termination Tape & Reel (TR) DO-219AD Surface Mount
ANSC PART# | ANSC- MSS1P6-M3/89A |
Part# | MSS1P6-M3/89A |
Type： | Diodes |
Manufactor | Vishay General Semiconductor - Diodes Division |
DC | new |
Package / Case | MicroSMP (DO-219AD) |
Supplier Device Package | Tape & Reel (TR)Cut Tape (CT) |
Product Attributes
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Series | eSMP庐 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 680 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 150 碌A @ 60 V |
| Capacitance @ Vr, F | 40pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | MicroSMP |
| Supplier Device Package | MicroSMP (DO-219AD) |
| Operating Temperature - Junction | -55掳C ~ 150掳C |
| Base Product Number | MSS1P6 |

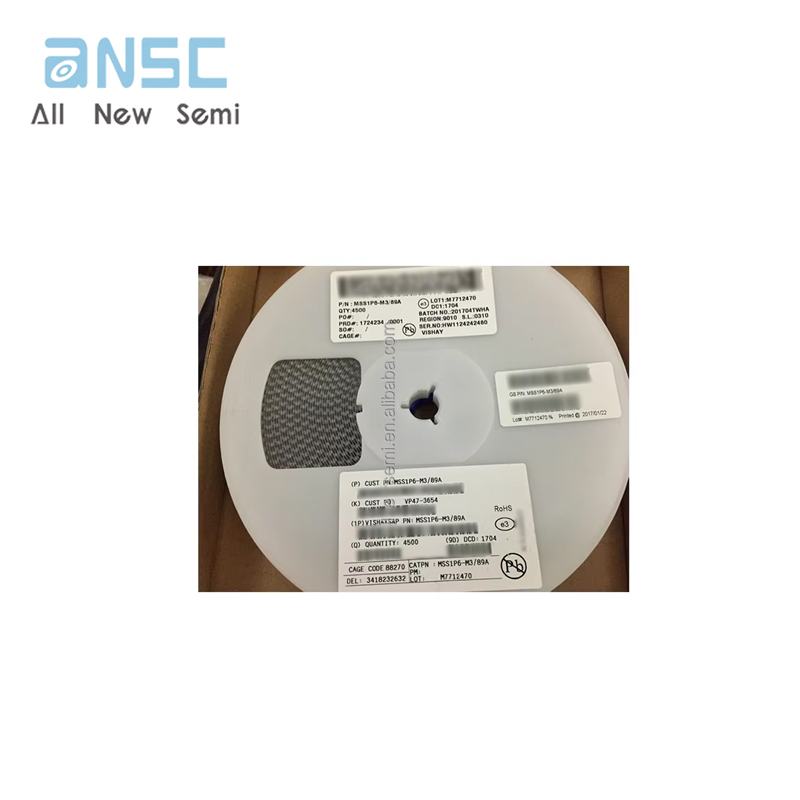

Actual image of the product

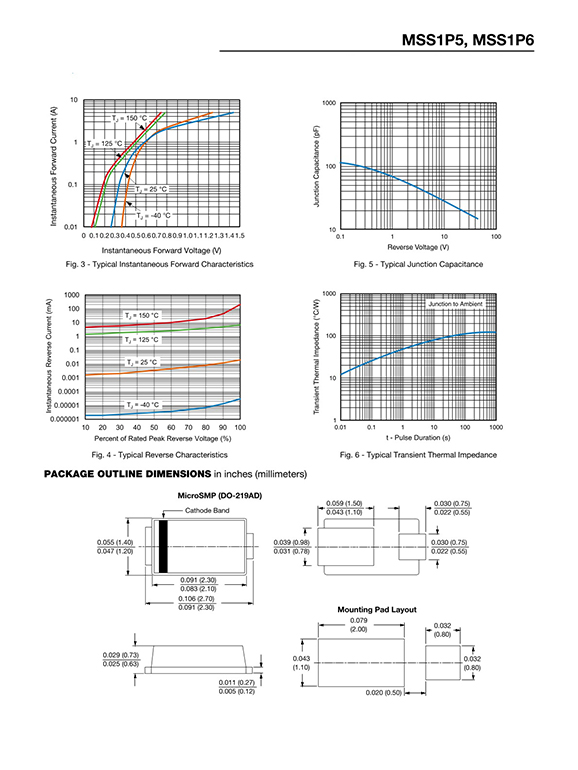

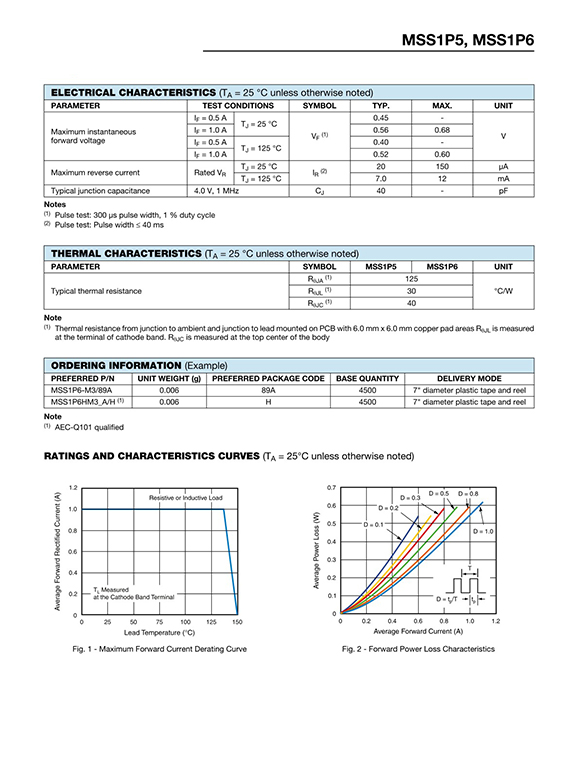

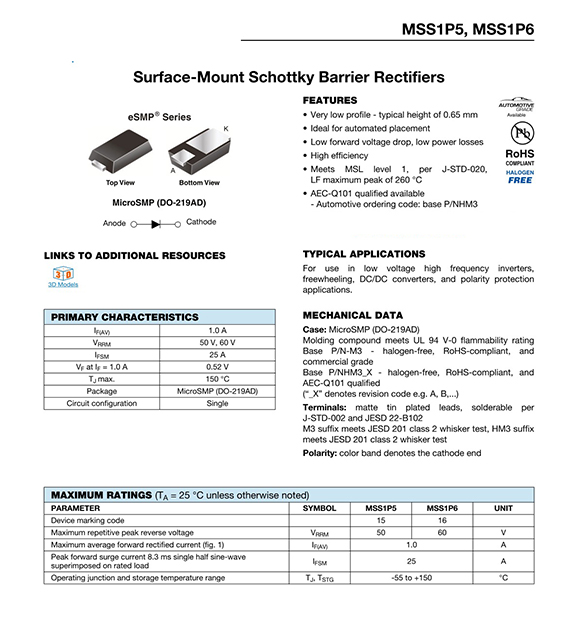

Product datasheet
For more information, please download
