Product Details
TACR476M006RTA Overview
Known as internal resistance, equivalent series resistance (ESR) is the loss of energy in an electronic circuit containing a resistor and an ideal (perfect)
capacitor, whose resistance is 5Ohm in this case.This capacitor leaks 3μA current.
A capacitor's dissipation factor is the power lost when AC is applied to the capacitor, which is 20 %.
The Tan Delta test of insulating oil determines its quality by measuring its electrical dielectric properties.
TACR476M006RTA Features
a leakage current of 3μA in this capacitor
the dissipation factor is 20 %
its tan delta is 0.2
TACR476M006RTA ApplicationsTACR476M006RTA applications of tantalum capacitors.
Computer
General purpose
General low power DC/DC and LDO
Automotive ECU
ABS
Airbag systems
Avionics,
Industrial control units
Military / aerospace
General purpose
Product Description
| Type# | Description |
| PART# | TACR476M006RTA |
| Category | Capacitors |
| Tantalum Capacitors | |
| Mfr |
/ |
| Series | TACmicrochip®, TAC |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 5Ohm @ 100kHz |
| Operating Temperature |
-55°C ~ 125°C |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.053" W (2.00mm x 1.35mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Lead Spacing | - |
| Manufacturer Size Code | R |
| Ratings | - |
| Features | General Purpose |
| Failure Rate | - |

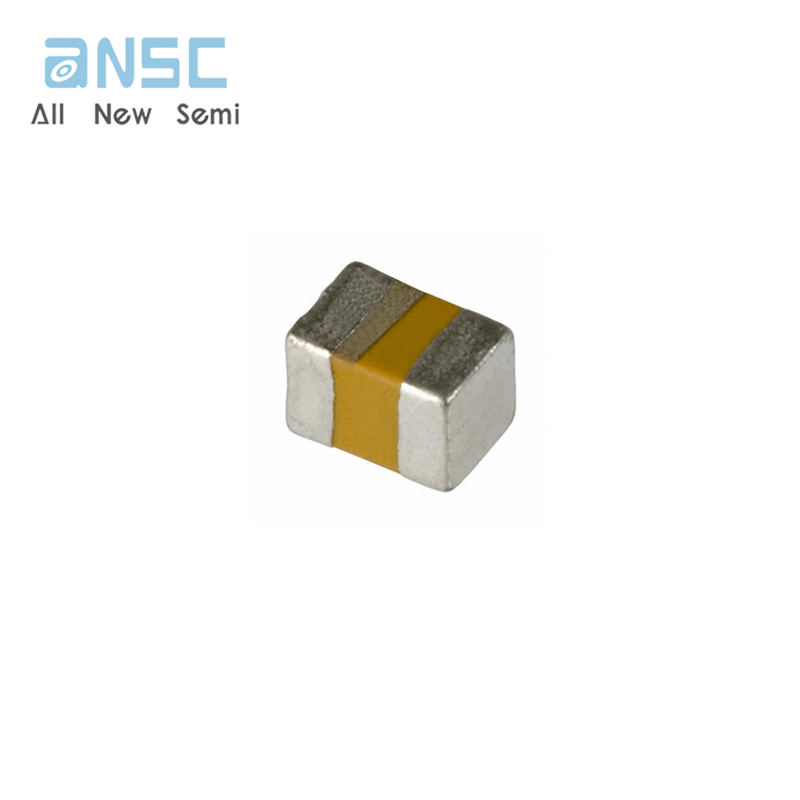

Actual image of the product
