Product Description
| Type# | Description |
| PART# | EEEFK1H221P |
| Ihs Manufacturer | Original |
| Package Description | CHIP |
| Samacsys Manufacturer | / |
| Capacitance | 220 µF |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR |
| Diameter | 10 mm |
| Dielectric Material | ALUMINUM (WET) |
| Height | 10.2 mm |
| JESD-609 Code | e6 |
| Leakage Current | 0.11 mA |
| Length | 10.3 mm |
| Mounting Feature | SURFACE MOUNT |
| Negative Tolerance | 20% |
| Number of Terminals | 2 |
| Operating Temperature-Max | 105 °C |
| Operating Temperature-Min | -55 °C |
| Package Shape | CYLINDRICAL PACKAGE |
| Package Style | SMT |
| Packing Method | TR, EMBOSSED, 15 INCH |
| Polarity | POLARIZED |
| Positive Tolerance | 20% |
| Rated (DC) Voltage (URdc) | 50 V |
| Reference Standard | AEC-Q200 |
| Ripple Current | 502.5 mA |
| Size Code | 4141 |
| Surface Mount | YES |
| Tan Delta | 0.1 |
| Terminal Finish | Tin/Bismuth (Sn/Bi) |
| Terminal Shape | FLAT |
| Width | 10.3 mm |

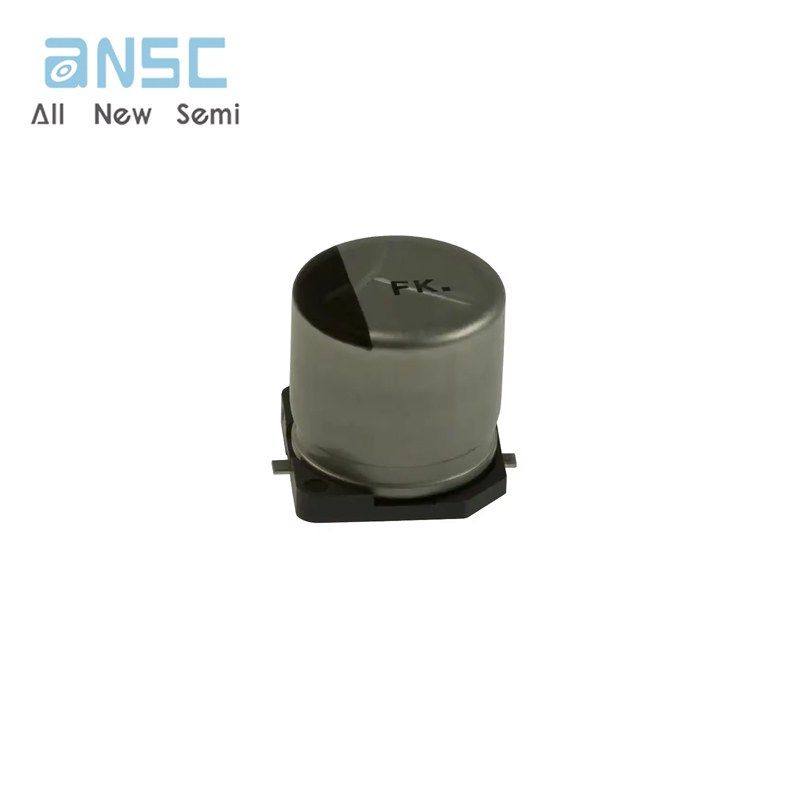

Actual image of the product
