Product Details
5 TERMINAL LOW DROPOUT VOLTAGE REGULATOR
power source with TO-220IS-4 terminal surface mount type PKG.
The Regulator has multi function such as over current protection, overheat protection and ON/OFF control.
FEATURES
• 1.0A Output Low Dropout Voltage Regulator.
• Built in ON/OFF Control Terminal.
• Built in Over Current Protection, Over Heat Protection Function.
Product Description
| Product Attribute | Attribute Value |
| Part# | Kia78r12pi |
| Manufacturer | / |
| Part Package | TO-220IS |
| Package Description | TO-220IS, 4 PIN |
| Pin Count | 3 |
| Dropout Voltage1-Max | 0.5 V |
| Input Voltage-Max | 29 V |
| Input Voltage-Min | 13 V |
| JESD-30 Code | R-XSFM-T4 |
| Load Regulation-Max | 0.24% |
| Number of Functions | 1 |
| Number of Terminals | 4 |
| Operating Temperature TJ-Max | 125 °C |
| Operating Temperature TJ-Min | |
| Output Current1-Max | 1 A |
| Output Voltage1-Max | 12.3 V |
| Output Voltage1-Min | 11.7 V |
| Output Voltage1-Nom | 12 V |
| Package Body Material | UNSPECIFIED |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Qualification Status | Not Qualified |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Voltage Tolerance-Max | 2.50% |

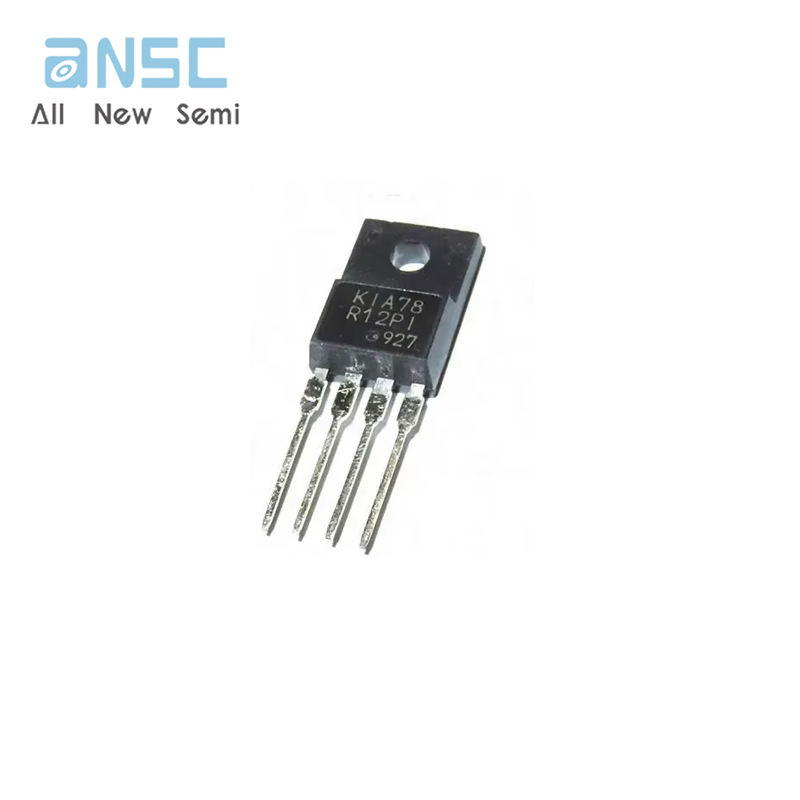

Actual image of the product

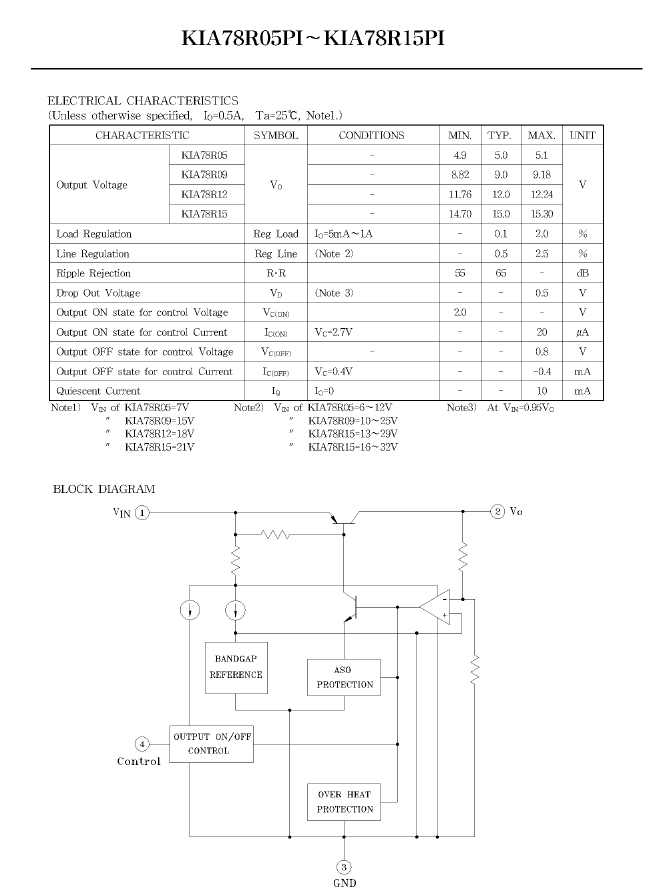

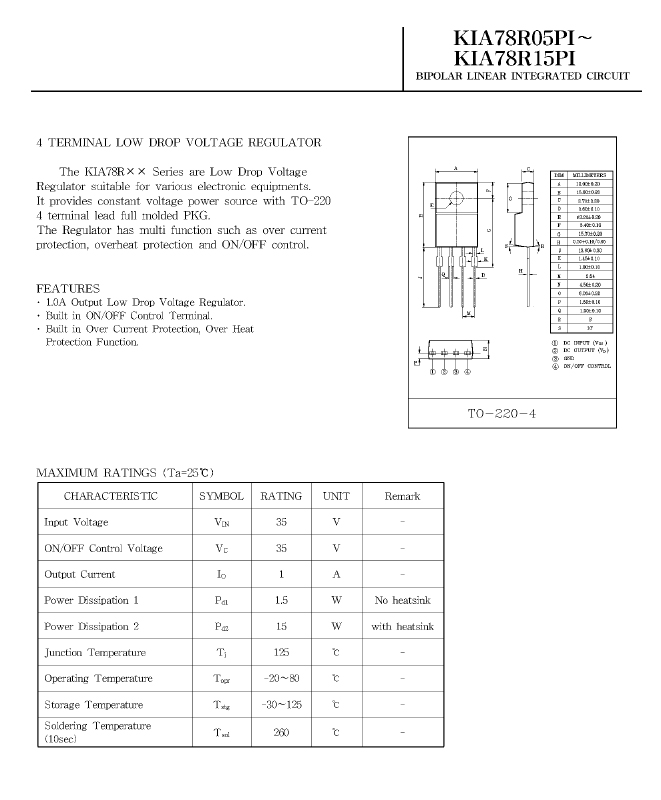

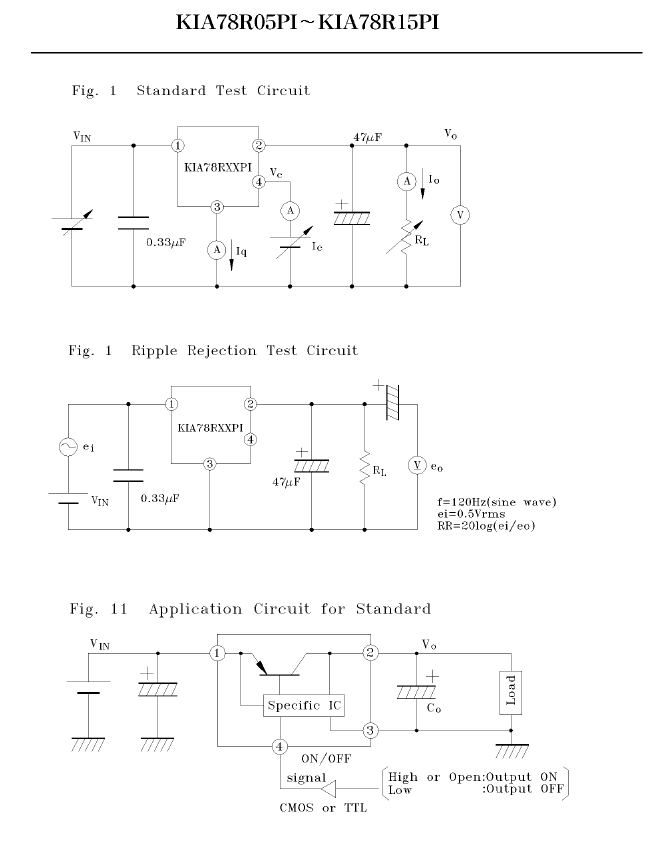

Product datasheet
For more information, please download
