Product Details
Brief Description:
The DE375-501N21A is a N-Channel Enhancement Mode MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) from IXYS Corporation.
It is a surface-mount device with a 6-SMD package and a flat lead exposed pad.
Features:
Maximum Gate Source Voltage: ±20V
Maximum Gate Threshold Voltage: 5.5V
Maximum Continuous Drain Current: 25A
Maximum Gate Source Leakage Current: 100nA
Maximum IDSS: 50uA
Maximum Drain Source Resistance: 350mOhm @ 15V
Typical Gate Charge: 70nC @ 10V
Typical Input Capacitance: 2500pF @ 400V
Typical Reverse Transfer Capacitance: 46pF @ 400V
Typical Output Capacitance: 170pF @ 400V
Maximum Power Dissipation: 4500mW
Typical Turn-Off Delay Time: 5ns
Typical Turn-On Delay Time: 5ns
Minimum Operating Temperature: -55°C
Maximum Operating Temperature: 175°C
Application Grade: The DE375-501N21A is designed for high-power, high-voltage applications, such as power supplies, motor drives,
and power converters.
Applications:
Power supplies
Motor drives
Power converters
High-voltage applications
High-power applications
Key Specifications:
Voltage Rating: 500V
Current Rating: 25A
Power - Output: 940W
Frequency: 50MHz
Transistor Type: N-Channel

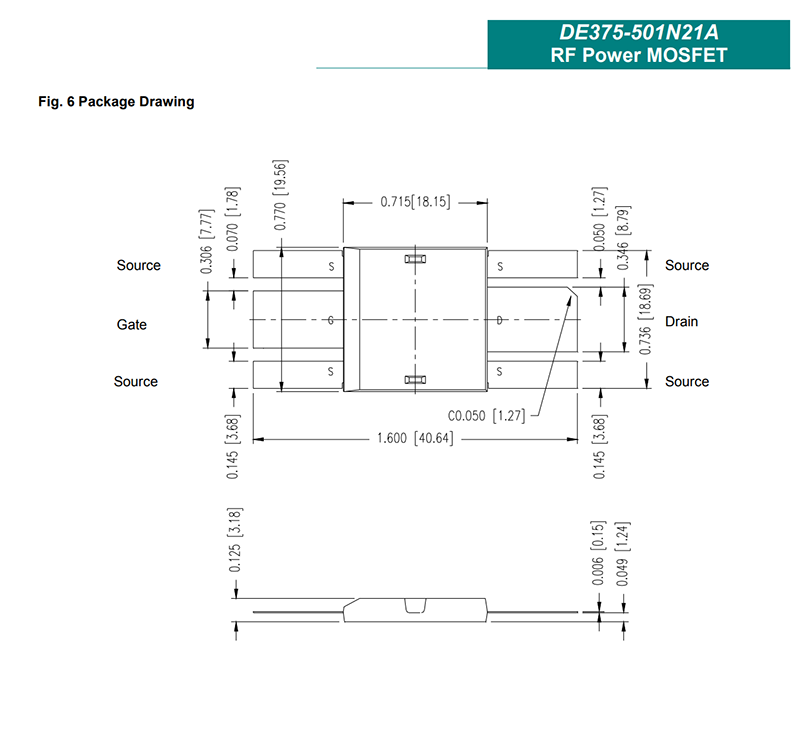

Package: 6-SMD, Flat Lead Exposed Pad
Package Height: 3.18mm
Package Length: 19.56mm
Package Width: 18.15mm
Pin Count: 6
Mounting: Surface Mount
Package / Case: 6-SMD, Flat Lead Exposed Pad
RoHS Status: RoHS Compliant
Pbfree Code: Yes
Rohs Code: Yes
Additional Information:
The DE375-501N21A is an obsolete product and is no longer in production.
It is not suitable for automotive or military applications.
It is RoHS compliant and Pbfree.
The manufacturer part number is DE375-501N21A, and the manufacturer is IXYS Corporation.
Product Description
| Type# | Description |
| ANSC PART# | ANSC- DE375-501N21A |
| Manufacturer | IXYS |
| Type： | Electronic components |
| Package Description | D4, 6 PIN |
| Pin Count | 6 |
| DC | new |
| Part Status | Active |

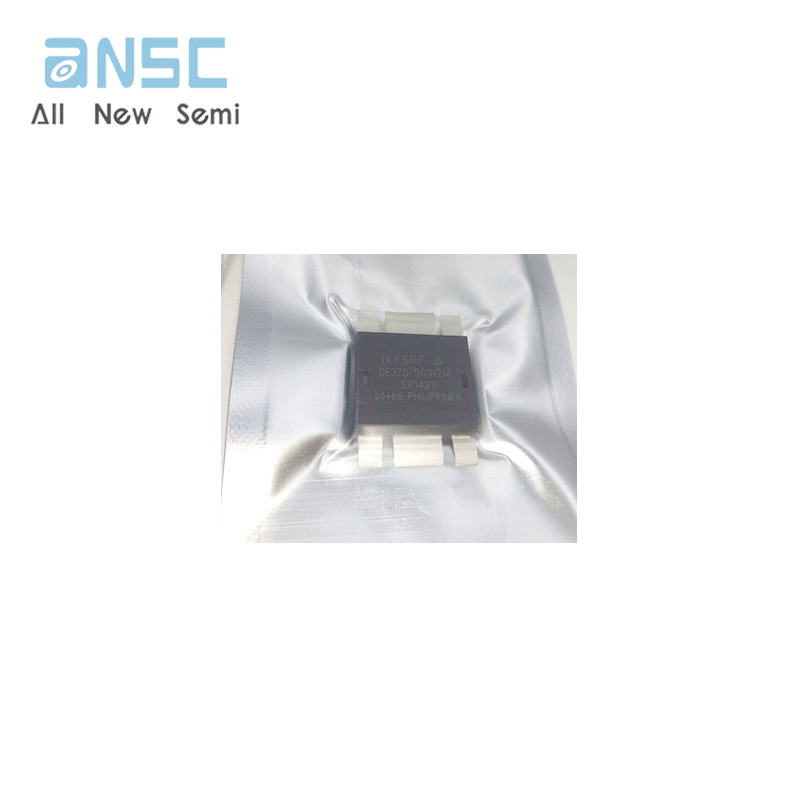

Product Photos

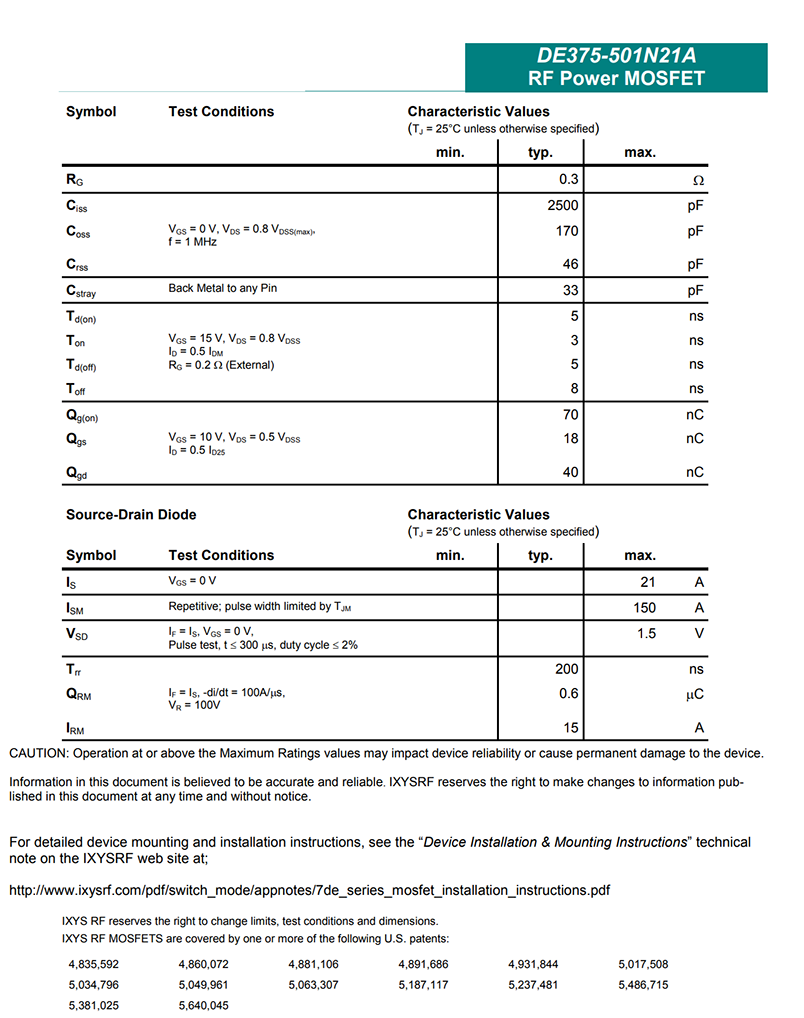

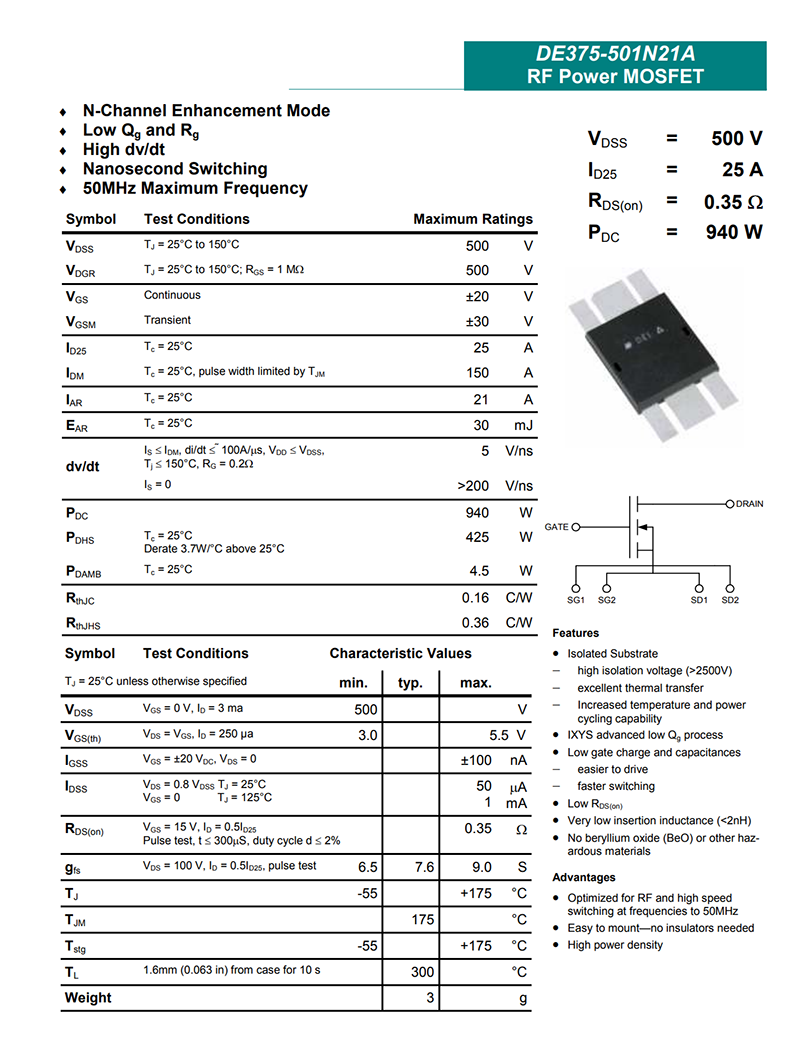

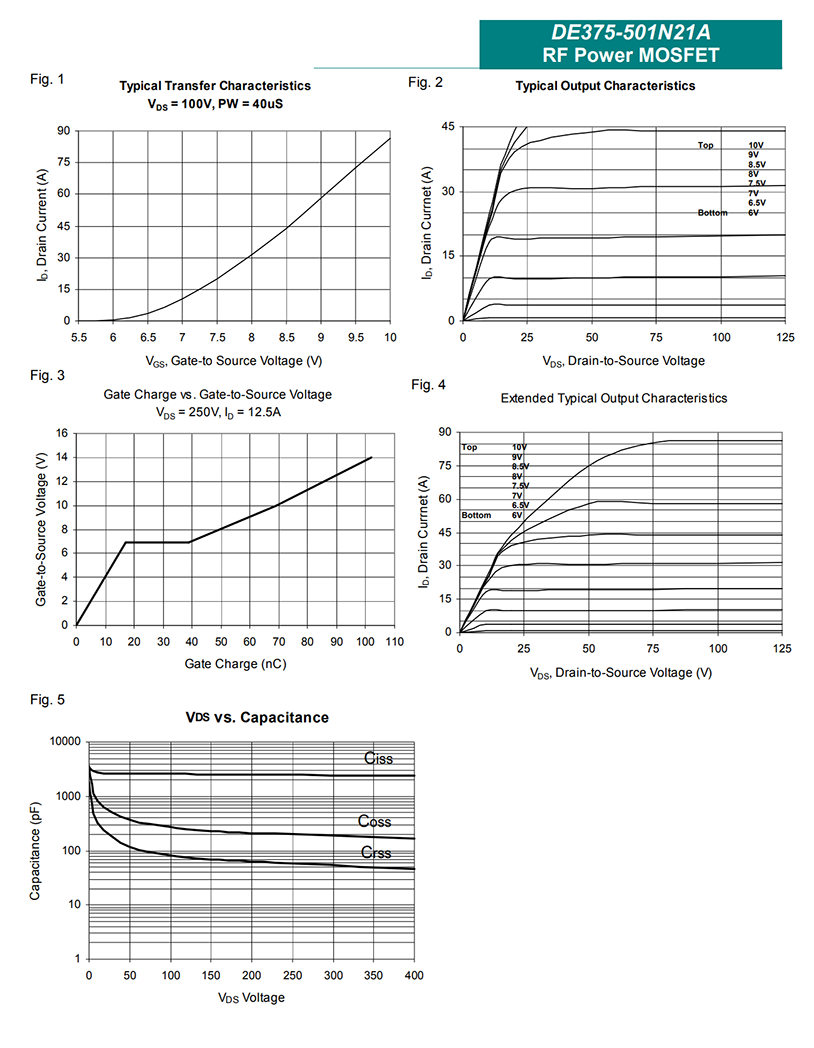

Product datasheet
