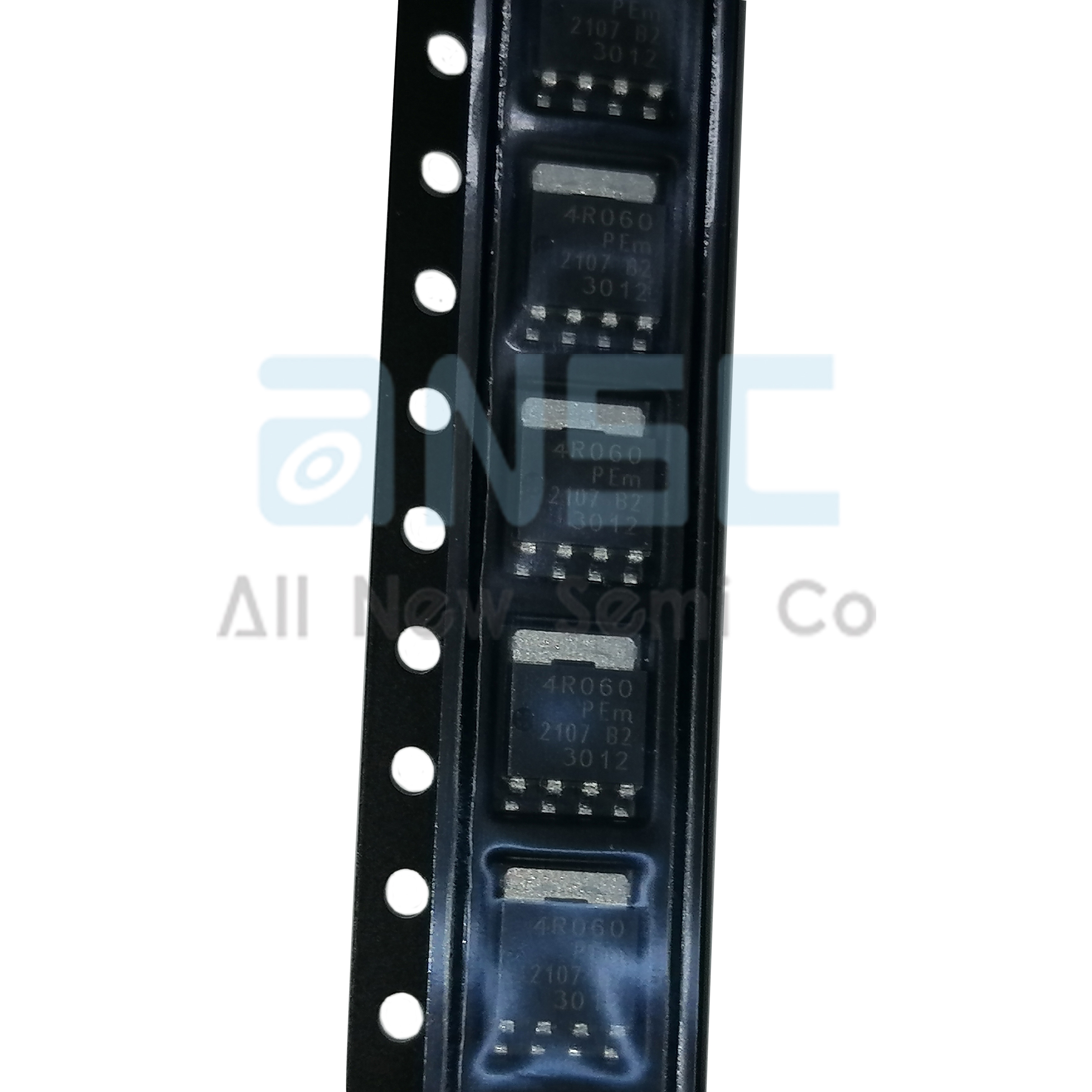

Image is only a reference

You can contact me for the best price electronic components BOM PSMN4R0-60YS N-channel LFPAK 60 V, 4.0 m standard level FET

PSMN4R0-60YS

Model:PSMN4R0-60YS

Manufacturer:Nexperia USA Inc.

Package:SC-100

Connector Type:N-channel LFPAK 60 V, 4.0 m standard level FET

Part#PSMN4R0-60YS

Detail

Product Overview



Attribute

Attribute value

Part#

PSMN4R0-60YS

Type

 Transistors

Manufactor

Nexperia USA Inc.

DC

new

Package / Case

SC-100, SOT-669

Supplier Device Package

Tape & Reel (TR) Cut Tape (CT)

Description

N-Channel 60 V 74A (Tc) 130W (Tc) Surface Mount LFPAK56, Power-SO8MOSFET N-CH 60V 74A LFPAK56


Product Specifications


TYPEDESCRIPTION
CategoryDiscrete Semiconductor ProductsTransistorsFETs, MOSFETsSingle FETs, MOSFETs
MfrNexperia USA Inc.
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C74A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs4mOhm @ 15A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs56 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3501 pF @ 30 V
FET Feature-
Power Dissipation (Max)130W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK56, Power-SO8
Package / CaseSC-100, SOT-669
Base Product NumberPSMN4R0

Product describe

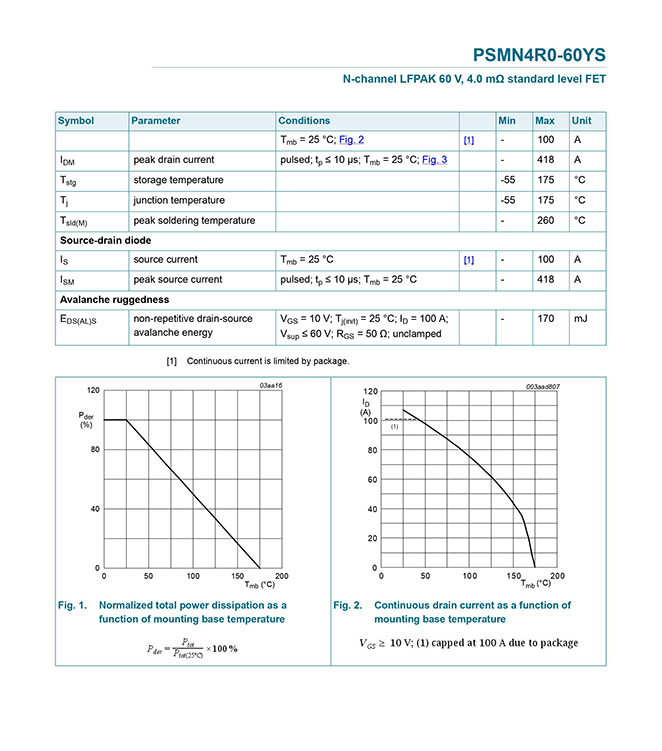

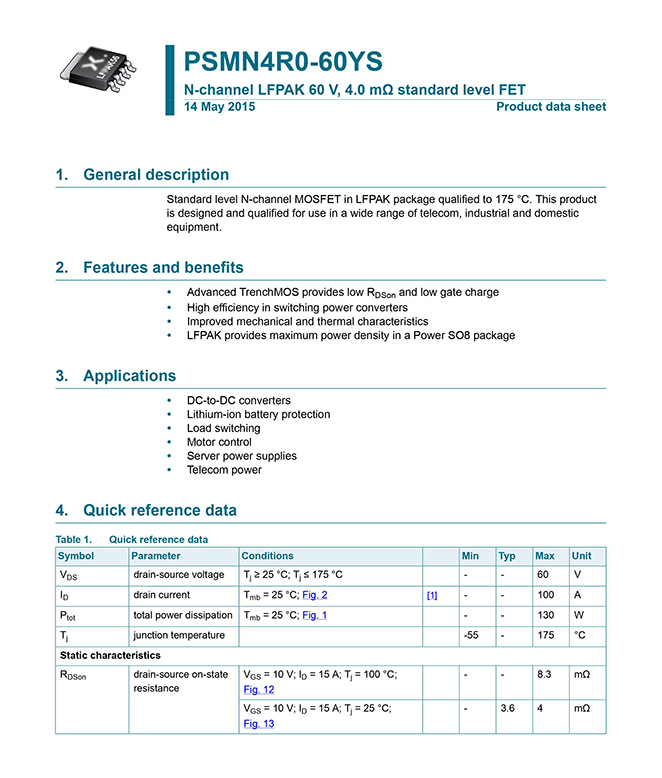

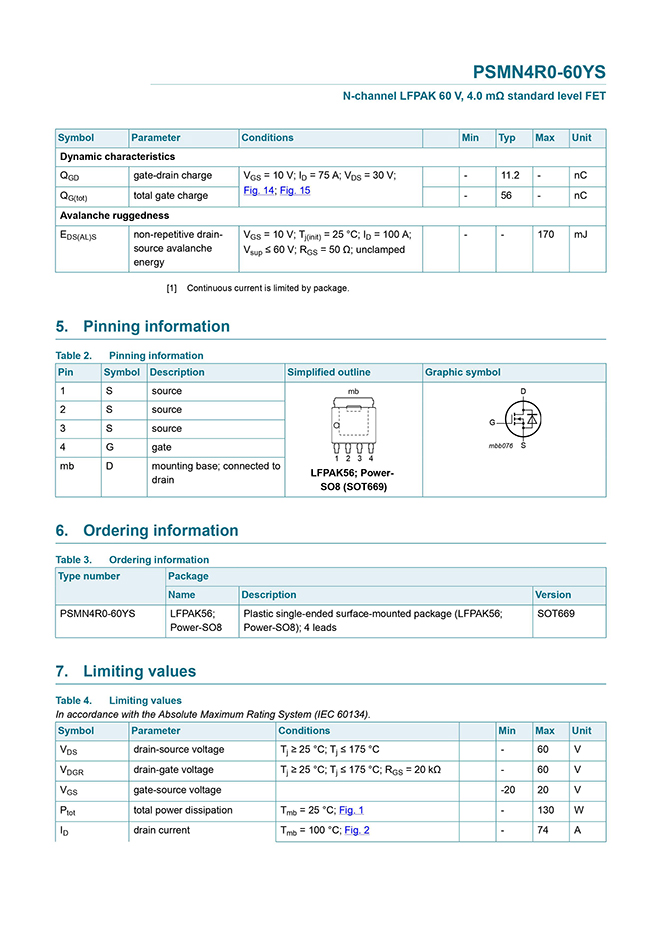

For more information, please download

PSMN4R0-60YS.PDF
