Product Details
ELXS251VSN122MR50S Overview
Ripple current at full charge is 4.56A @ 50kHz.It is 3.04A @ 120Hz at the lowest charge for ripple current.
Seating height (Max) should be kept below 2.067 52.50mm.Voltage - Rated DC - is 250V.
It is recommended that the operating temperature be kept at -25°C~105°C to achieve high efficiency.
ELXS251VSN122MR50S Features
the ripple current is 4.56A @ 50kHz.
theripple current is 3.04A @ 120Hz.
voltage - Rated DC of 250V
an operating temperature of -25°C~105°C
ELXS251VSN122MR50S Applications
ELXS251VSN122MR50S applications of aluminum electrolytic capacitors.
Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
Product Description
| Type# | Description |
| PART# | ELXS251VSN122MR50S |
| Category | Capacitors |
| Aluminum Electrolytic Capacitors | |
| Mfr |
/ |
| Series | LXS |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.04 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.56 A @ 50 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.067" (52.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |

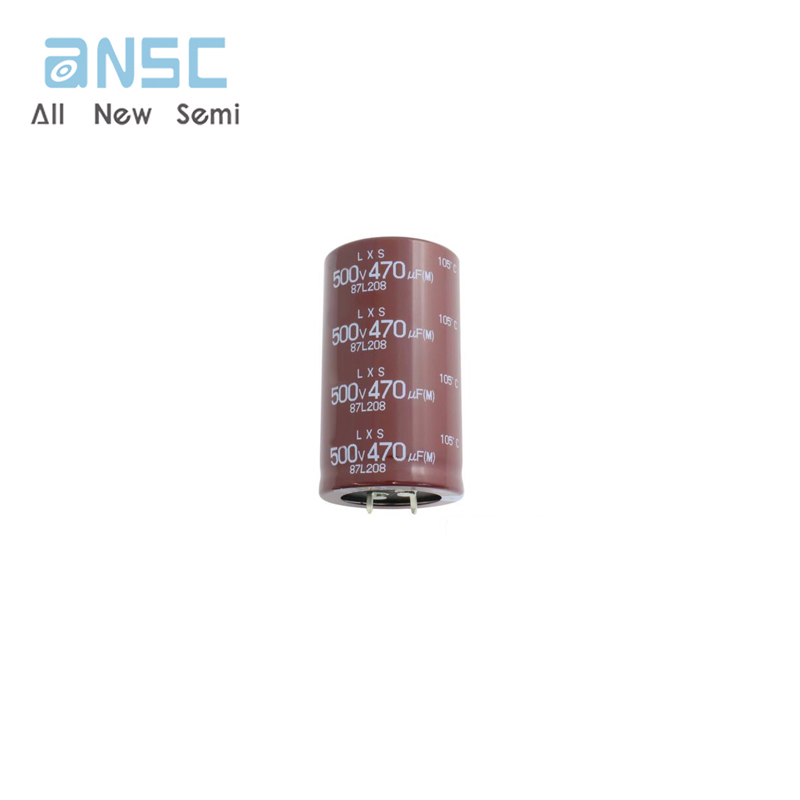

Actual image of the product
