Product Overview
Similarly, equivalent series resistance (ESR) is also known as internal resistance, as it represents the loss of useful energy in a simple electronic circuit consisting of a resistor and an ideal (perfect) capacitor.A capacitor like this leaks current 1μA.When AC is applied through a capacitor, its dissipation factor is 6 %, which indicates the power lost through it.
Product Features
a leakage current of 1μA in this capacitor
the dissipation factor is 6 %
Product Applications
TAJA106M010RNJ applications of tantalum capacitors
· Computer
· General purpose
· General low power DC/DC and LDO
· Automotive ECU
· ABS
· Airbag systems
· Avionics,
· Industrial control units
· Military / aerospace
· General purpose
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - TAJA106M010RNJ |
|
Category |
Capacitors Tantalum Capacitors |
|
Mfr |
/ |
|
Series |
TAJ |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Capacitance |
10 µF |
|
Tolerance |
±20% |
|
Voltage - Rated |
10 V |
|
Type |
Molded |
|
ESR (Equivalent Series Resistance) |
3Ohm |
|
Operating Temperature |
-55°C ~ 125°C |
|
Lifetime @ Temp. |
- |
|
Mounting Type |
Surface Mount |
|
Package / Case |
1206 (3216 Metric) |
|
Size / Dimension |
0.126" L x 0.063" W (3.20mm x 1.60mm) |
|
Height - Seated (Max) |
0.071" (1.80mm) |
|
Lead Spacing |
- |
|
Manufacturer Size Code |
A |
|
Features |
General Purpose |
|
Failure Rate |
- |

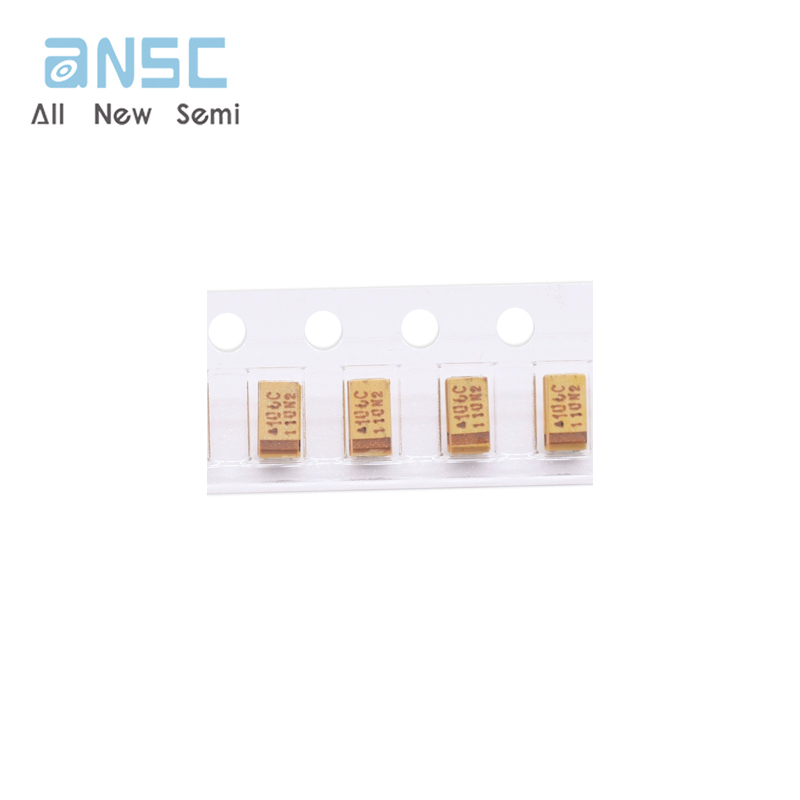

Actual image of the product

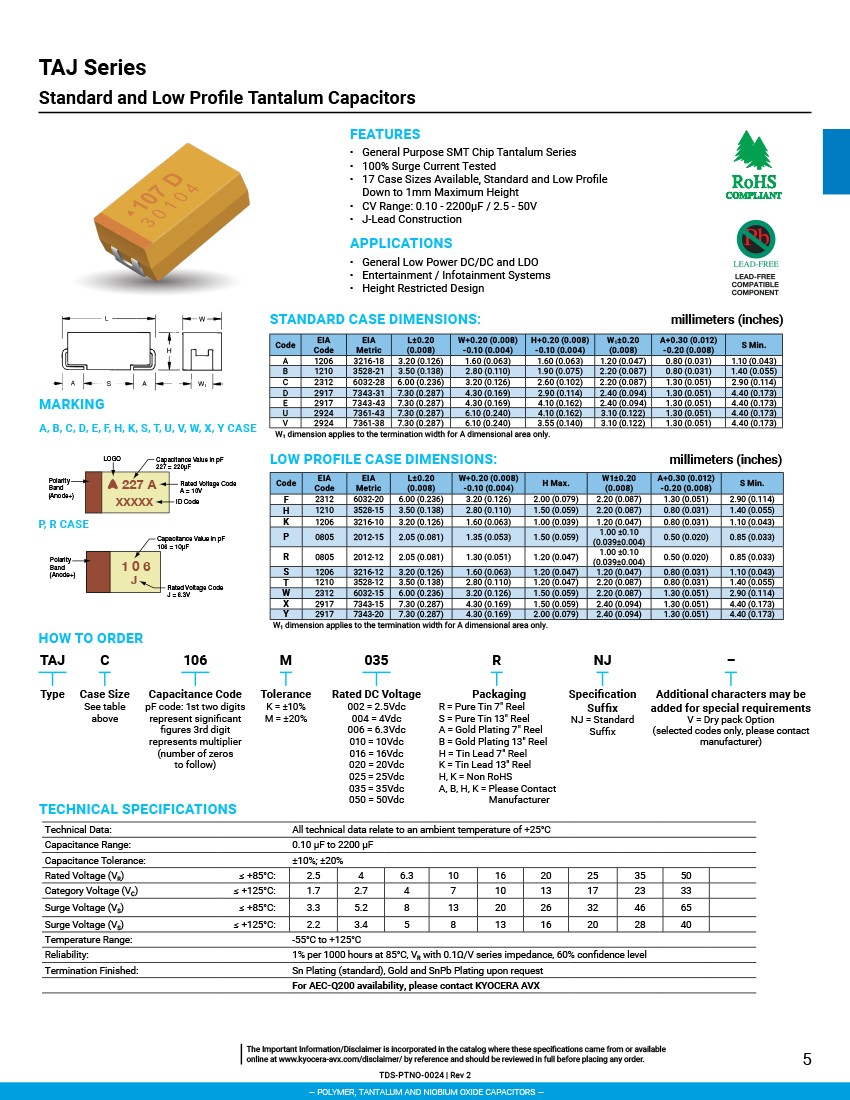

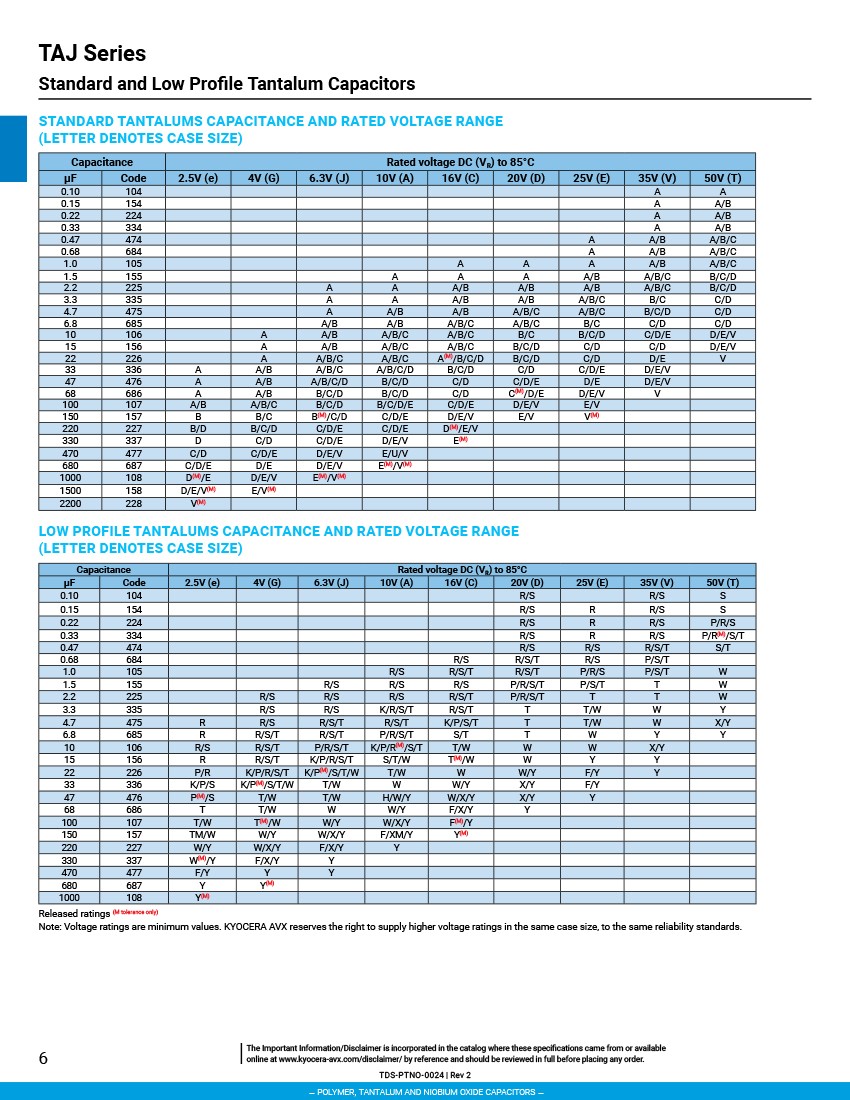

Product datasheet
For more information, please download
