Product Details
The 2N2905A is a high-performance, lead-free, through-hole mounted, single PNP bipolar junction transistor (BJT). This device is designed for switching applications and features a high current rating of 600mA, making it suitable for a wide range of applications.
Product Features
High current rating of 600mA
High frequency operation up to 200MHz
Low collector-emitter saturation voltage of 1.6V
High DC current gain (hFE) of 100 at 150mA and 10V
Lead-free and RoHS3 compliant
Through-hole mounting for easy installation
Single PNP configuration for simplicity and reliability
Product Applications
Switching applications in automotive, industrial, and consumer electronics
Power supply and power amplifier applications
High-frequency switching applications in telecommunications and data communication systems
Product Description
|
Type |
Description |
|---|---|
| ANSC PART# | ANSC - 2N2905A |
|
Category |
Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors |
|
Mfr |
/ |
|
Series |
- |
|
Packaging |
Tube |
|
Part Status |
Obsolete |
|
Transistor Type |
PNP |
|
Current - Collector (Ic) (Max) |
600 mA |
|
Voltage - Collector Emitter Breakdown (Max) |
60 V |
|
Vce Saturation (Max) @ Ib, Ic |
1.6V @ 50mA, 500mA |
|
Current - Collector Cutoff (Max) |
10nA (ICBO) |
|
DC Current Gain (hFE) (Min) @ Ic, Vce |
100 @ 150mA, 10V |
|
Power - Max |
600 mW |
|
Frequency - Transition |
200MHz |
|
Operating Temperature |
175°C (TJ) |
|
Mounting Type |
Through Hole |
|
Package / Case |
TO-205AD, TO-39-3 Metal Can |
|
Supplier Device Package |
TO-39 |
|
Base Product Number |
2N29 |

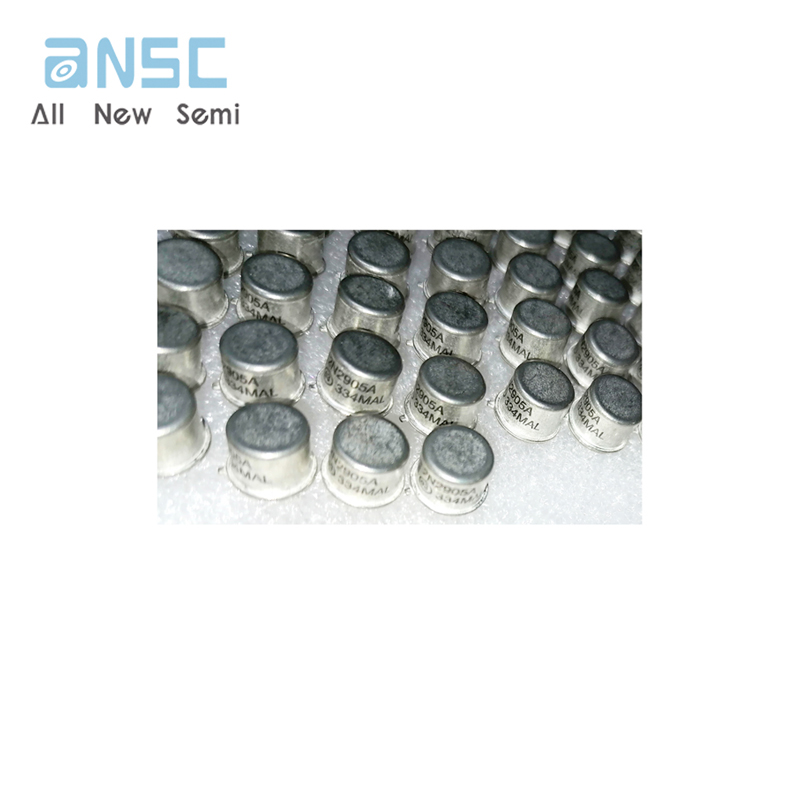

Actual image of the product

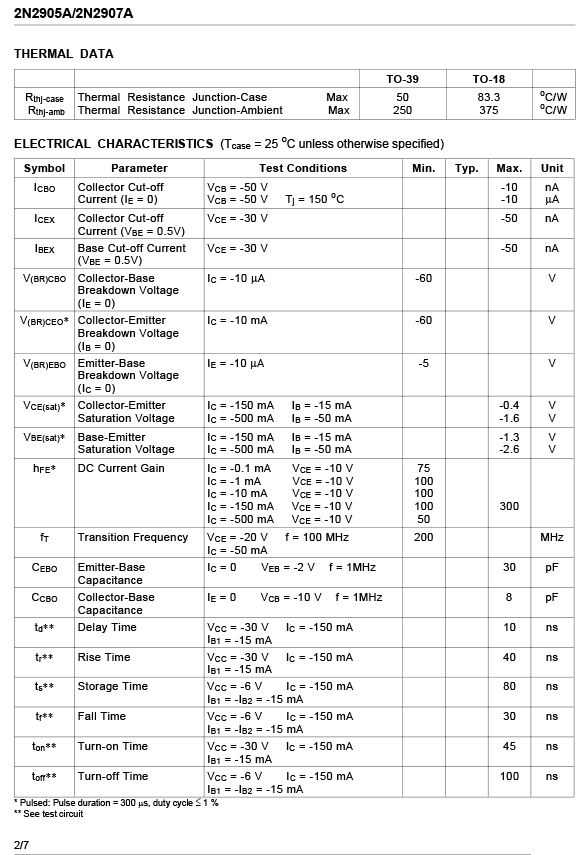

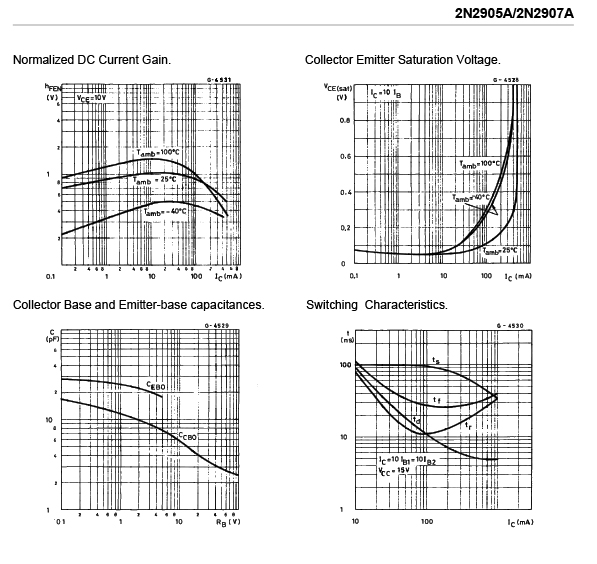

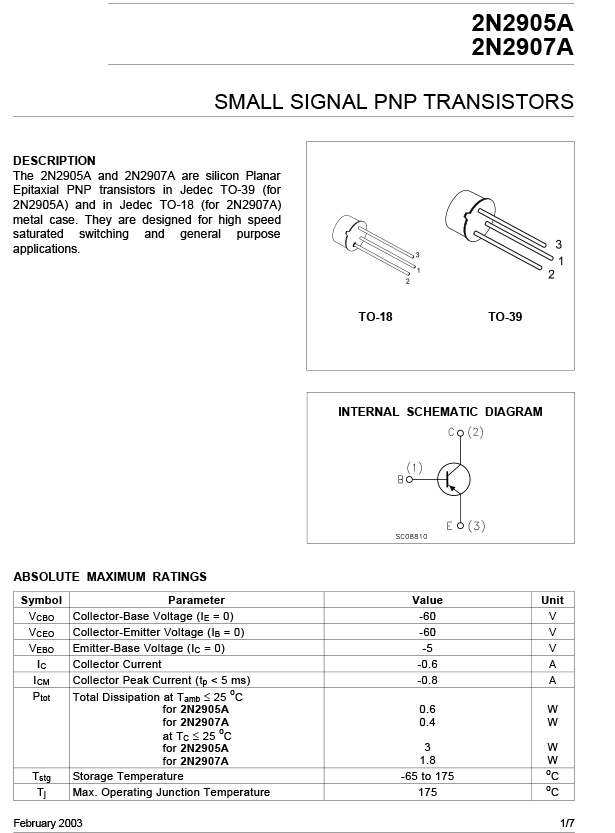

Product datasheet
For more information, please download
