Product Details
|

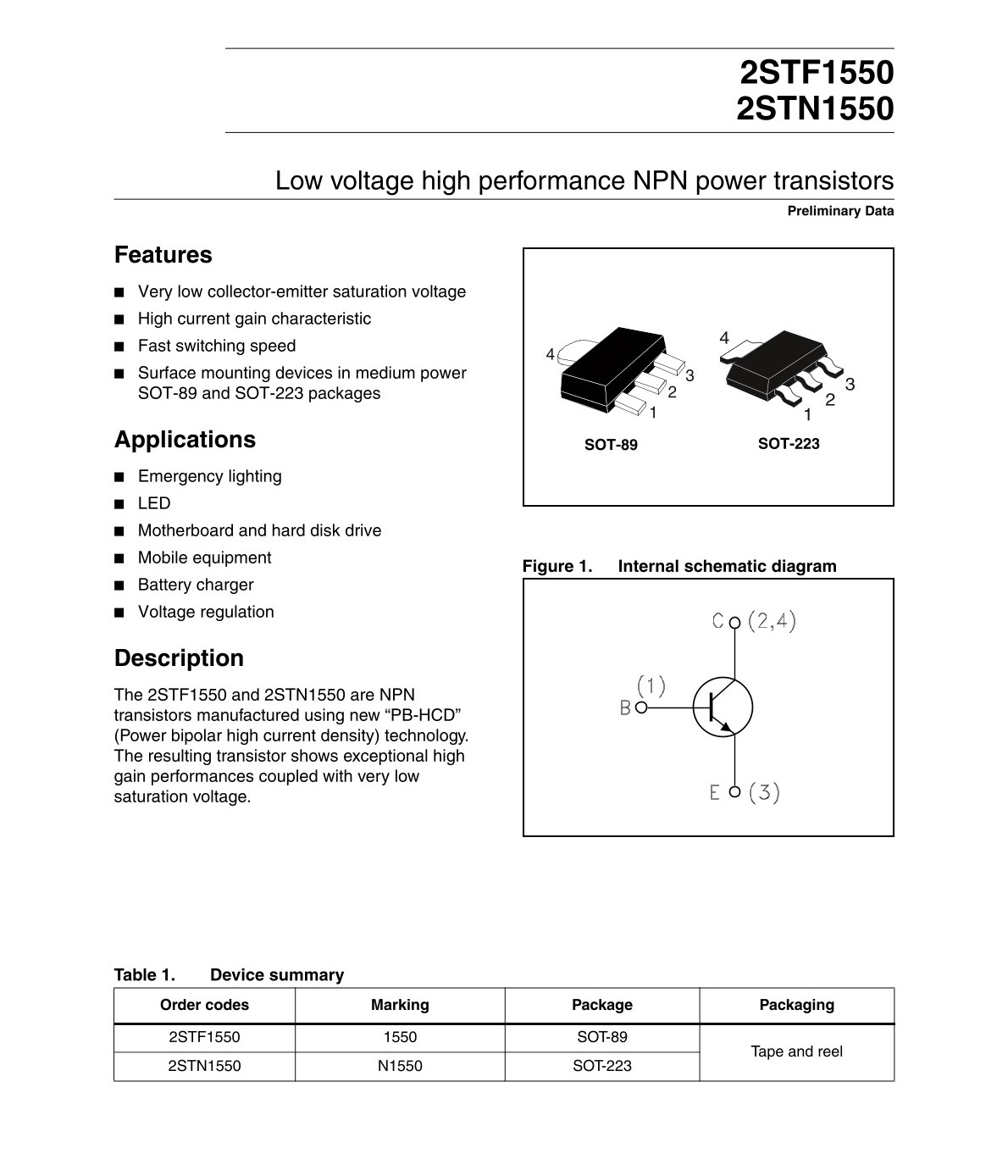

Description The 2STF1550 and 2STN1550 are NPN transistors manufactured using new “PB-HCD” (Power Bipolar High Current Density) technology. The resulting transistor shows exceptional high gain performances coupled with very low saturation voltage. General features ■ Very low collector-emitter saturation voltage ■ High current gain characteristic ■ Fast switching speed ■ Surface mounting devices in medium power SOT-89 and SOT-223 packages ■ In compliance with the 2002/93/EC European Directive Applications ■ Emergency lighting ■ LED ■ Motherboard & Hard Disk drive ■ Mobile equipment ■ Battery charger ■ Voltage regulation |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-2STF1550 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Obsolete |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 5 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 450mV @ 300mA, 3A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 135 @ 2A, 2V |
| Power - Max | 1.4 W |
| Frequency - Transition | - |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89-3 |
| Base Product Number | 2STF15 |

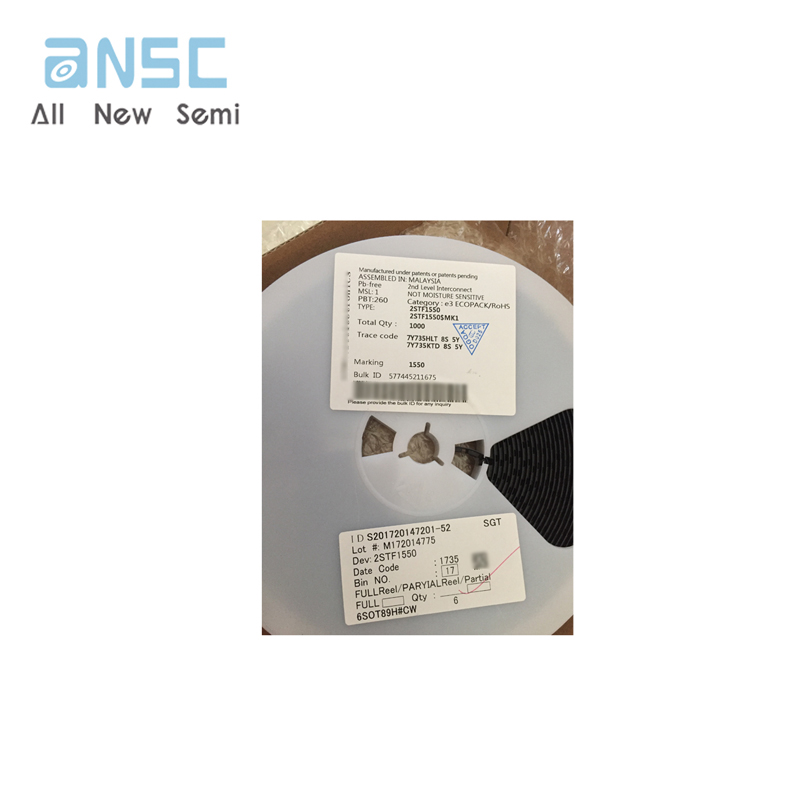

Actual image of the product

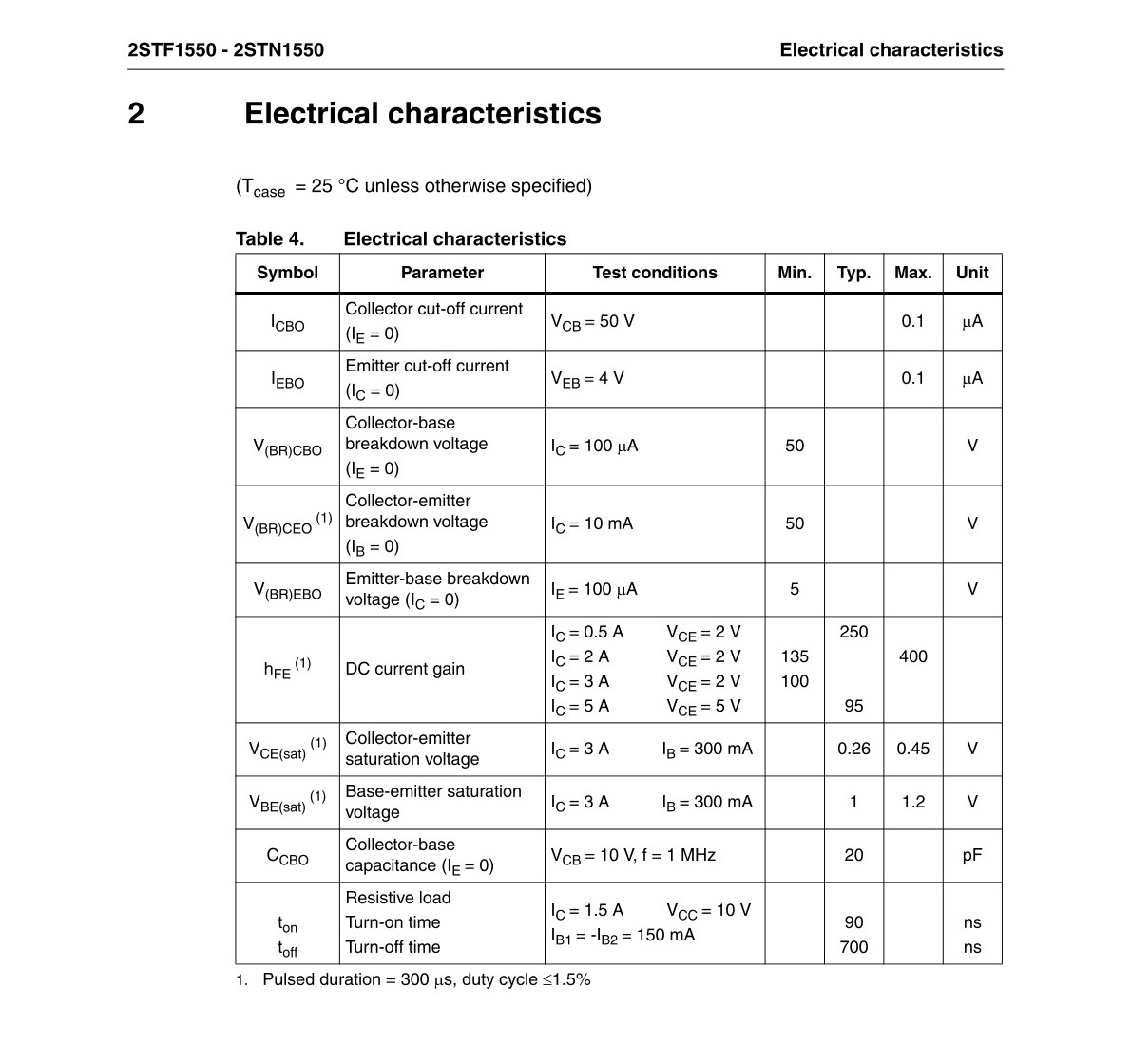

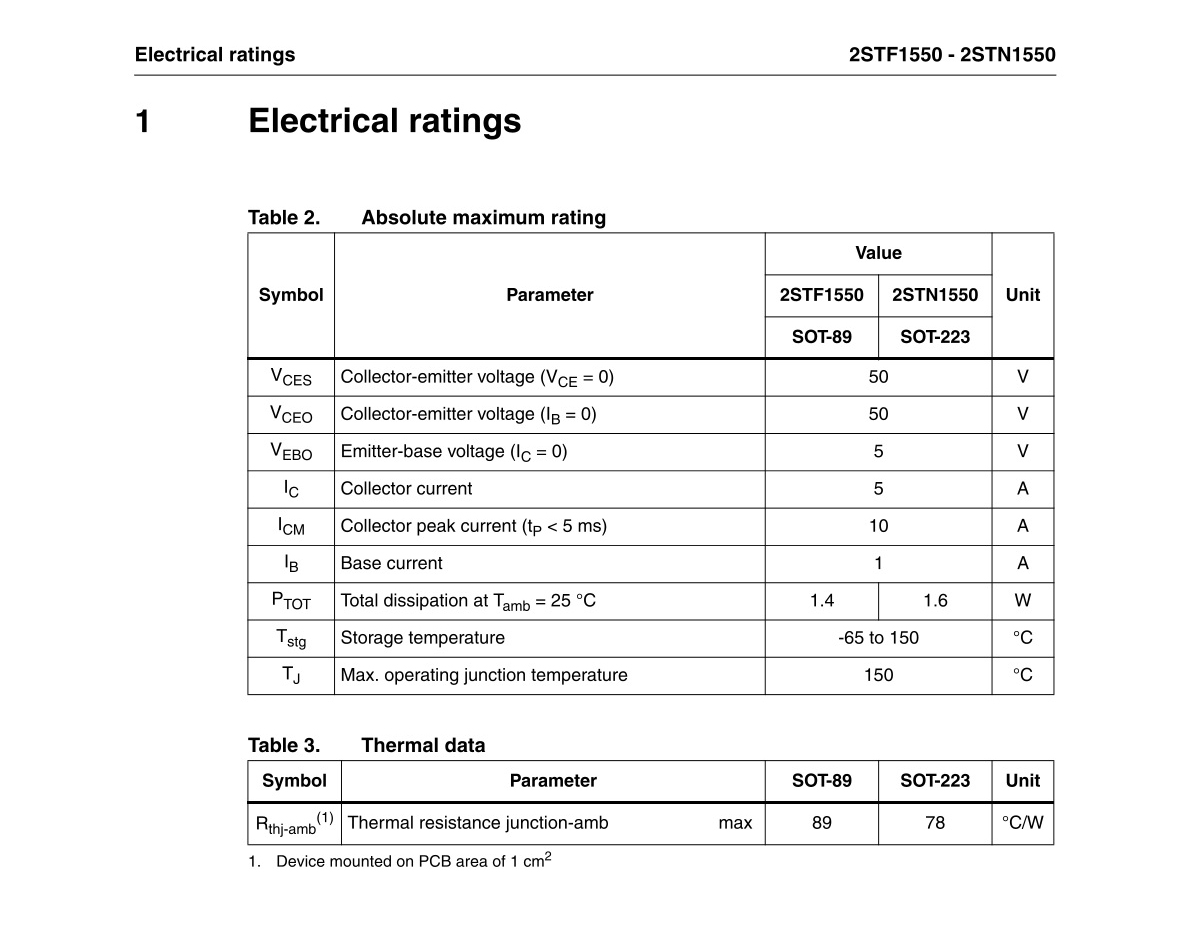

Product datasheet
For more information, please download
