These chip type LEDs utilize Aluminium Indium Galium Phosphide (AlInGaP) material technology. The AlInGaP material has a very high luminous efficiency, capable of producing high light output over a wide range of drive currents. The available colors in this surface mount series are 592 nm Amber, 605 nm Orange, 626 nm Red and 639 nm Deep Red.
Features
• High brightness AlInGaP material
• 0805 or 0603 industry standard footprint with 0.4 mm height for top emitting packages
• Also available in right angle emitting and reverse mounting packages
• Diffused optics
• Operating temperature range of –40°C to +85°C
• Compatible with IR soldering
• Available in 4 colors
• Available in 8 mm tape on 7" diameter reel
• Reel sealed in zip locked moisture barrier bags
Applications
• Membrane switch indicator
• LCD backlighting
• Push button backlighting
• Front panel indicator
• Symbol backlighting
• Keypad backlighting
• Microdisplays
• Small message panel signage
Product Description
|
Type |
Description |
|---|---|
|
Category |
Optoelectronics LED Indication - Discrete |
|
Mfr |
Original |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Color |
Amber |
|
Configuration |
Standard |
|
Lens Color |
White |
|
Lens Transparency |
Diffused |
|
Millicandela Rating |
90mcd |
|
Lens Style |
Rectangle with Flat Top |
|
Lens Size |
1.00mm x 1.60mm |
|
Voltage - Forward (Vf) (Typ) |
1.9V |
|
Current - Test |
20mA |
|
Viewing Angle |
170° |
|
Mounting Type |
Surface Mount |
|
Wavelength - Dominant |
592nm |
|
Wavelength - Peak |
595nm |
|
Features |
- |
|
Package / Case |
0603 (1608 Metric) |
|
Supplier Device Package |
Chip LED |
|
Size / Dimension |
1.60mm L x 0.80mm W |
|
Height (Max) |
0.60mm |
|
Base Product Number |
HSMA-C191 |

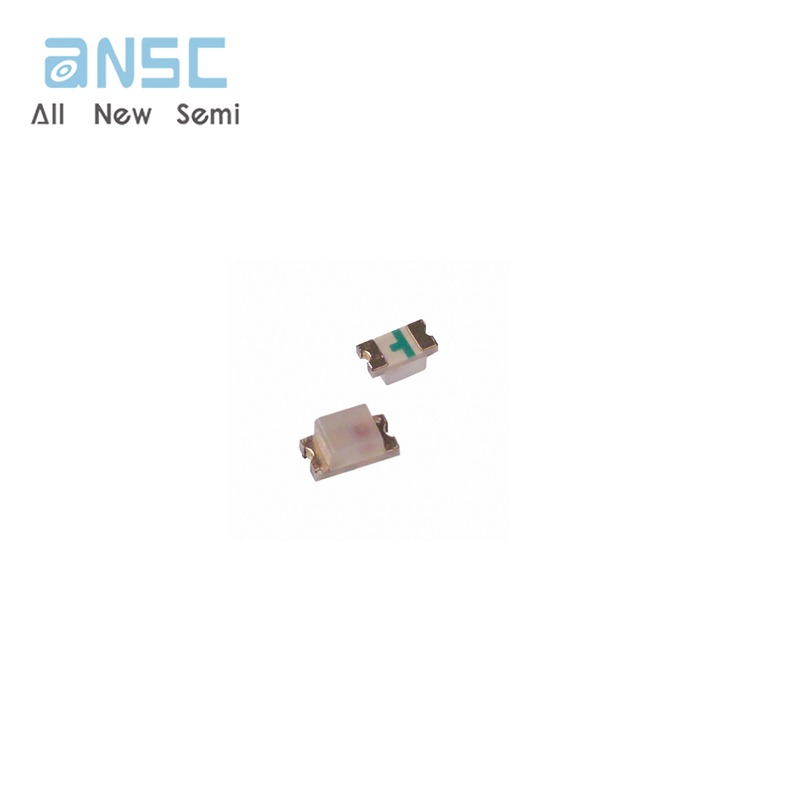

Product images
