Product Introduction

EM78P468B is an 8-bit microcontroller designed and developed using low-power high-speed CMOS technology. This chip integrates WDT, RAM, ROM, programmable real-time clock counter, internal/external interrupts, power-saving mode, LCD driver, infrared emission function, and tri state I/O port. It has a 4KX13 bit one-time programmable memory (OTP-ROM) inside. It provides multiple layers of protection bits to prevent users from reading programs in the OTP storage code space, with 7 code option bits to meet the needs of users to set code options, and especially provides a 13 bit user ID option at the same time.

EM78468B has enhanced Mask ROM features, making it convenient for users to develop and validate programs. In addition, using development programming tools, OTP microcontrollers have the advantage of simple and efficient code updates. Users can easily burn development code using Yilong's burner.

   Product Features

CPU configuration

4K x 13 bit on-chip OTP-ROM

144 byte general-purpose register

128 byte on-chip RAM

272 byte SRAM

144 byte general-purpose register

128 byte on-chip data RAM

8-level stack for nested subroutines

Power on voltage detection: 1.7  0.1V (EM78P468B)

I/O port structure

Usually there are 12 bidirectional tri state I/O ports

16 bidirectional tri state I/O ports shared with LCD segment output

28 bidirectional tri state I/O ports

Operating voltage and temperature range

EM78P468B

Commercial grade: 2.1 V~5.5 V (0 ° C~+70 ° C)

Industrial grade: 2.3V~5.5 V (-40 ° C~+85 ° C)

Working mode:

Normal mode: CPU operates at the main frequency (Fm)

Low speed mode: The CPU operates on the secondary frequency (Fs), while the main frequency (Fm) stops oscillating

Idle mode: CPU idle, but LCD driver still working

Sleep mode: The entire chip stops working

Wake up function from idle and sleep mode for input ports (Port 6, Port 8)

Operating frequency: DC~10MHz clock input

Dual clock working mode

Oscillation mode

High frequency oscillator can choose one mode from crystal oscillator, RC or PLL (phase-locked loop) mode

Low frequency oscillator can choose between crystal oscillator or RC mode

    Specifications

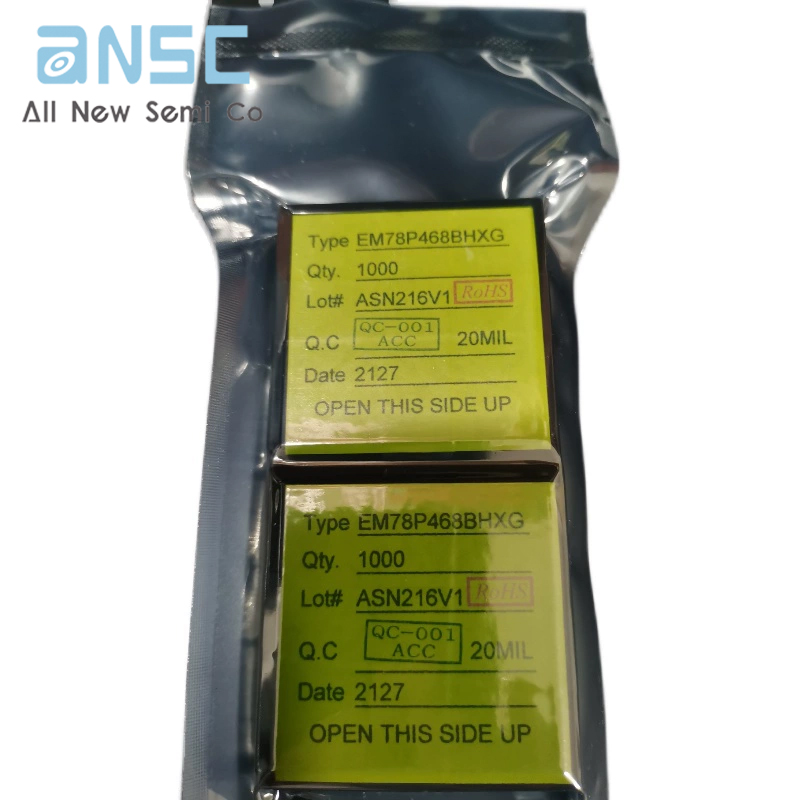

    Actual product photos
