Product Overview
Packaging is Receptacle, Female Sockets.This device has a Through Hole, Right Angle mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the AMPLIMITE HD-22 Series.There are 2 pins on the device.A variety of tasks can be performed using its 1 ports.There is a mounting hole at Through Hole.Devices operate at -55°C~105°C operating temperatures.
Product Features
AMPLIMITE HD-22 series
Product Applications
1-1734530-3 D-Sub Connectors applications.
-
Instrumentation
-
Automotive Electronics
-
Telecommunications
-
Data Technology
-
Blowers
-
Control panels
-
Electrical substations
-
Energy efficient lighting (LED)
-
LED municipal outdoor and street lighting
-
All Electrical Machinery
Product Description
|
Type |
Description |
|---|---|
|
PART# |
1-1734530-3 |
|
Category |
Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies |
|
Mfr |
/ |
|
Series |
AMPLIMITE HD-22 |
|
Packaging |
Bulk |
|
Part Status |
Obsolete |
|
Connector Style |
D-Sub, High Density |
|
Connector Type |
Receptacle, Female Sockets |
|
Number of Positions |
15 |
|
Number of Rows |
3 |
|
Mounting Type |
Through Hole, Right Angle |
|
Shell Size, Connector Layout |
1 (DE, E) High Density |
|
Contact Type |
Signal |
|
Flange Feature |
Housing/Shell (4-40) |
|
Termination |
Solder |
|
Shell Material, Finish |
Steel, Nickel Plated |
|
Contact Finish |
Gold |
|
Contact Finish Thickness |
30.0µin (0.76µm) |
|
Ingress Protection |
- |
|
Material Flammability Rating |
UL94 V-0 |
|
Current Rating (Amps) |
2A |
|
Backset Spacing |
0.350" (8.89mm) |
|
Features |
Board Lock |
|
Voltage Rating |
125V |
|
Color |
Black |
|
Contact Form |
- |
|
Dielectric Material |
Polyamide (PA9T), Nylon 9T |
|
Wire Gauge |
- |
|
Contact Material |
Phosphor Bronze |
|
Operating Temperature |
-55°C ~ 105°C |
|
Base Product Number |
1734530 |

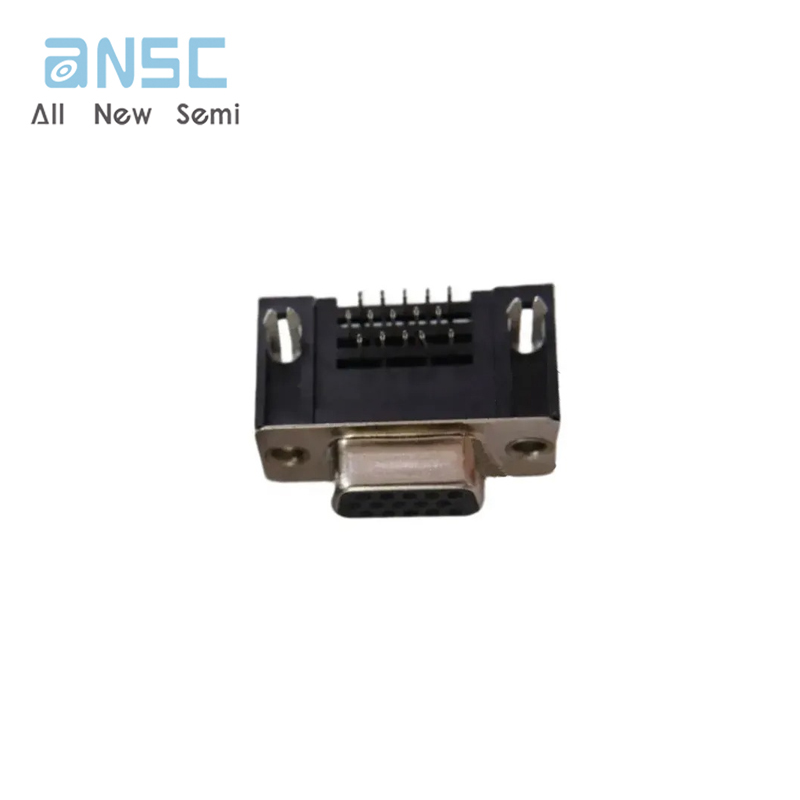

Actual image of the product
