Product Description
10.4 inch LCD screen AA104SG04 high light top resolution ratio sun visuble LCD
display color:262K/16.7M(6-bit+Hi-FRC)
tube location:side into type(top and bottom)
light source type:CCFL
tube quantity:2 pcs
tube shape:straight
interface type: terminals
backlight circuit:no
signal type(large):LVDS
signal type(small): LVDS (1 ch, 6/8-bit)
interface type: terminals
interface quantity:1 pcs
interface feet numbers:20 pins
| pixel rank | RGB straight strip |
| point spacing | 0.088×0.264 mm(cross*vertical) |
| aspect spacing | 0.264×0.264 mm(cross*vertical) |
| display area | 211.2×99.36 mm (cross*vertical) |
| viewing area | 179.84×158.4 mm (cross*vertical) |
| outer size | 215.4×161.8 mm(cross*vertical) |
| touch screen | no |
| display mode | TN,in white,transmission type |

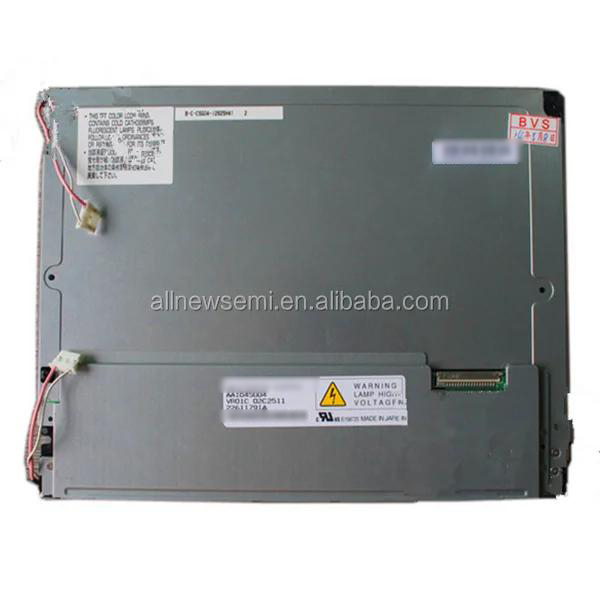

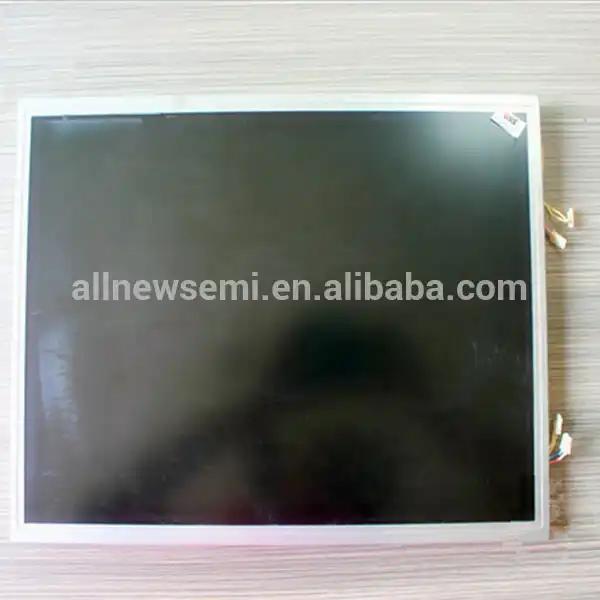

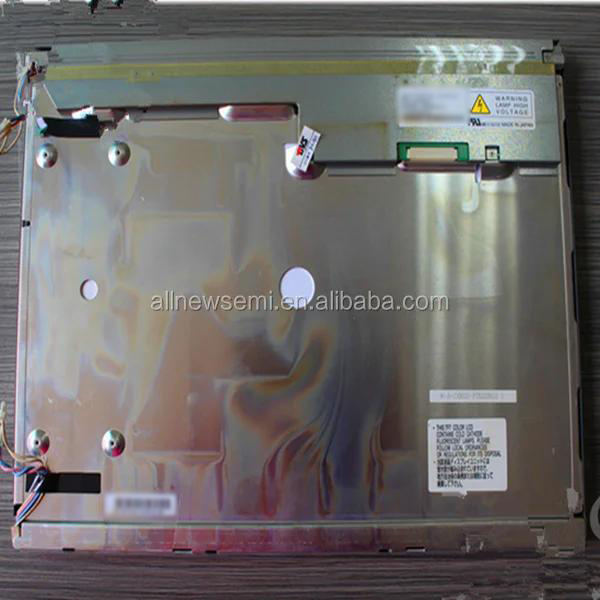

Actual image of the product
