Product Details
| Attribute | Attribute value |
|---|---|

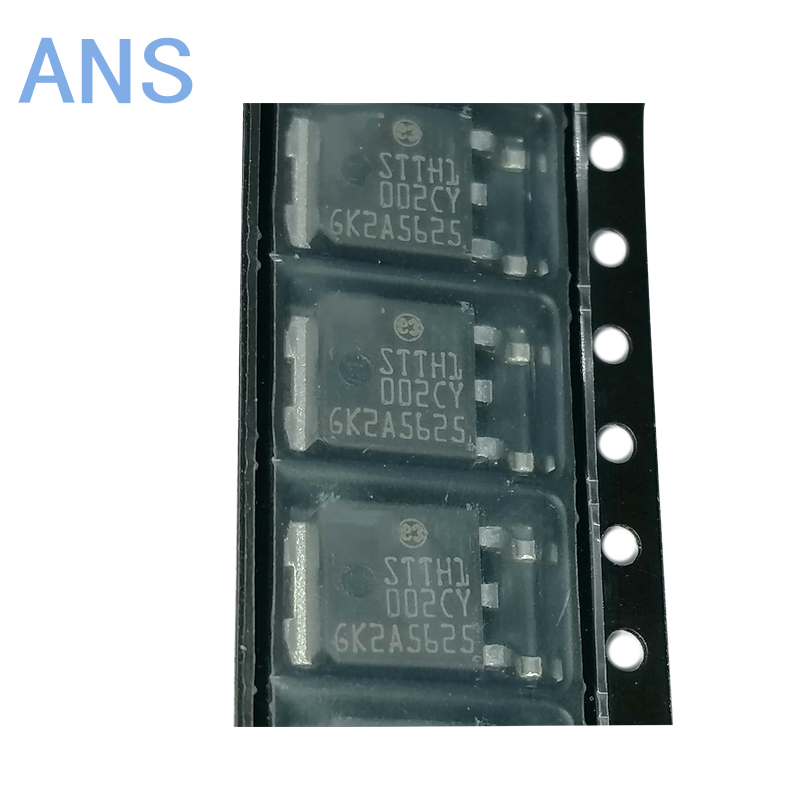

| ANSM-Part# | ANSM-STTH1002CBY-TR |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Mfr | / |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) (per Diode) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Base Product Number | STTH1002 |
