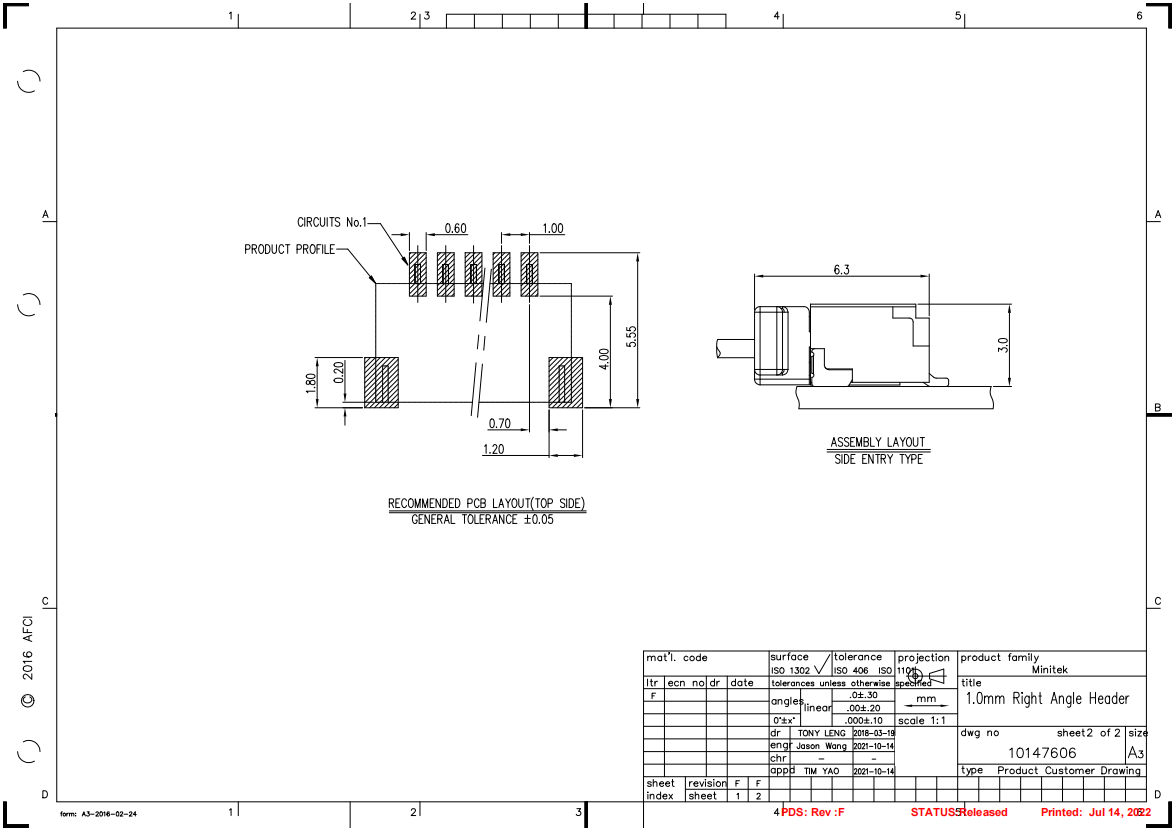

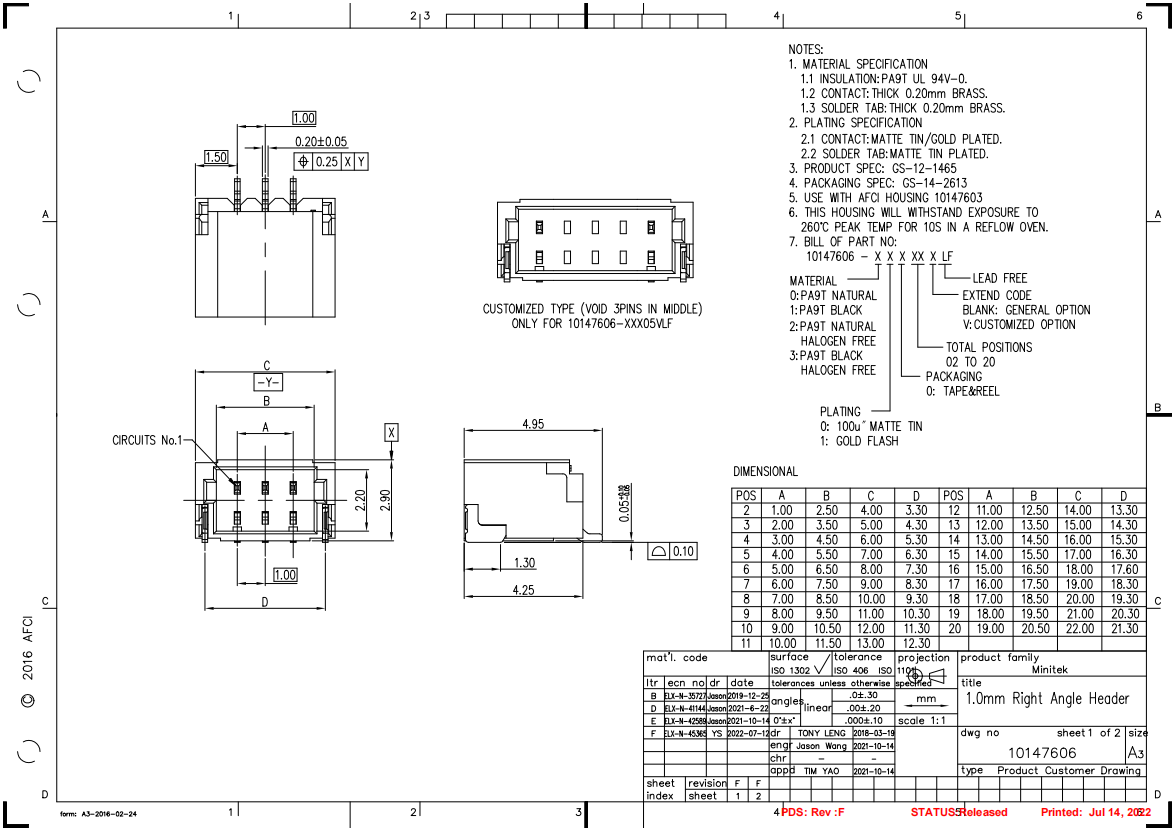

Product SPECIFICATION
1.MATERIAL SPECIFICATION
1.1 INSULATION:PA9T UL 94V-0
1.2 CONTACT:THICK 0.20mm BRASS
1.3 SOLDER TAB:THICK 0.20mm BRASS
2.PLATING SPECIFICATION
2.1 CONTACT:MATTE TIN/GOLD PLATED
2.2 SOLDER TAB:MATTE TIN PLATED.
3.PRODUCT SPEC:GS-12-1465
4.PACKAGING SPEC: GS-14-2613
5.USE WTH AFCI HOUSING 10147603
6.THIS HOUSING WLL WITHSTAND EXPOSURE TO260C PEAK TEMP FOR 10S IN A REFLOW OVEN.
7.BILL OF PART NO:
Specifications
|
Attribute |
Attribute value |
|
ANSM-Part# |
ANSM-10147606-00009LF |
|
Category |
Connectors, Interconnects |
|
Rectangular Connectors |
|
|
Headers, Male Pins |
|
|
Mfr |
Amphenol ICC (FCI) |
|
Series |
Minitek®1.00mm |
|
Package |
Tape & Reel (TR) |
|
Cut Tape (CT) |
|
|
/ |
|
|
Product Status |
Active |
|
Connector Type |
Header |
|
Contact Type |
Male Pin |
|
Pitch - Mating |
0.039" (1.00mm) |
|
Number of Positions |
9 |
|
Number of Rows |
1 |
|
Row Spacing - Mating |
- |
|
Number of Positions Loaded |
All |
|
Style |
Board to Cable/Wire |
|
Shrouding |
Shrouded - 4 Wall |
|
Mounting Type |
Surface Mount, Right Angle |
|
Termination |
Solder |
|
Fastening Type |
Push-Pull |
|
Contact Length - Mating |
- |
|
Contact Length - Post |
- |
|
Overall Contact Length |
- |
|
Insulation Height |
0.114" (2.90mm) |
|
Contact Shape |
Rectangular |
|
Contact Finish - Mating |
Tin |
|
Contact Finish Thickness - Mating |
- |
|
Contact Finish - Post |
Tin |
|
Contact Material |
Brass |
|
Insulation Material |
Polyamide (PA9T), Nylon 9T |
|
Features |
Solder Retention |
|
Operating Temperature |
-25°C ~ 85°C |
|
Ingress Protection |
- |
|
Material Flammability Rating |
UL94 V-0 |
|
Insulation Color |
Natural |
|
Current Rating (Amps) |
1A |
|
Voltage Rating |
50VAC |
|
Mated Stacking Heights |
- |
|
Contact Finish Thickness - Post |
- |
|
Applications |
- |
|
Base Product Number |
10147606 |

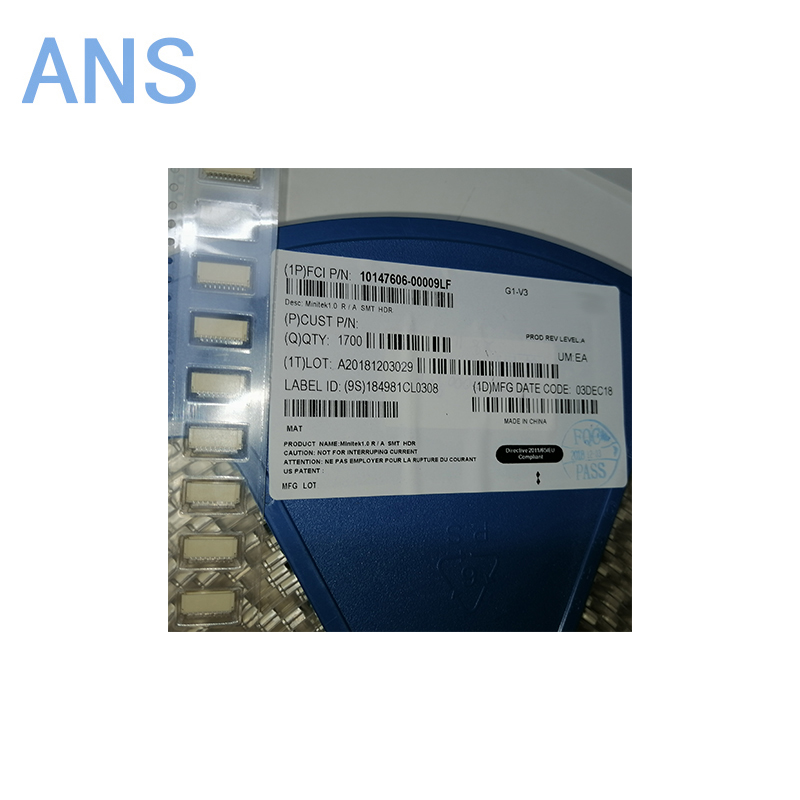

Actual product photos
