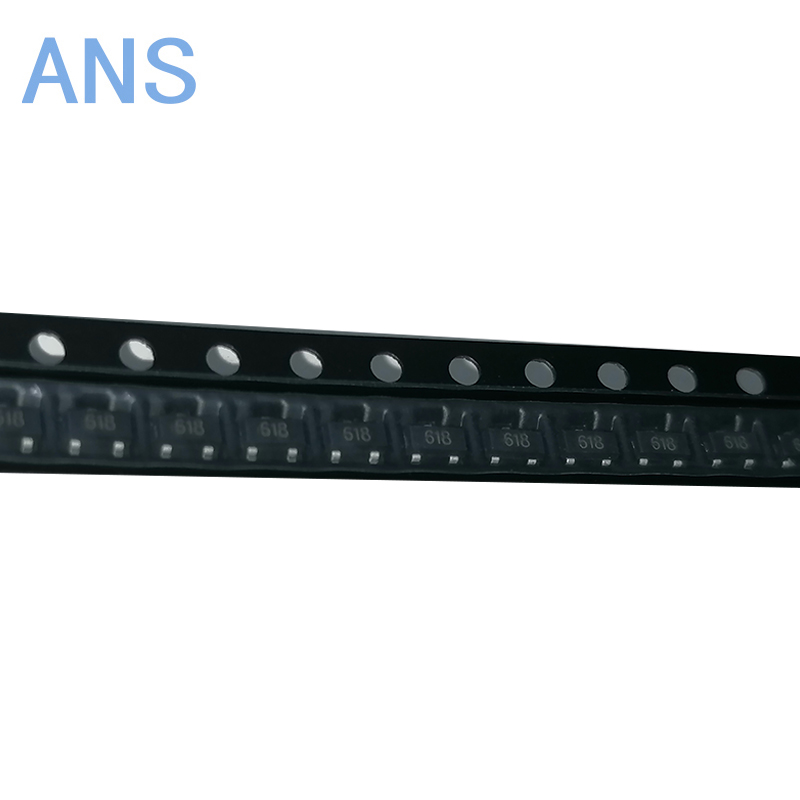

One stop supply of electronic components FMMT618TA 20V 2.5A 140MHz 625mW NPN SILICON LOW SATURATION TRANSISTOR IN SOT23_Electronic components & Bom

Product Features

• BVCEO > 20V

• IC = 2.5A Continuous Collector Current

• RCE(SAT) = 50mΩ for a low equivalent On-Resistance

• 625mW Power dissipation

• hFE characterised up to 6A for high current gain hold up

• Complementary NPN type: FMMT718

• Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• Qualified to AEC-Q101 Standards for High Reliability

• PPAP capable (Note 4)

• DC-DC Modules

• Gate driver

• LED driver

Attribute	Attribute value
ANSM-Part#	ANSM-FMMT618TA
Category	Discrete Semiconductor Products
	Transistors
	Bipolar (BJT)
	Single Bipolar Transistors
Mfr	Diodes Incorporated
Series	-
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel®
Product Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	2.5 A
Voltage - Collector Emitter Breakdown (Max)	20 V
Vce Saturation (Max) @ Ib, Ic	200mV @ 50mA, 2.5A
Current - Collector Cutoff (Max)	100nA
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 2A, 2V
Power - Max	625 mW
Frequency - Transition	140MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3
Base Product Number	FMMT618

FMMT618TA

Product Data Book：

搜狗高速浏览器截图20231207135908

搜狗高速浏览器截图20231207135917

搜狗高速浏览器截图20231207135924

搜狗高速浏览器截图20231207135934

搜狗高速浏览器截图20231207135945

For more product information, please download the PDF
