Product Details
|
1. Description The 400CXW220MEFR18X45 is a high-quality aluminum electrolytic capacitor designed for general-purpose applications. This capacitor is part of the CXW series, known for its reliability and performance in various electronic circuits. With a voltage rating of 400V and a capacitance of 220μF, it offers a robust solution for managing power supply and filtering in electronic systems. 2. Features Voltage Rated: 400V, ensuring high voltage stability. Tolerance: ±20%, providing flexibility in circuit design. Size / Dimension: 0.709Dia x 18.00mm, compact and space-efficient. Series: CXW, a series recognized for its reliability and performance. RoHS Status: ROHS3 Compliant, adhering to environmental regulations. Ripple Current @ Low Frequency: 1.2A @ 120Hz, suitable for low-frequency applications. Ripple Current @ High Frequency: 1.8A @ 10kHz, ideal for high-frequency filtering. Polarization: Polar, ensuring proper operation in polarized circuits. Part Status: Active, indicating ongoing production and availability. Packaging: Bulk, convenient for large-scale applications. Package / Case: Radial, Can, facilitating easy mounting and connection. Operating Temperature: -40°C~105°C, suitable for a wide range of operating conditions. Mounting Type: Through Hole, compatible with traditional PCB mounting techniques. Moisture Sensitivity Level (MSL): 1 (Unlimited), allowing for storage and handling without special precautions. Lifetime @ Temp.: 5000 Hrs @ 105°C, demonstrating long-term reliability under high temperatures.
The 400CXW220MEFR18X45 aluminum electrolytic capacitor is primarily designed for general-purpose applications including: - Power Supply Filtering: Effective in filtering out unwanted AC components from DC power supplies. - Audio Equipment: Used in audio circuits to stabilize voltage and reduce noise. - Industrial Control Systems: Provides stable voltage regulation in industrial control systems. Secondary applications include: - Medical Equipment: Used in medical devices where reliability and stability are crucial. - Automotive Systems: Suitable for automotive electronics due to its high voltage rating and long lifespan. |
Product Description
| Type | Description |
| ANSC PART# | ANSC - 400CXW220MEFR18X45 |
| Category | Capacitors |
| Aluminum Electrolytic Capacitors | |
| Mfr | / |
| Series | CXW |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 220 µF |
| Tolerance |
±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature |
-40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 10 kHz |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |

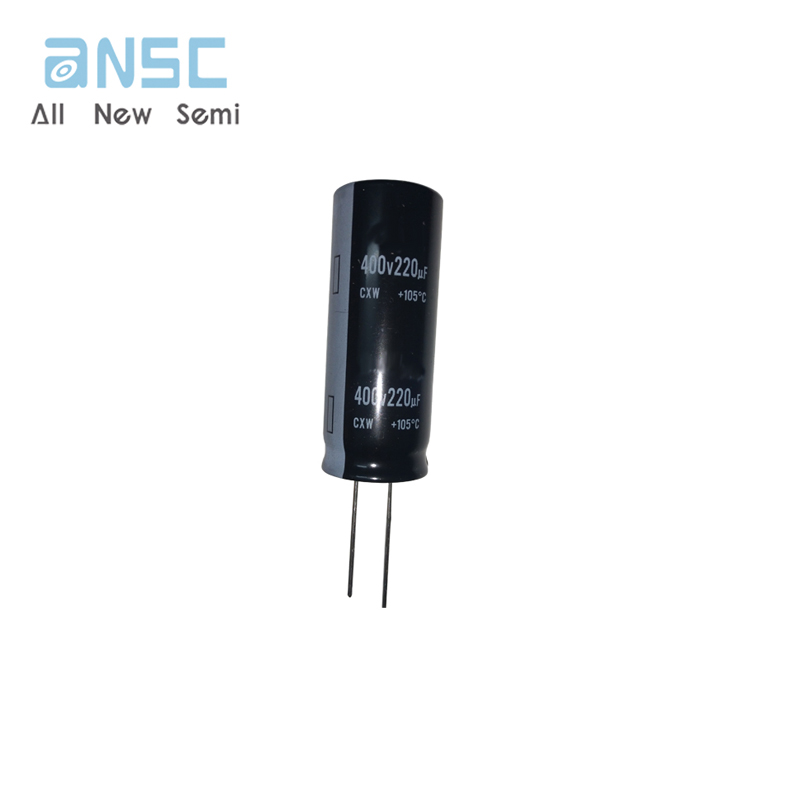

Product Photos

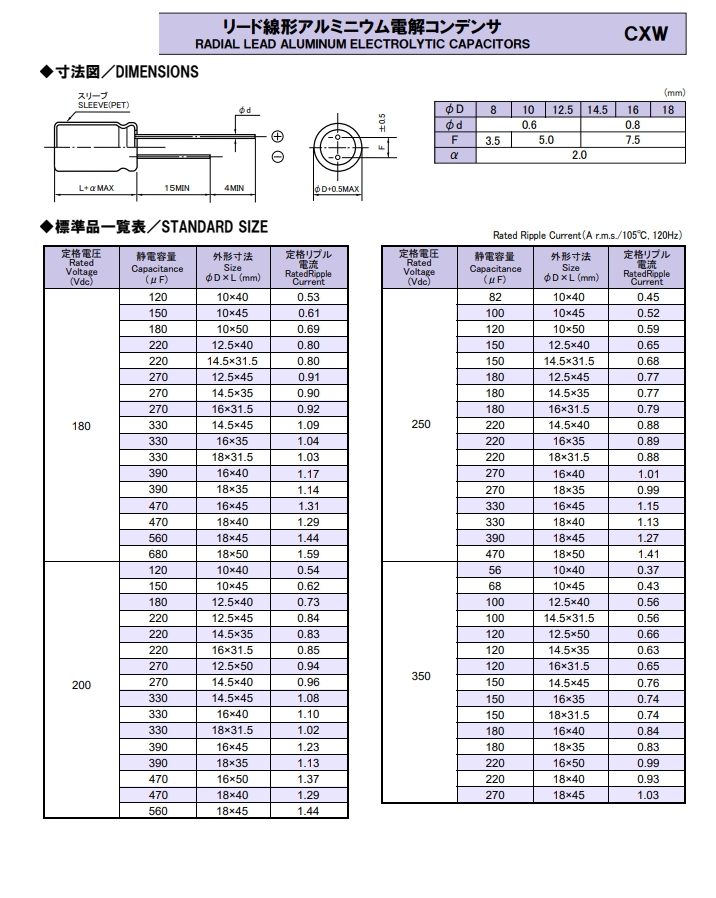

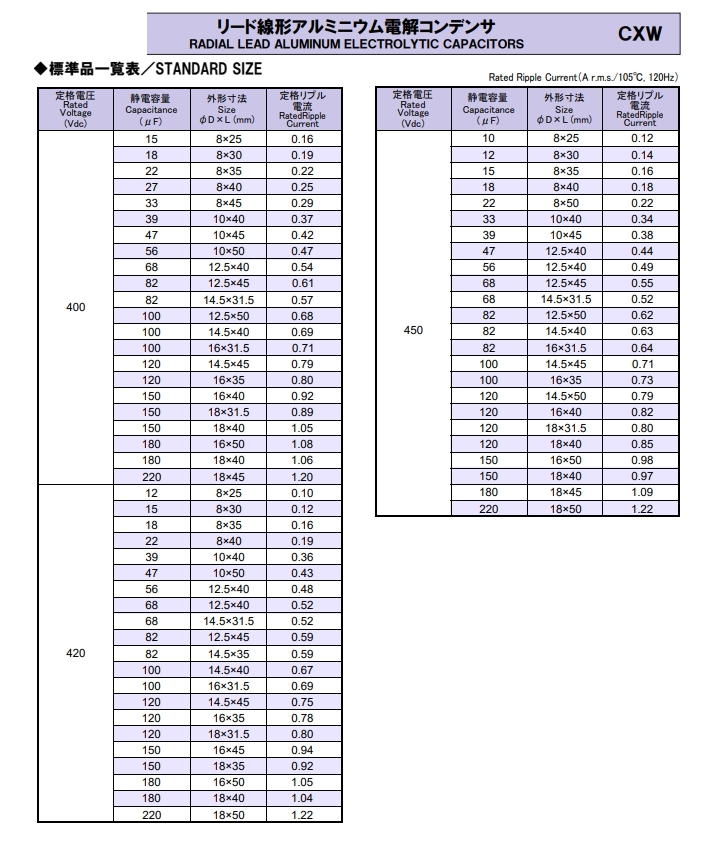

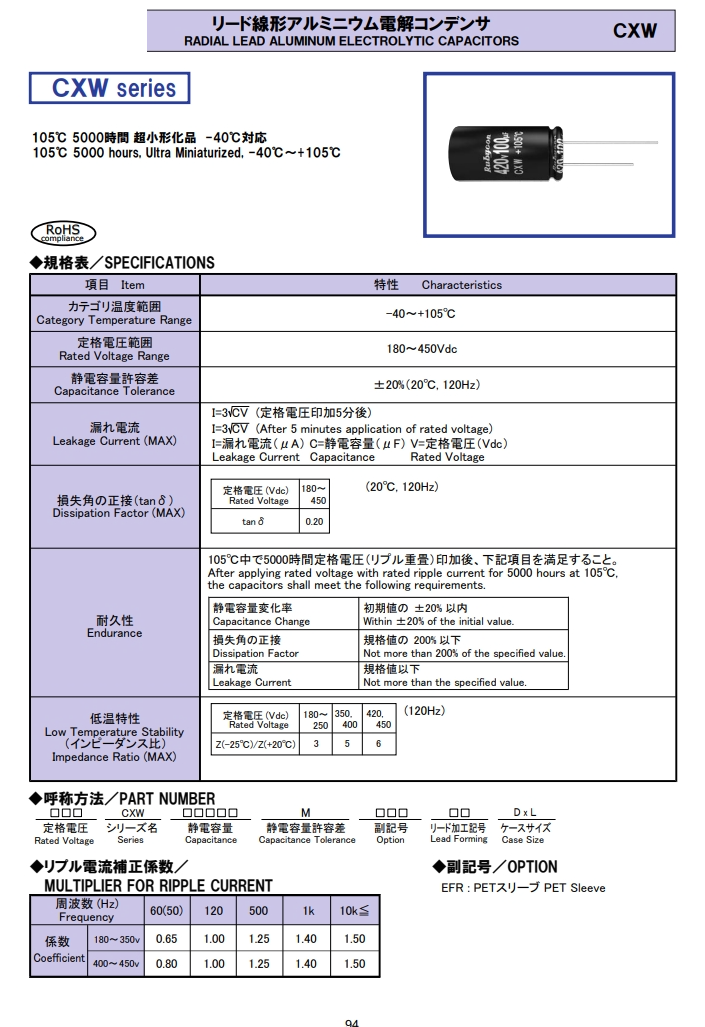

Product datasheet
For more information, please download
