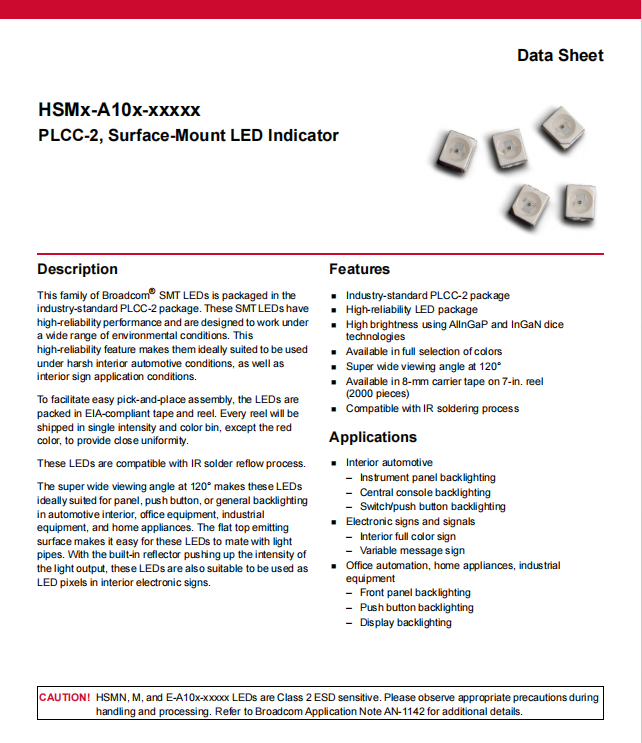

Product Descriptions

This family of Broadcom® SMT LEDs is packaged in the industry-standard PLCC-2 package. These SMT LEDs have high-reliability performance and are designed to work under a wide range of environmental conditions. This high-reliability feature makes them ideally suited to be used

under harsh interior automotive conditions, as well as interior sign application conditions.

To facilitate easy pick-and-place assembly, the LEDs are packed in EIA-compliant tape and reel. Every reel will be shipped in single intensity and color bin, except the red color, to provide close uniformity.

These LEDs are compatible with IR solder reflow process.

The super wide viewing angle at 120° makes these LEDs ideally suited for panel, push button, or general backlighting in automotive interior, office equipment, industrial equipment, and home appliances. The flat top emitting surface makes it easy for these LEDs to mate with light

pipes. With the built-in reflector pushing up the intensity of the light output, these LEDs are also suitable to be used as LED pixels in interior electronic signs.

Product Features

 Industry-standard PLCC-2 package

 High-reliability LED package

 High brightness using AlInGaP and InGaN dice technologies

 Available in full selection of colors

 Super wide viewing angle at 120°

 Available in 8-mm carrier tape on 7-in. reel (2000 pieces)

 Compatible with IR soldering process

Product Applications

 Interior automotive

– Instrument panel backlighting

– Central console backlighting

– Switch/push button backlighting

 Electronic signs and signals

– Interior full color sign

– Variable message sign

 Office automation, home appliances, industrial equipment

– Front panel backlighting

– Push button backlighting

– Display backlighting

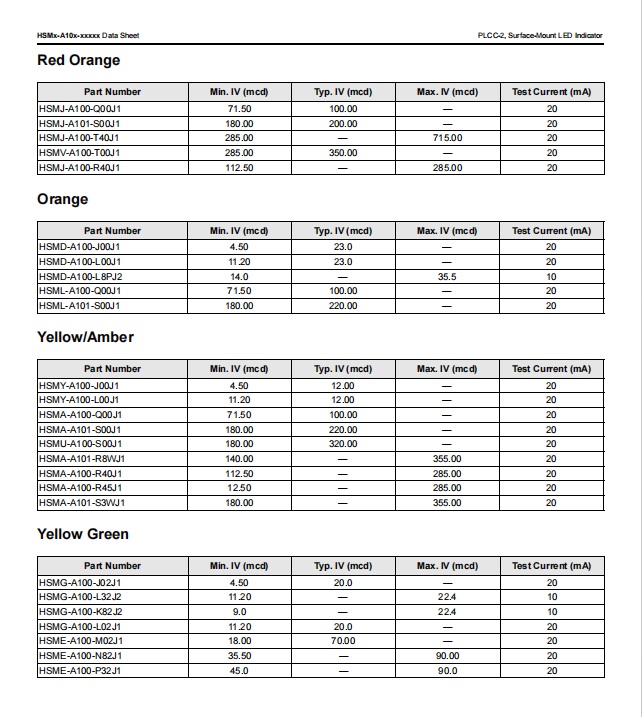

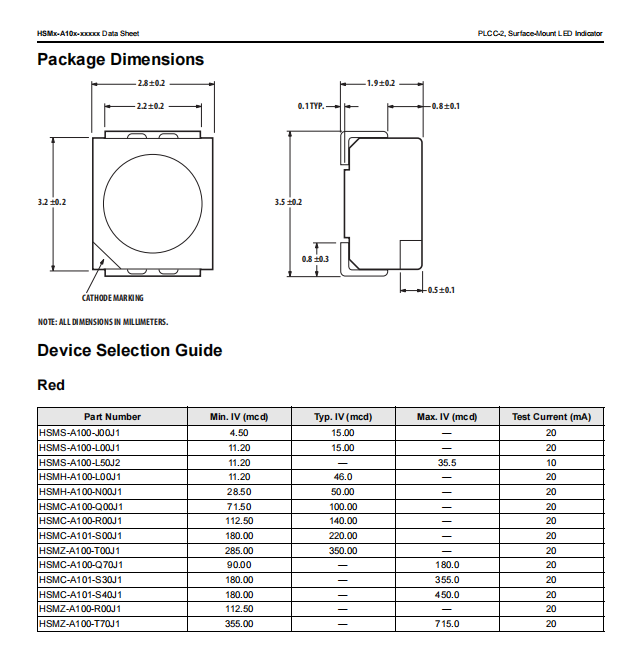

  Specifications

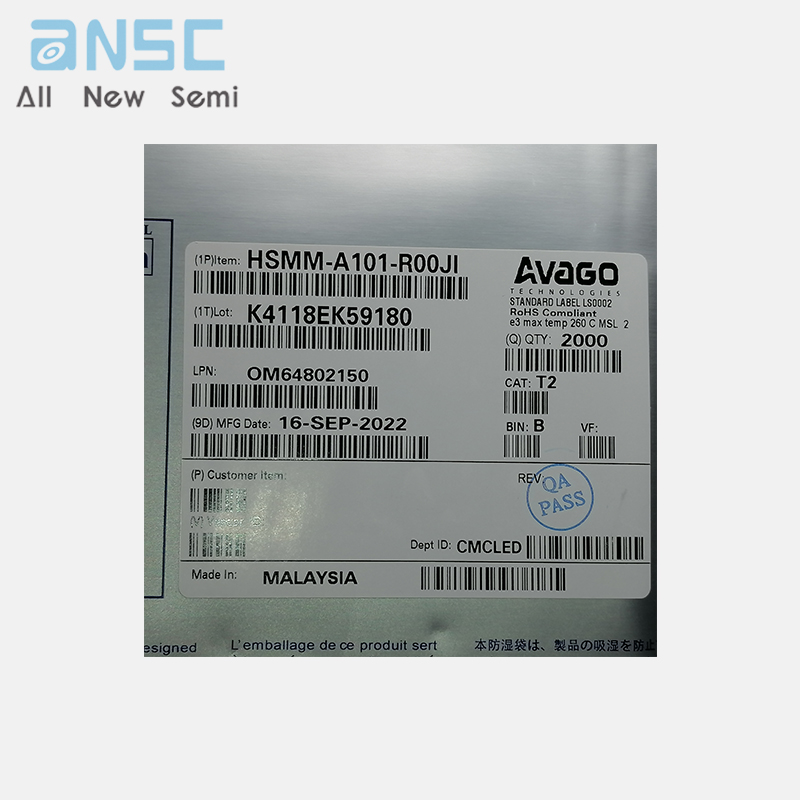

Actual product photos

Product Data Book：

For more product information, please download the PDF
