Product Details
2N3819 Description
The 2N3819 is an N-Channel - Depletion layer JFET that is commonly used in RF-based audio equipment for amplification and other applications. It works as a VHF/UHF Amplifier. It has a 25 Vdc drain-source voltage and a 25 Vdc drain-gate voltage. The gate-source voltage is set to 25 volts.
Product Features
Type: JFET - N - Channel - Depletion
Drain to Source Voltage (VDS) = 25V
Drain to Gate Voltage (VDG) = 25V
Gate to Source Voltage (VGS) = 25V
Drain Current (ID)= 0.1 A
Sourced from process 50
Product Application
VHF/UHF Amplifier system
Receiver and Transmitter
RF Module
Tone control
Audio Applications
Product Description
Type | Description |
|---|---|
| ANSC PART# | ANSC - 2N3819 |
Category | Discrete Semiconductor Products Transistors FETs, MOSFETs RF FETs, MOSFETs |
Manufacturer | - |
Series | - |
Packaging | Bulk |
Part Status | Obsolete |
Technology | JFET |
Configuration | N-Channel |
Frequency | - |
Gain | - |
Current Rating (Amps) | 100mA |
Noise Figure | - |
Power - Output | - |
Voltage - Rated | 25 V |
Mounting Type | Through Hole |

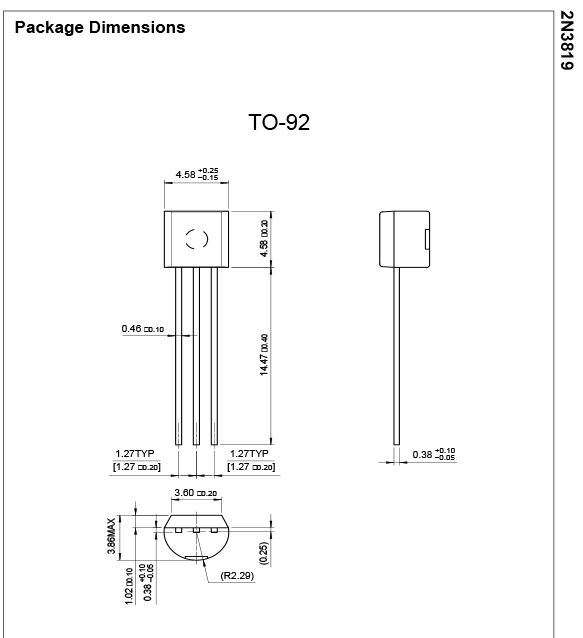

Package / Case | TO-226-3, TO-92-3 Long Body |
Supplier Device Package | TO-92 (TO-226) |
Base Product Number | 2N3819 |

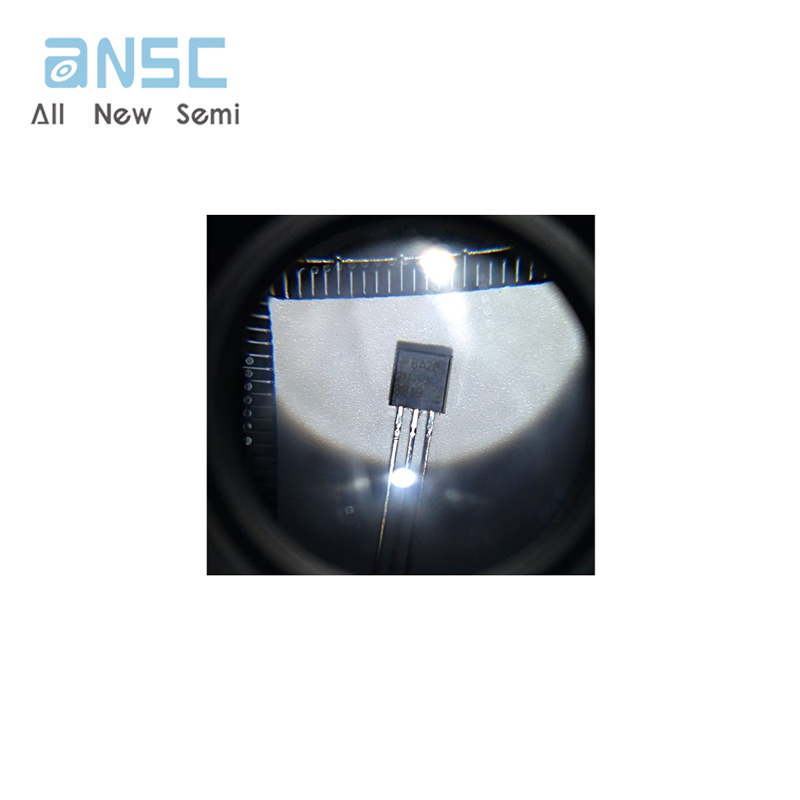

Product Photos

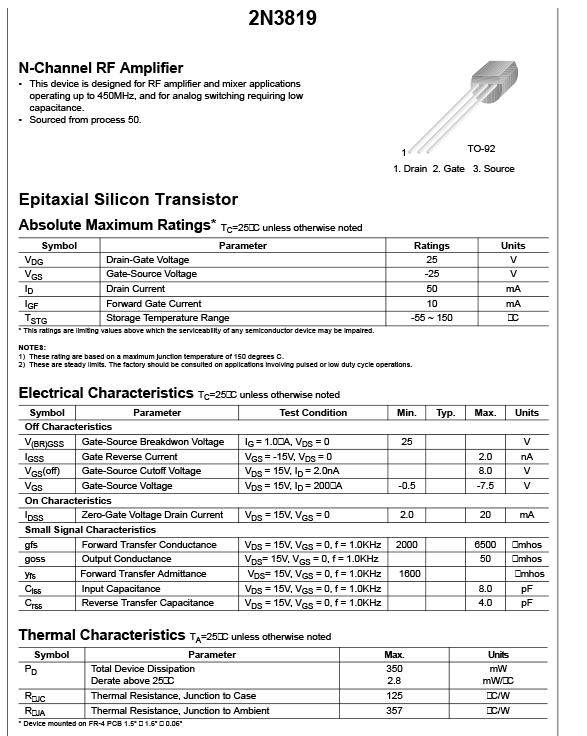

Product datasheet
For more information, please download
