Product Details
MBR0520LT1G Overview
Reverse voltage 20V is a reasonable value.Reverse leakage current from this device is 250μA volts at its maximum.For this device, the average rectified current is 500mA volts.In this case, forward current can reach 500mA.As you can see, the fuse's current rating is 500mA, which means that it can carry a maximum current for an indefinite period without losing too much performance.Phase diode rectifier is possible to use a surge current of maximum value 5.5A.Based on the data chart, the peak reverse is 250μA.A diode's breakdown voltage specifies the largest reverse voltage that can be applied without significantly increasing the leakage current, which is 20V.
MBR0520LT1G Features
a maximal reverse leakage current of 250μA volts
an average rectified current of 500mA volts
a current rating of 500mA
the peak reverse is 250μA
the breakdown voltage of a diode is 20V
MBR0520LT1G Applications
There are a lot of ON Semiconductor
MBR0520LT1G applications of single-phase diode rectifier.
DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
Product Description
Part# | MBR0520LT1G |
category | Discrete Semiconductor Products |
Diode - Rectifier - Single | |
manufacturer | all |
series | - |
Package | Tape and Reel (TR) |
Shear Band (CT) | |
product status | in stock |
Diode Type | Schottky |
Voltage - DC Reverse (Vr) (Maximum) | 20 V |
Current - Average Rectification (Io) | 500mA |
Voltage at different If - Forward (Vf) | 385 mV @ 500 mA |
speed | Fast recovery = < 500ns, > 200mA (Io) |
Current-reverse leakage at different Vr | 250 µA @ 20 V |
Capacitance at different Vr, F | - |
installation type | Surface Mount Type |
Package/Enclosure | SOD-123 |
Supplier Device Packaging | SOD-123 |
Operating Temperature - Junction | -65°C ~ 125°C |
Basic product number | MBR0520 |

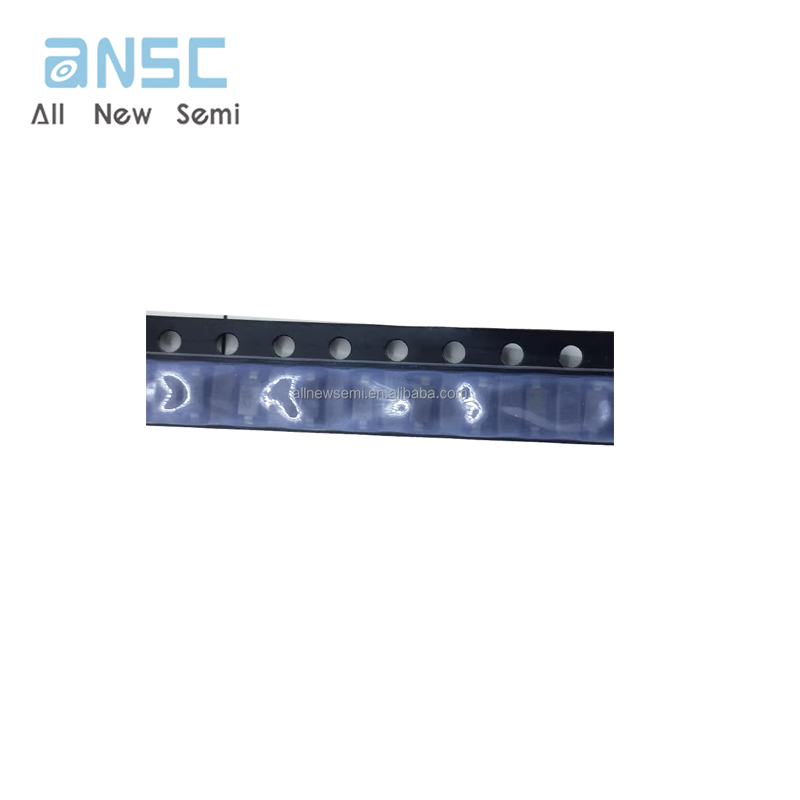

Actual image of the product

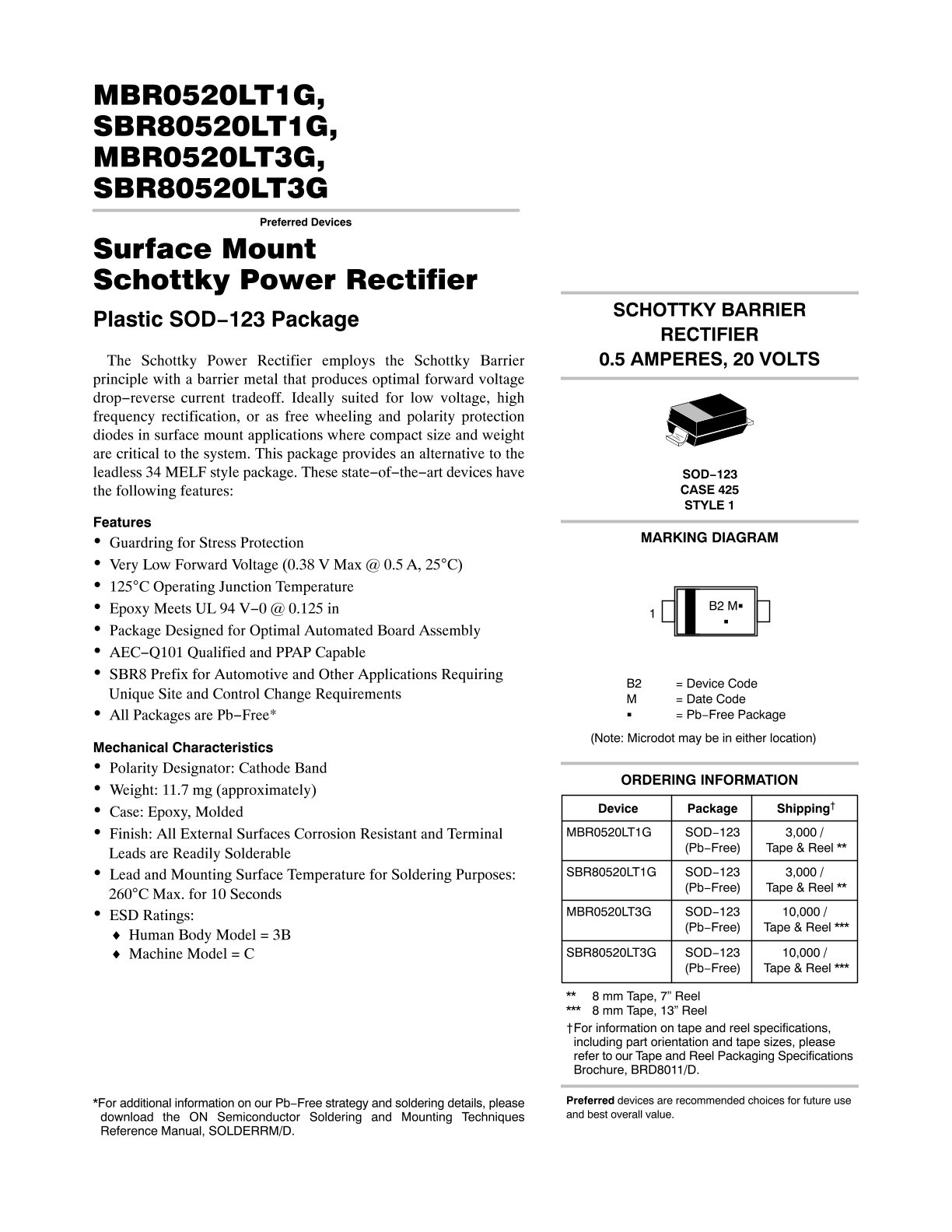

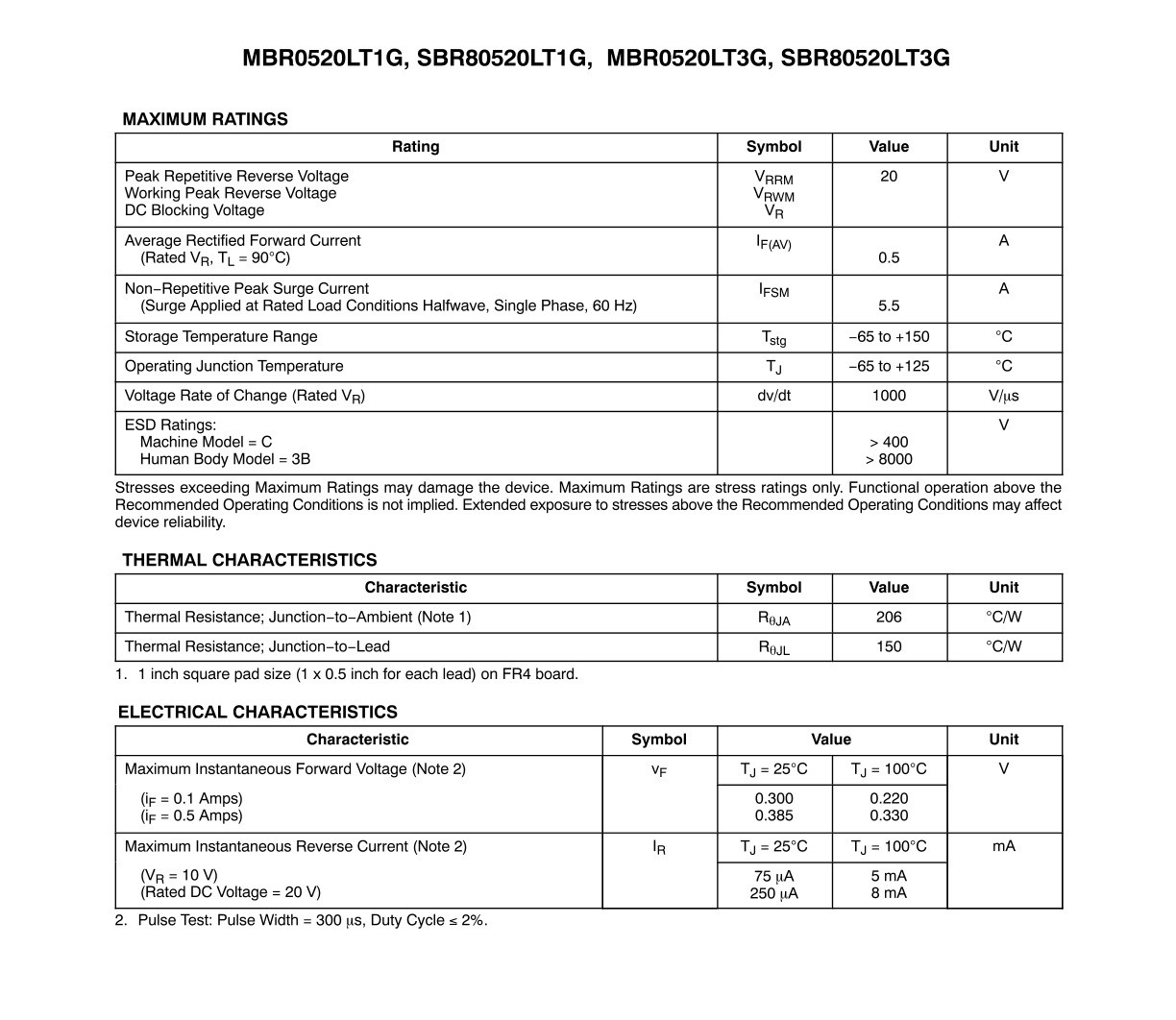

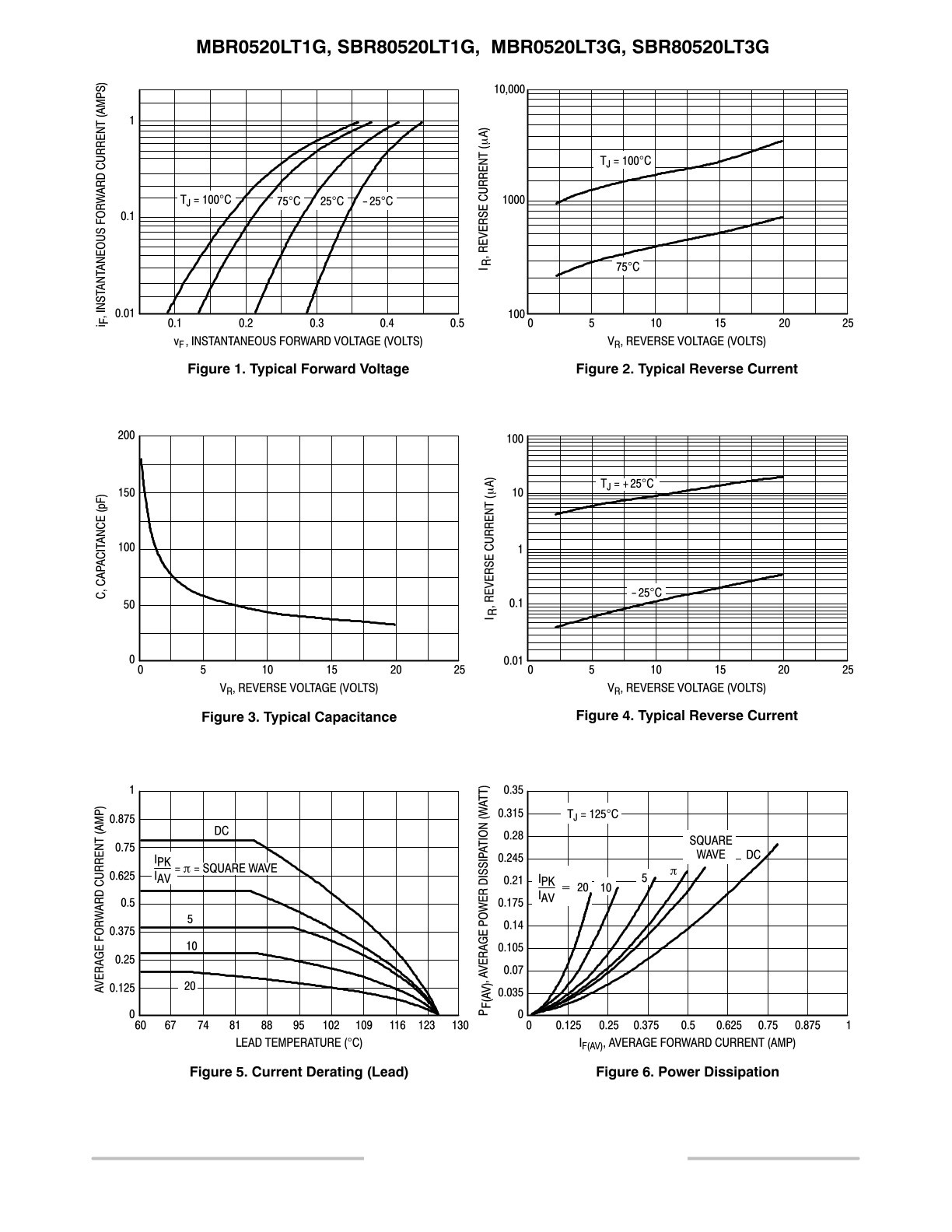

Product datasheet
