Product Description
ANSC PART# | ANSC- SRR6603-222ML |
Part# | SRR6603-222ML |
Type： | Electronic components |
Manufactor | Original |
DC | new |

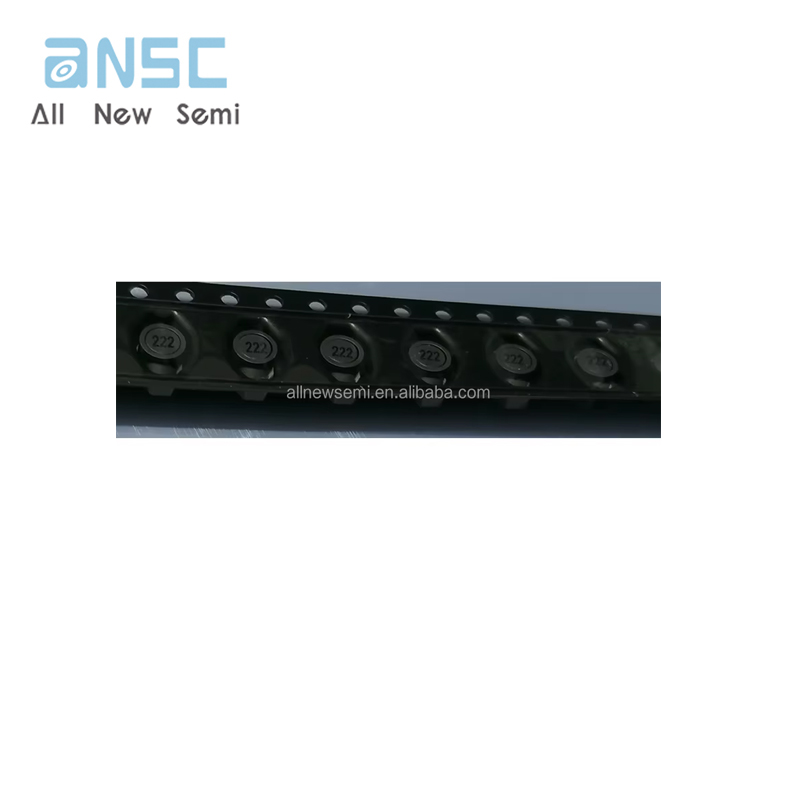

Actual image of the product
Product Attributes
TYPE | DESCRIPTION |
|---|---|
Category | Inductors, Coils, Chokes Fixed Inductors |
Mfr | Bourns Inc. |
Series | SRR6603 |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Type | Drum Core, Wirewound |
Material - Core | Ferrite |
Inductance | 2.2 mH |
Tolerance | ±20% |
Current Rating (Amps) | 100 mA |
Current - Saturation (Isat) | 28mA |
Shielding | Shielded |
DC Resistance (DCR) | 8.5Ohm Max |
Q @ Freq | 50 @ 100kHz |
Frequency - Self Resonant | 2MHz |
Ratings | - |
Operating Temperature | -55°C ~ 125°C |
Inductance Frequency - Test | 100 kHz |
Mounting Type | Surface Mount |
Package / Case | Nonstandard |
Supplier Device Package | - |
Size / Dimension | 0.260" L x 0.173" W (6.60mm x 4.40mm) |
Height - Seated (Max) | 0.118" (3.00mm) |
Base Product Number | SRR6603 |

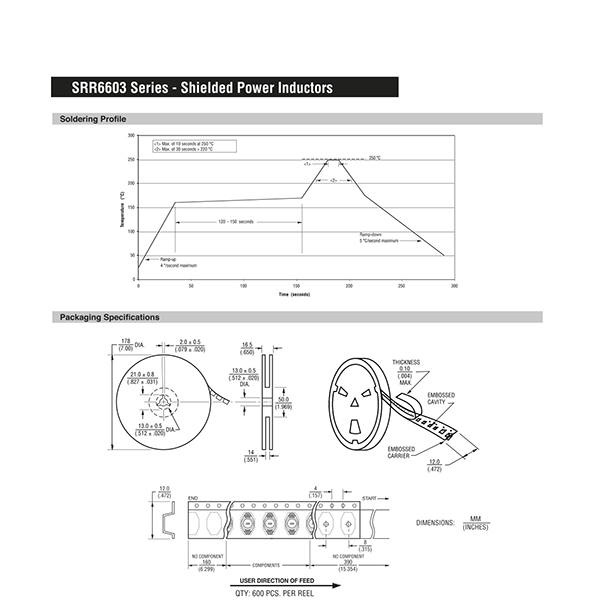

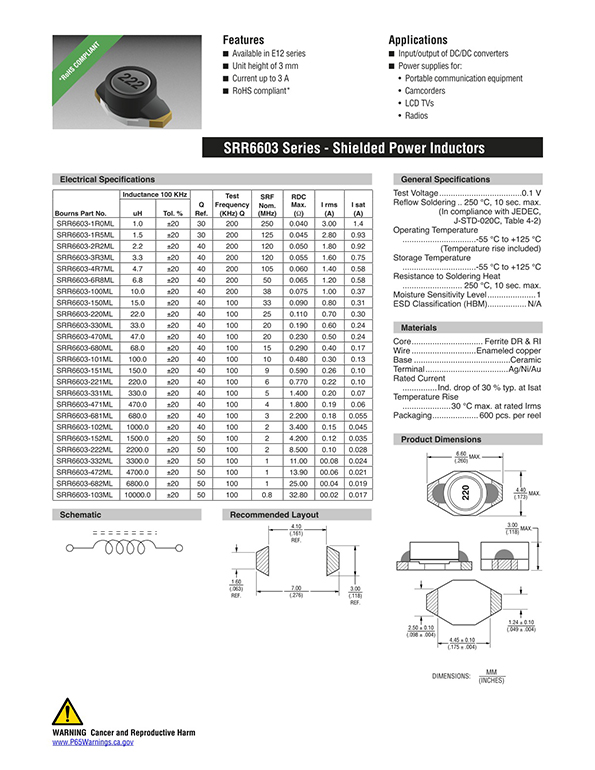

Product datasheet
For more information, please download
