Product Details
Inductors
• High SRF and excellent Q values
• Tight tolerances, many values at 1%
• 39 inductance values from 10 nH to 8.2 µH
Product Description
| Type# | Description |
| ANSC PART# | ANSC- 1008CS-330XJLC |
| Ihs Manufacturer | / |
| Package Description | CHIP |
| Samacsys Manufacturer | Original |
| Case/Size Code | 1008 |
| Construction | Rectangular |
| Core Material | CERAMIC |
| DC Resistance | 0.14 Ω |
| Inductance-Nom (L) | 0.033 µH |
| Inductor Application | RF INDUCTOR |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -40 °C |
| Package Height | 2.03 mm |
| Package Length | 2.92 mm |
| Package Style | SMT |
| Package Width | 2.79 mm |
| Packing Method | TR, Embossed Plastic, 7 Inch |
| Quality Factor-Min (at L-nom) | 60 |
| Rated Current-Max | 1 A |
| Reference Standard | AEC-Q200 |
| Self Resonance Frequency | 1600 MHz |
| Shape/Size Description | RECTANGULAR PACKAGE |
| Shielded | NO |
| Special Feature | Q IS MEASURED AT 350 MHZ |
| Surface Mount | YES |
| Terminal Finish | SILVER PALLADIUM PLATINUM |
| Terminal Placement | DUAL ENDED |
| Terminal Shape | WRAPAROUND |
| Test Frequency | 50 MHz |
| Tolerance | 5% |

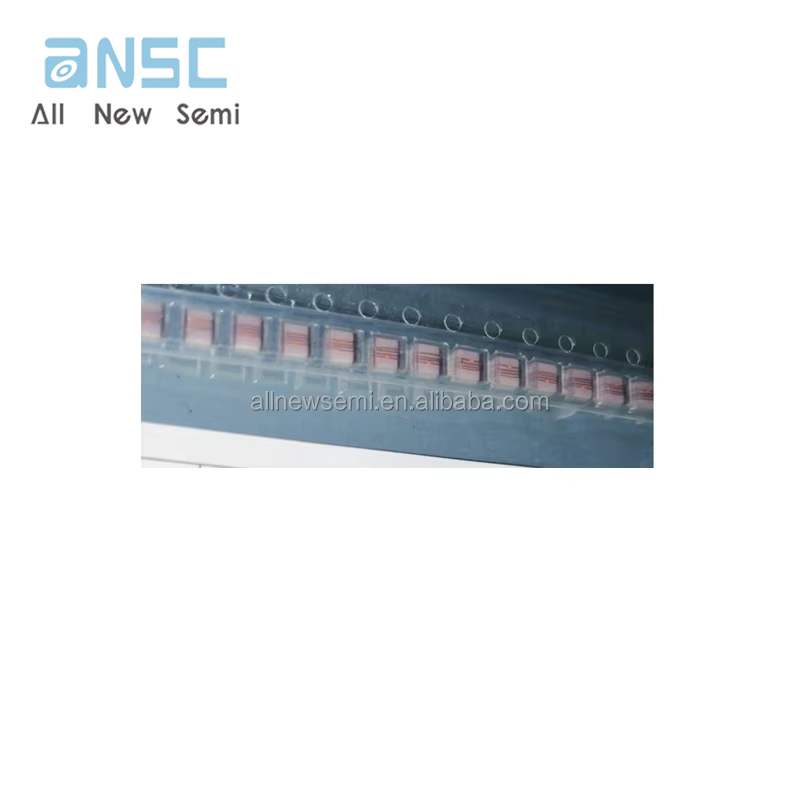

Actual image of the product

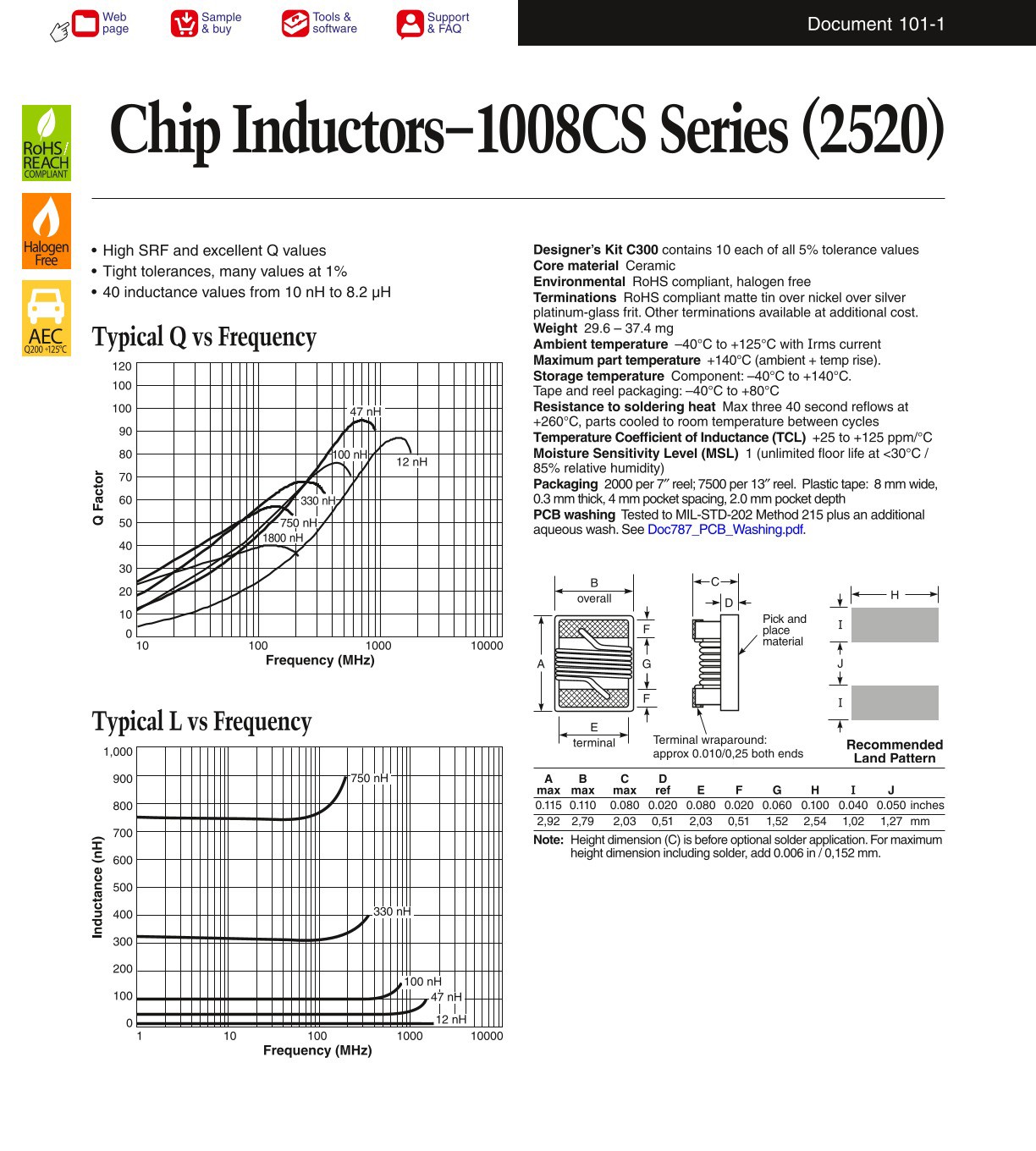

Product datasheet
For more information, please download
