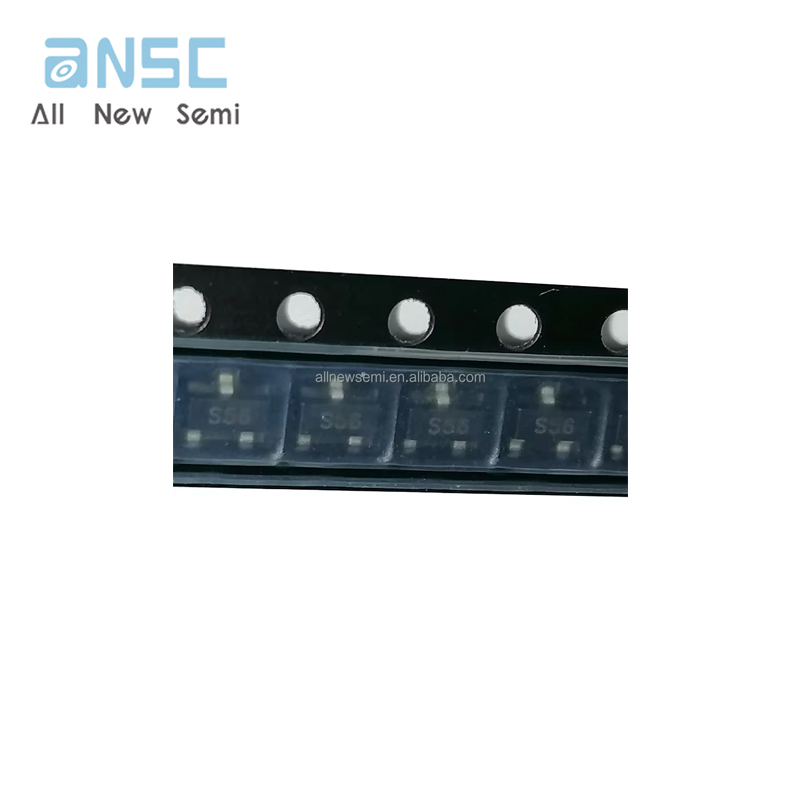

Professional supply Integrated circuit IC ZHCS506TA 60V 500mA SURFACE MOUNT SCHOTTKY BARRIER DIODE SOT-23-3_Electronic components & Bom

Product Features

• High Current Capability (IO = 500mA)

• Low VF

• Totally Lead-Free Finish & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• Qualified to AEC-Q101 Standards for High Reliability

• Case: SOT23

• Case Material: Molded Plastic, “Green” Molding Compound.

• UL Flammability Classification Rating 94V-0

• Moisture Sensitivity: Level 1 per J-STD-020

• Terminals: Matte Tin Finish annealed over Alloy 42 leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208

• Weight: 0.0089 grams (approximate)

• DC - DC Converters

• Mobile Telecomms

• PCMIA

Attribute	Attribute value
ANSM-Part#	ANSM-ZHCS506TA
Category	Discrete Semiconductor Products
	Diodes
	Rectifiers
	Single Diodes
Mfr	Diodes Incorporated
Series	-
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel®
Product Status	Active
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	60 V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	630 mV @ 500 mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	10 ns
Current - Reverse Leakage @ Vr	40 µA @ 45 V
Capacitance @ Vr, F	20pF @ 25V, 1MHz
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3
Operating Temperature - Junction	125°C (Max)
Base Product Number	ZHCS506

ZHCS506TA

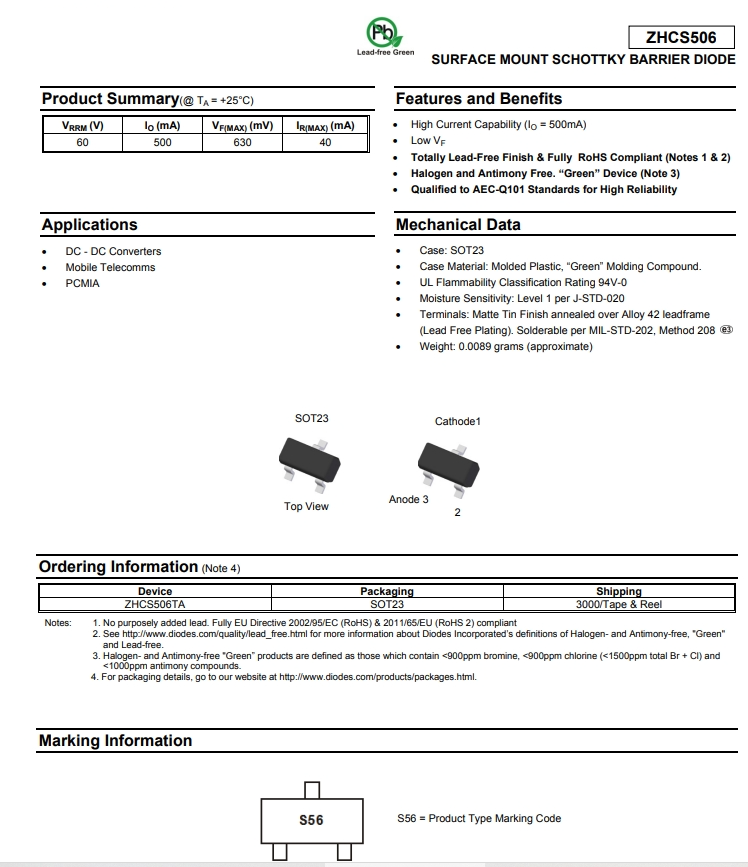

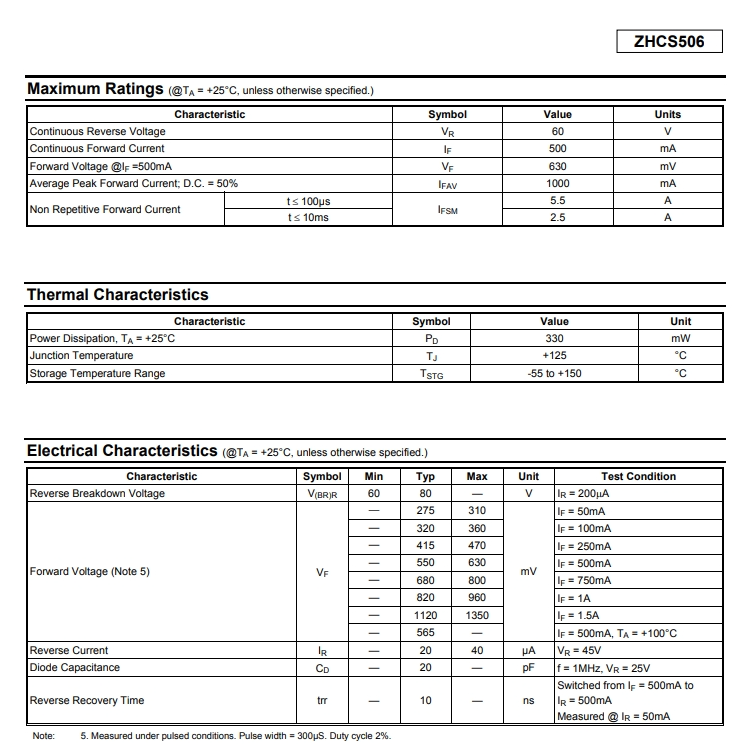

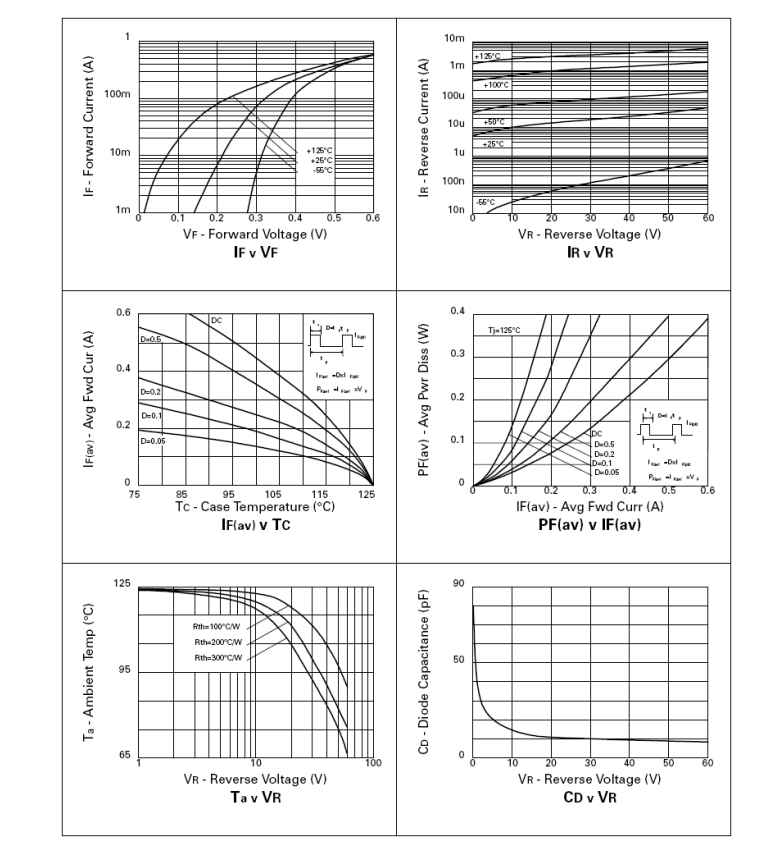

Product Data Book：

搜狗高速浏览器截图20231223171436

搜狗高速浏览器截图20231223171440

搜狗高速浏览器截图20231223171444

For more product information, please download the PDF
