Product Details
DESCRIPTION
The TDA7490 is a dual audio class D amplifier assembled in Flexiwatt 25 package; it is specially designed for high efficiency application mainly for TV and Home Stereo sets.
POWER:
RL = 8Ω/4Ω; THD = 10%
■ HIGH EFFICIENCY
■ WIDE SUPPLY VOLTAGE RANGE (FROM ±10 TO ±25V)
■ SPLIT SUPPLY
■ TURN OFF/ON POP FREE
■ ST-BY AND MUTE FEATURES
■ SHORT CIRCUIT PROTECTION ACROSS THE LOAD
■ THERMAL OVERLOAD PROTECTION
■ EXTERNALLY SINCHRONIZABLE
■ BRIDGE CONFIGURATION
Product Description
|
Type |
Description |
|---|---|
| PART# | 749020010A |
|
Category |
Transformers Pulse Transformers |
|
Manufacturer |
- |
|
Series |
WE-LAN |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Transformer Type |
LAN 10/100/1000 Base-T |
|
Inductance |
350µH |
|
ET (Volt-Time) |
- |
|
Turns Ratio - Primary:Secondary |
1:1 |
|
Mounting Type |
Surface Mount |
|
Size / Dimension |
0.689" L x 0.559" W (17.50mm x 14.20mm) |
|
Height - Seated (Max) |
0.236" (6.00mm) |
|
Operating Temperature |
-40°C ~ 85°C |

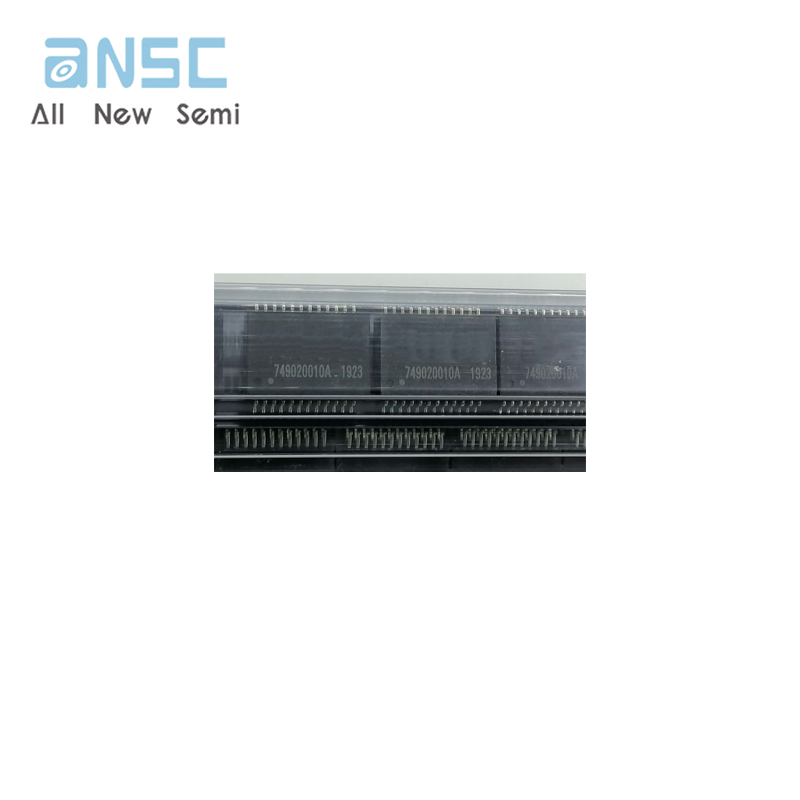

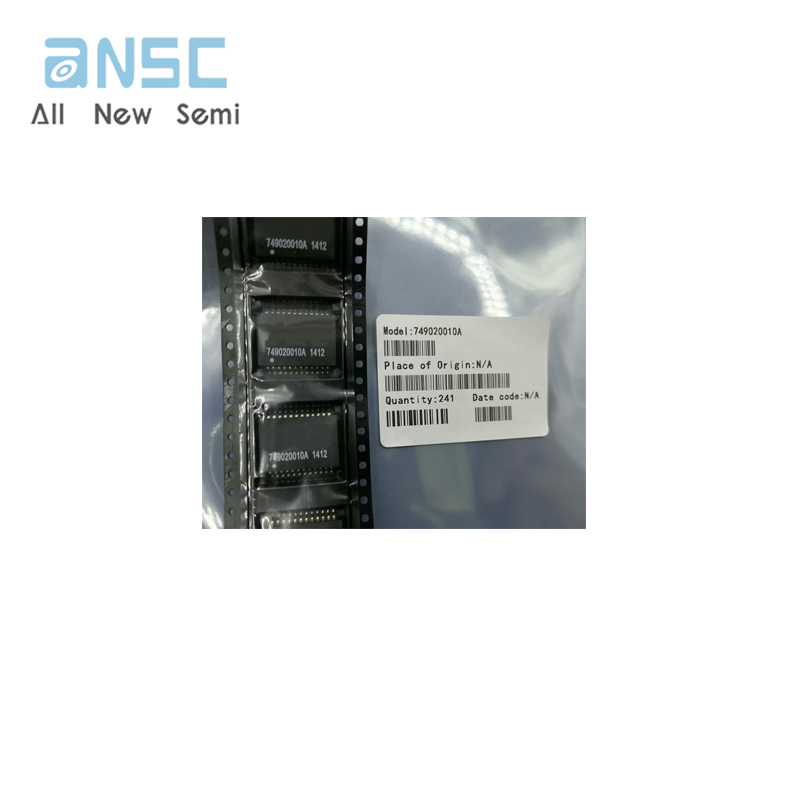

Actual image of the product
