Professional supply Integrated circuit IC LGU2C681MELB 680µF Aluminum Electrolytic Capacitors Radial Can-Snap-In 3000Hrs@105°C

LGU2C681MELB

Model:LGU2C681MELB

Manufacturer:Nichicon

Package:DIP

Detail

Product Descriptions


• Withstanding 3000 hours application of rated ripple current at 105°C.

• Compliant to the RoHS directive (2011/65/EU,(EU)2015/863).


Specifications


Attribute Attribute value
ANSM-Part# ANSM-LGU2C681MELB
Category Capacitors
Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGU
Package Bulk
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 160 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.82 A @ 120 Hz
Ripple Current @ High Frequency 2.73 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In


Actual product photos


LGU2C681MELB

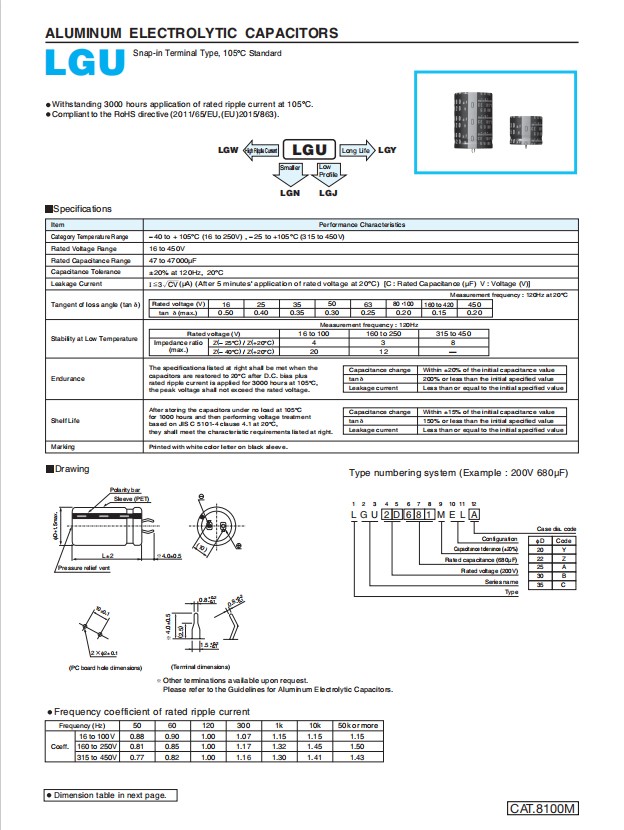

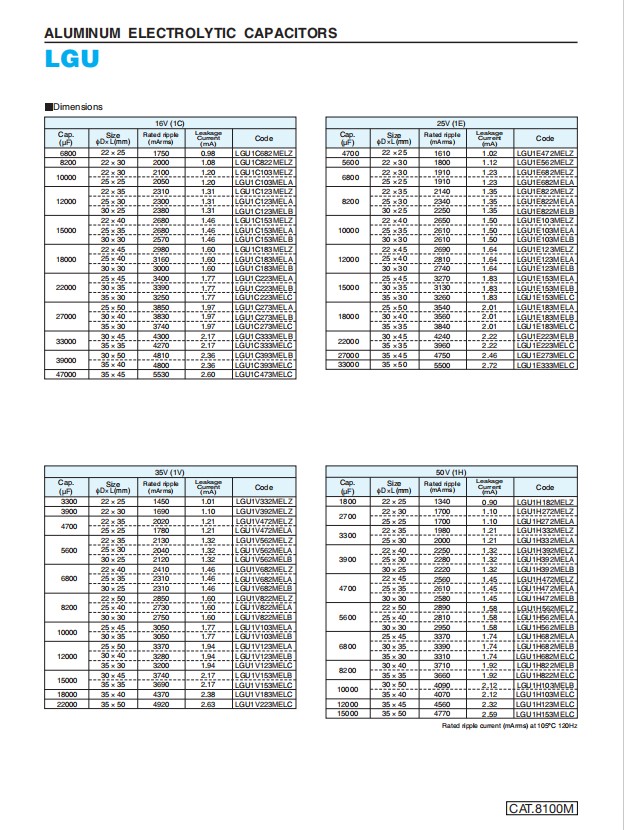

Product Data Book:

For more product information, please download the PDF
