Product Description
Operating Temperature: -55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Range: 0.10 μF to 1000 μF
Capacitance Tolerance: ± 5 percent, ± 10 percent , ± 20 %
100 percent Surge Current Tested (D and E Case Codes)
Voltage Rating: 4 VDC to 75 VDC
Product Features
• Molded case available in five case codes
• Terminations: 100 % matte tin standard,tin / lead available
• Compatible with “high volume” automatic pick and place equipment
• Standard EIA-535-BAAC case sizes (A through E)
• Qualified to EIA-717
• Moisture sensitivity level 1
• Optical character recognition qualified
• Compliant terminations
Product Applications
• Industrial
• Telecom infrastructure
• General purpose
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-293D226X9020D2TE3 |
| Category | Capacitors |
| Tantalum Capacitors | |
| Mfr | Vishay Sprague |
| Series | TANTAMOUNT™, 293D |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±10% |
| Voltage - Rated | 20 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 700mOhm |
| Operating Temperature | -55°C ~ 125°C |
| Lifetime @ Temp. | - |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Lead Spacing | - |
| Manufacturer Size Code | D |
| Features | General Purpose |
| Failure Rate | - |
Actual product photos

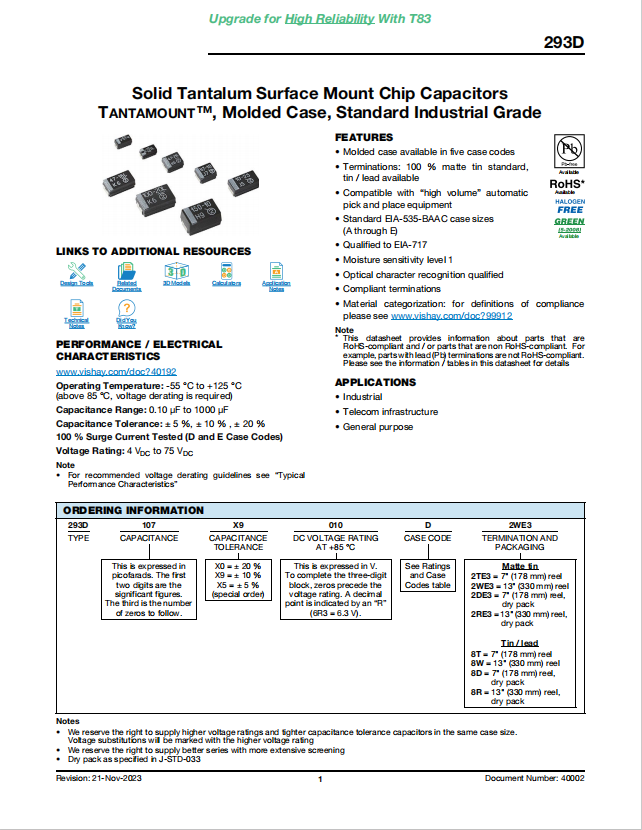

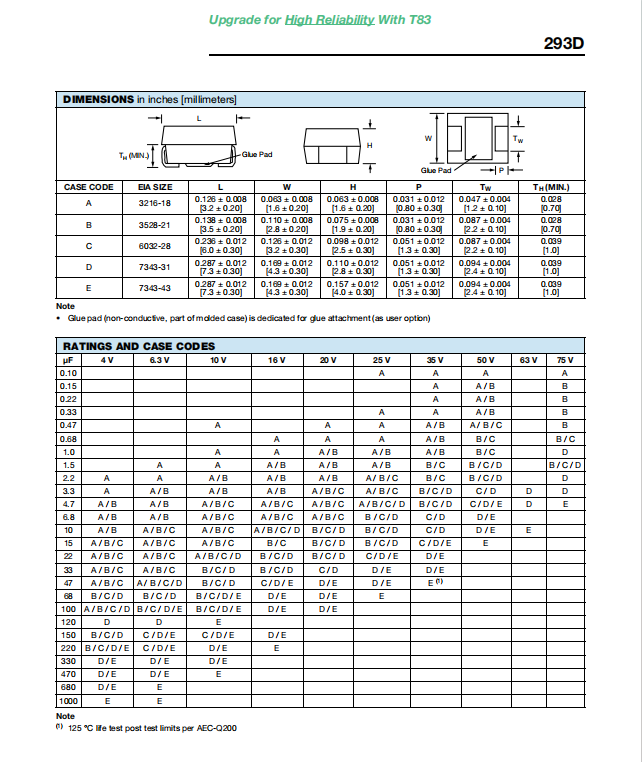

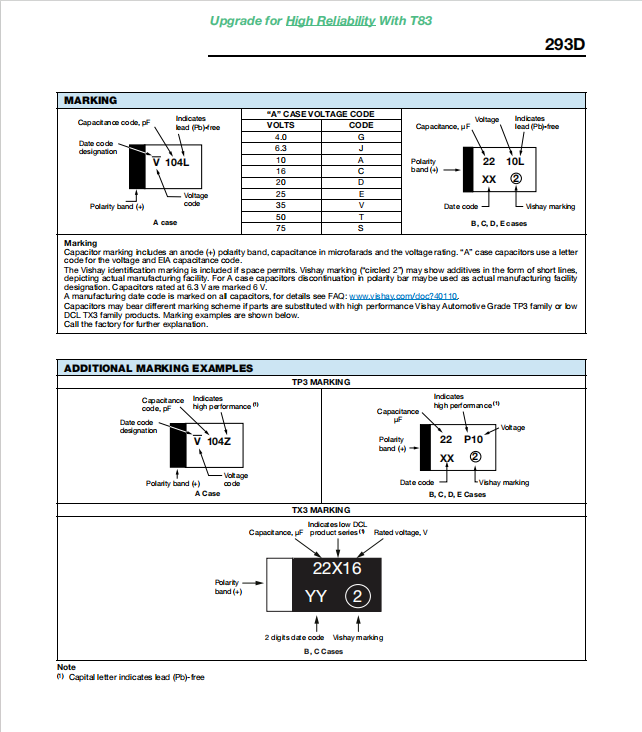

Product Data Book：
