Product Features
• High energy storage and very low resistance
• Defense Supply Center CID A-A-59742
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-D01608C-103MLB |
| Manufacturer: | Coilcraft |
| Product Category: | Power Inductors - SMD |
| RoHS: | Details |
| Termination Style: | SMD/SMT |
| Package / Case: | 4.45 mm x 2.92 mm x 6.6 mm |
| Shielding: | Shielded |
| Inductance: | 10 uH |
| Tolerance: | 0.2 |
| Maximum DC Current: | 1.5 A |
| Maximum DC Resistance: | 160 mOhms |
| Saturation Current: | 1.1 A |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 85 C |
| Q Minimum: | - |
| Mounting Style: | PCB Mount |
| Length: | 6.6 mm |
| Width: | 4.45 mm |
| Height: | 2.92 mm |
| Core Material: | Ferrite |
| Series: | DO1608C |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Application: | Automotive |
| Brand: | Coilcraft |
| Core Type: | Drum |
| Product: | Power Inductors |
| Product Type: | Power Inductors - SMD |
| Self Resonant Frequency: | 35 MHz |
| Factory Pack Quantity: | 750 |
| Subcategory: | Inductors, Chokes & Coils |
| Termination: | Standard |
| Test Frequency: | 100 kHz |
| Unit Weight: | 0.004586 oz |
Actual product photos

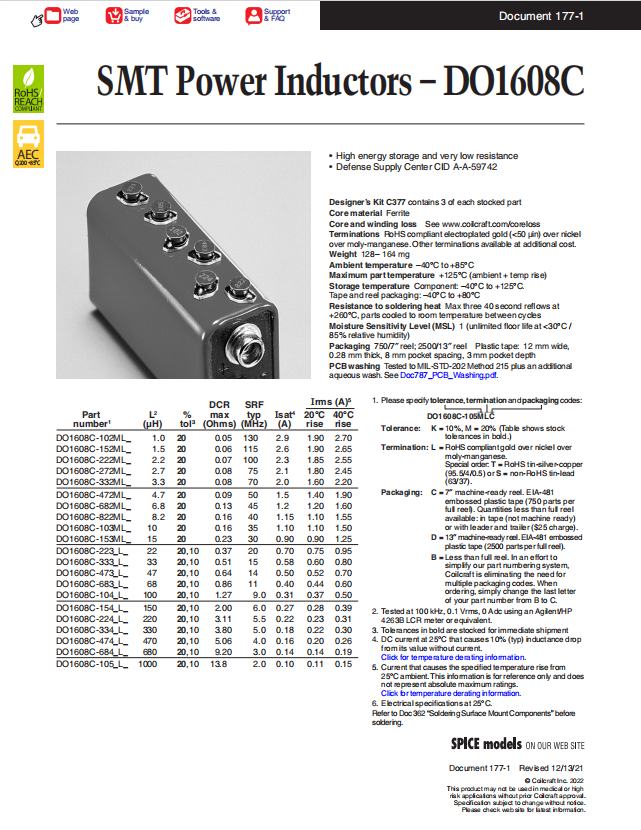

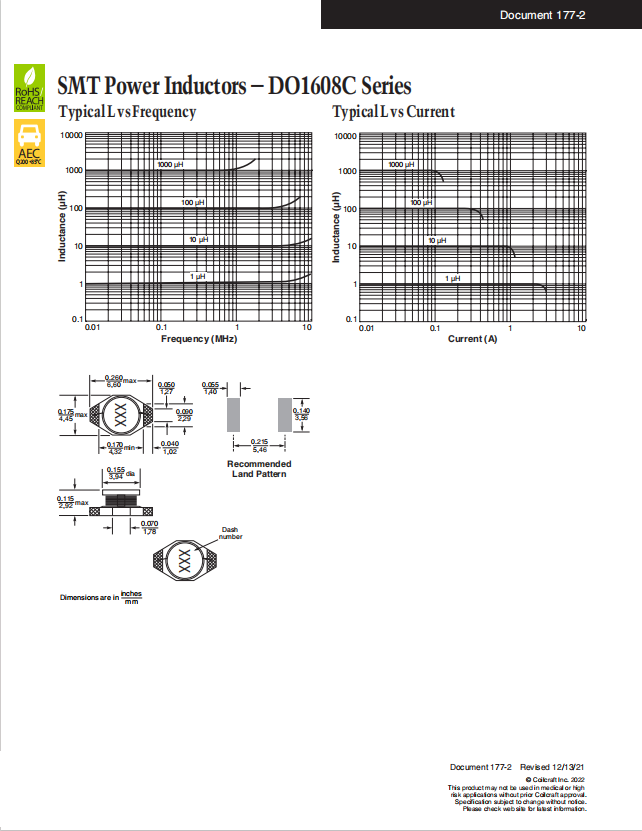

Product Data Book：
