Product Descriptions
The SFH6156 features a variety of transfer ratios, low coupling capacitance and high isolation voltage. This coupler has a GaAs infrared diode
emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic SMD package.
The coupling devices are designed for signal transmission between two electrically separated circuits.
Product Feature
• Excellent CTR linearity depending on forward current
• Isolation test voltage, 5300 VRMS
• Fast switching times
• Low CTR degradation
• Low coupling capacitance
Product Applications
• Switchmode power supply
• Telecom
• Battery powered equipment
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SFH6156-3T |
| Category | Isolators |
| Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Mfr | Vishay Semiconductor Opto Division |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | 200% @ 10mA |
| Turn On / Turn Off Time (Typ) | 3µs, 2.3µs |
| Rise / Fall Time (Typ) | 2µs, 2µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
| Base Product Number | SFH6156 |
Actual product photos

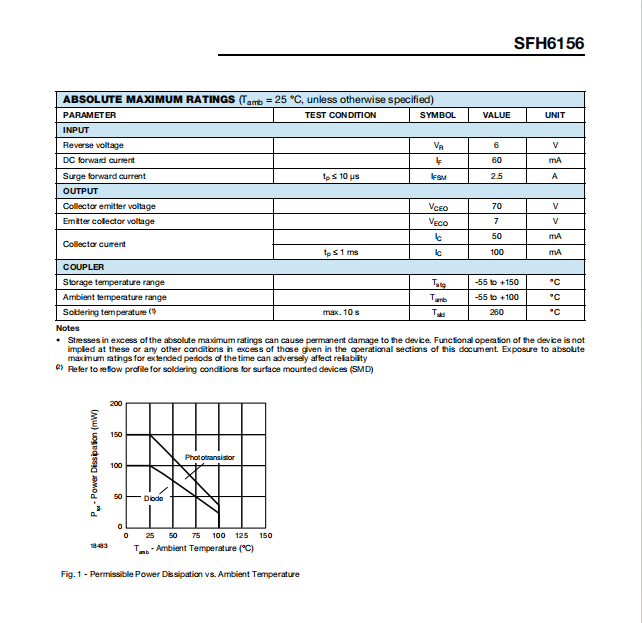

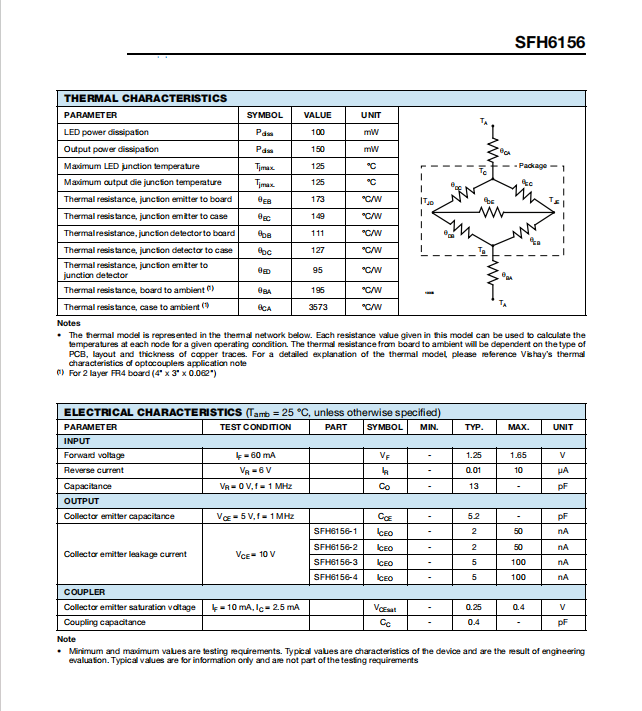

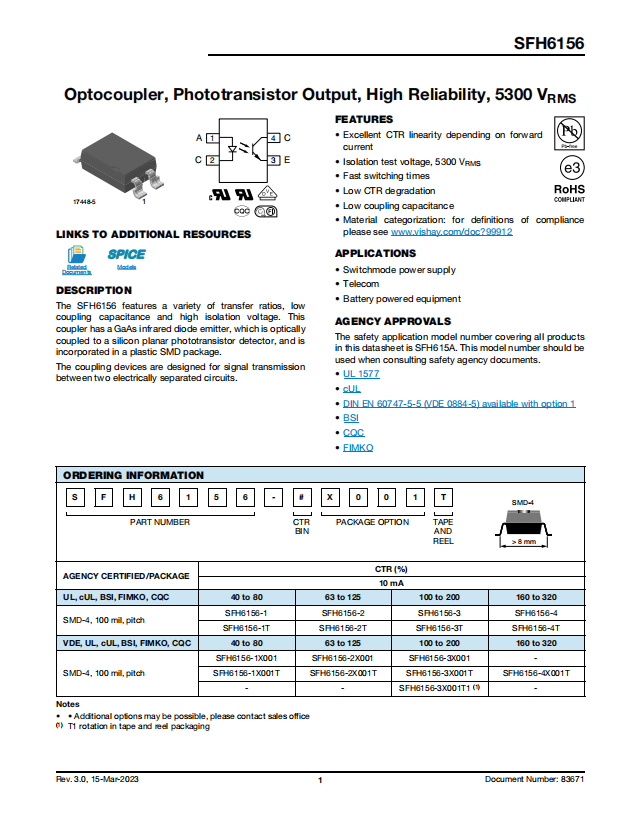

Product Data Book：
For more product information, please download the PDF
