Professional supply integrated circuit IC PDTC114YT 50 V 100 mA NPN resistor-equipped transistor R1 10 kΩ, R2 47 kΩ TO-236AB

PDTC114YT

Model:PDTC114YT

Manufacturer:Nexperia

Package:TO-236AB

Detail

Product Descriptions


NPN Resistor-Equipped Transistor (RET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.


PNP complement: PDTA114YT


Product Feature


• 100 mA output current capability

• Built-in bias resistors

• Simplifies circuit design

• Reduces component count

• Reduces pick and place costs


Product Applications


• Digital application in industrial segments

• Cost-saving alternative for BC847 series in digital applications

• Controlling IC inputs

• Switching loads


Specifications


Attribute Attribute value
ANSM-Part# ANSM-PDTC114YT
Category Discrete Semiconductor Products
Transistors
Bipolar (BJT)
Single, Pre-Biased Bipolar Transistors
Mfr Nexperia USA Inc.
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
/
Product Status Active
Transistor Type NPN - Pre-Biased
Current - Collector (Ic) (Max) 100 mA
Voltage - Collector Emitter Breakdown (Max) 50 V
Resistor - Base (R1) 10 kOhms
Resistor - Emitter Base (R2) 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic 100mV @ 250µA, 5mA
Current - Collector Cutoff (Max) 1µA
Power - Max 250 mW
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package TO-236AB
Base Product Number PDTC114

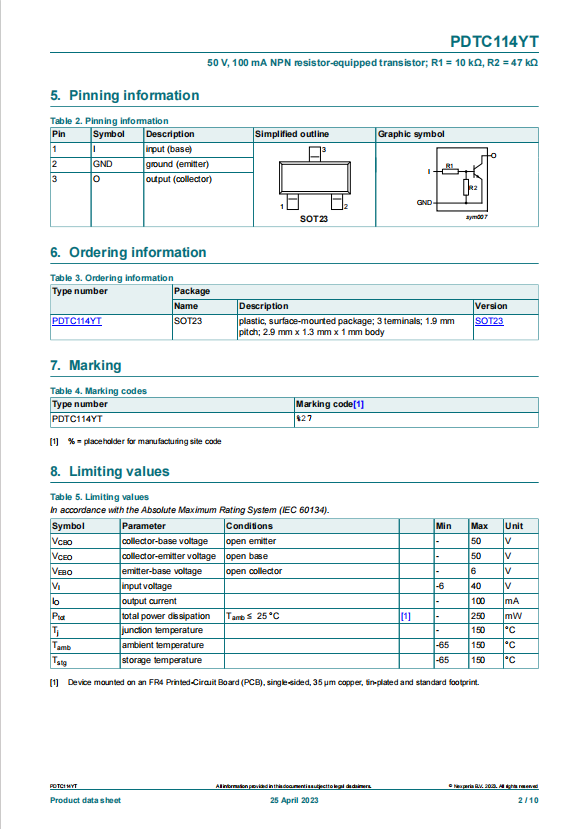

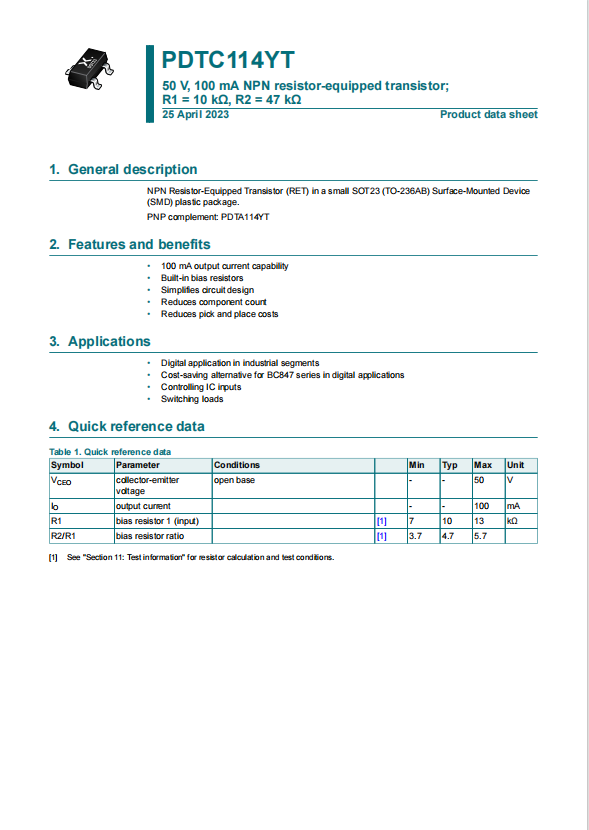

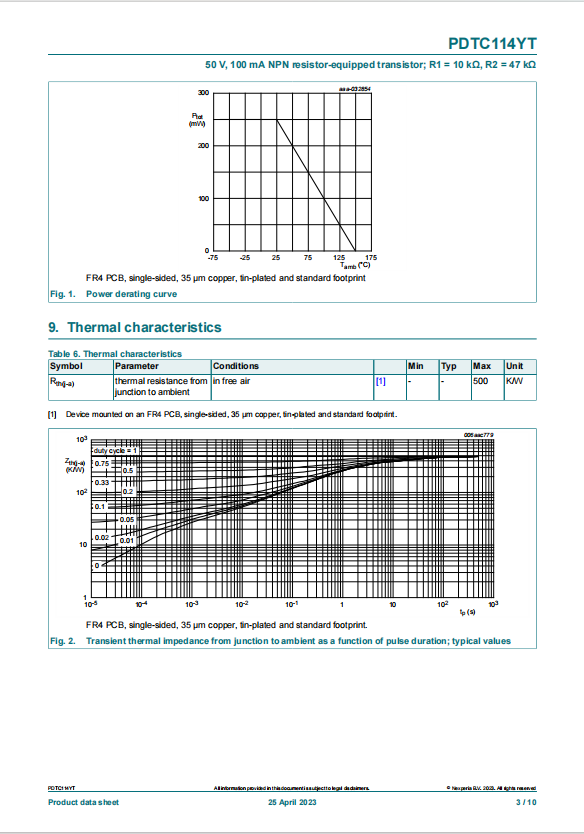

Actual product photos


PDTC114YT   2

Product Data Book:

For more product information, please download the PDF
