Product Feature
• High blocking voltage capability
• Less sensitive gate for improved noise immunity
• Planar passivated for voltage ruggedness and reliability
• Surface-mountable package
• Triggering in all four quadrants
Product Applications
• General purpose motor controls
• General purpose switching
Product DESCRIPTION
Planar passivated four quadrant triac in a SOT404 (D2PAK) surface-mountable plastic package intended for use in general purpose bidirectional switching and phase control applications.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BT137B-600F |
| Category | Discrete Semiconductor Products |
| Thyristors | |
| TRIACs | |
| Mfr | WeEn Semiconductors |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Triac Type | Standard |
| Voltage - Off State | 600 V |
| Current - On State (It (RMS)) (Max) | 8 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 65A, 71A |
| Current - Gate Trigger (Igt) (Max) | 25 mA |
| Current - Hold (Ih) (Max) | 20 mA |
| Configuration | Single |
| Operating Temperature | 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK |
| Base Product Number | BT137 |

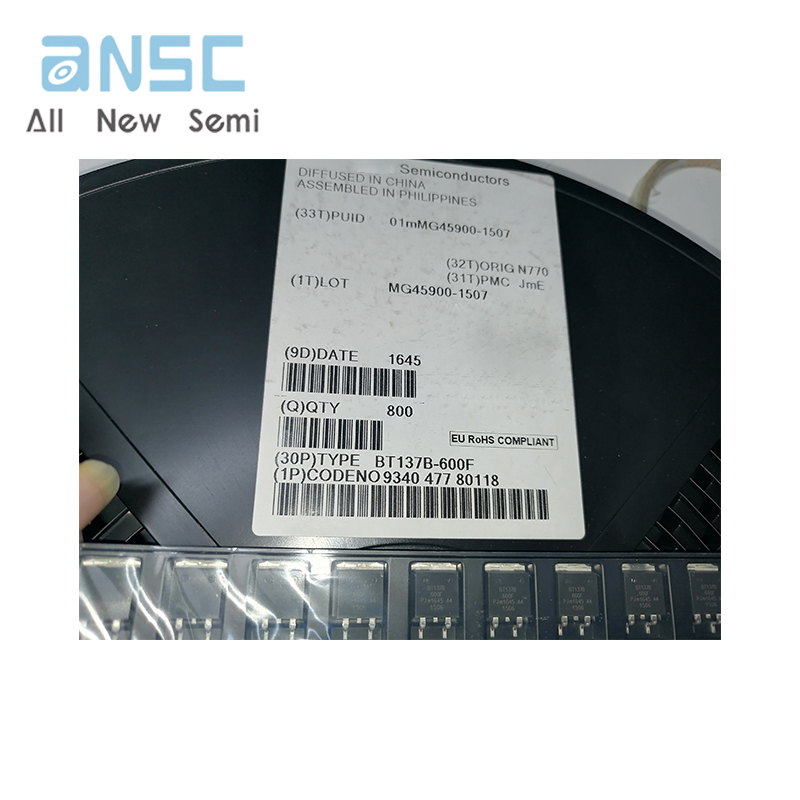

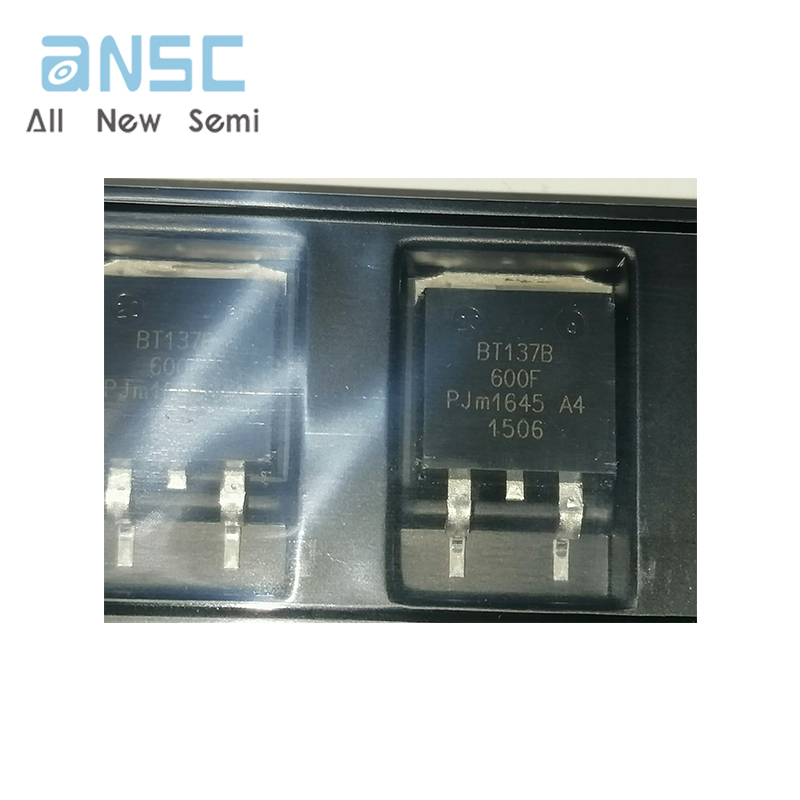

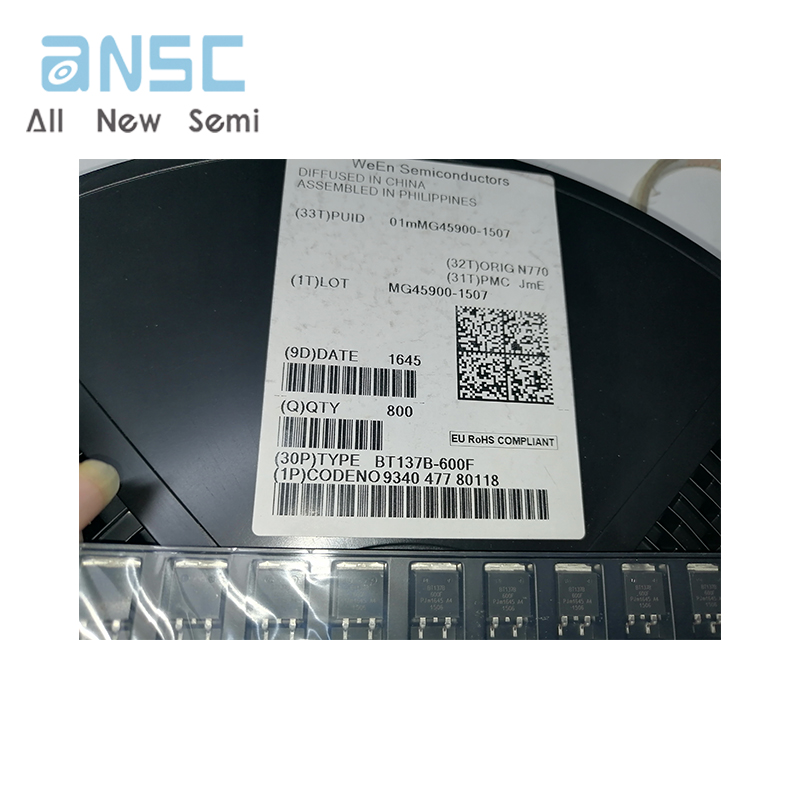

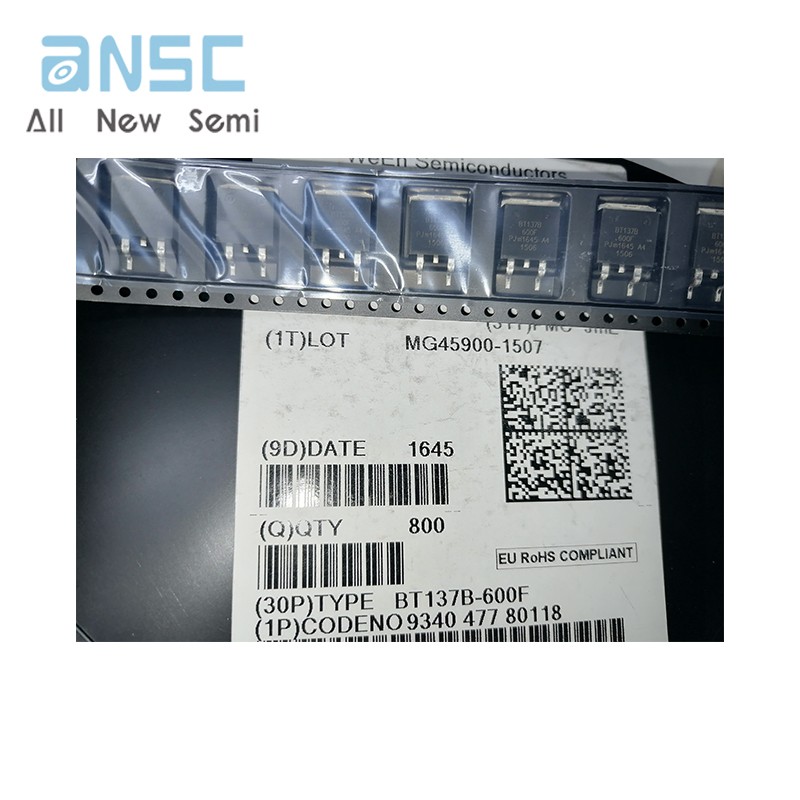

Actual product photos

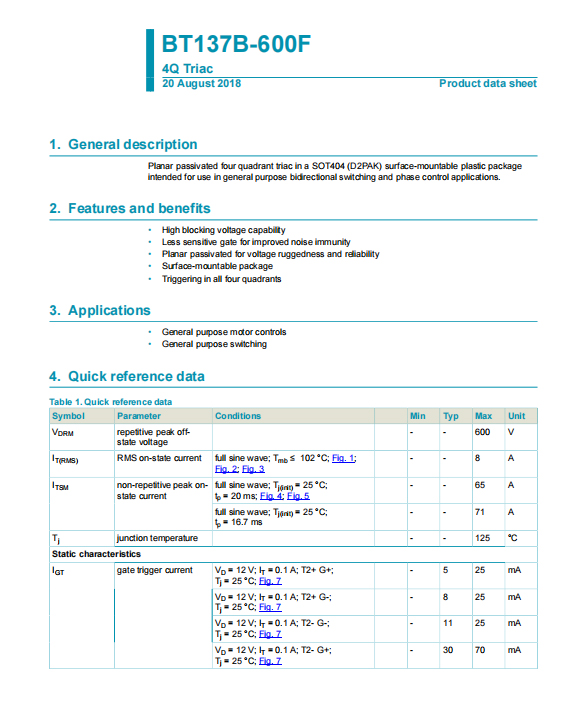

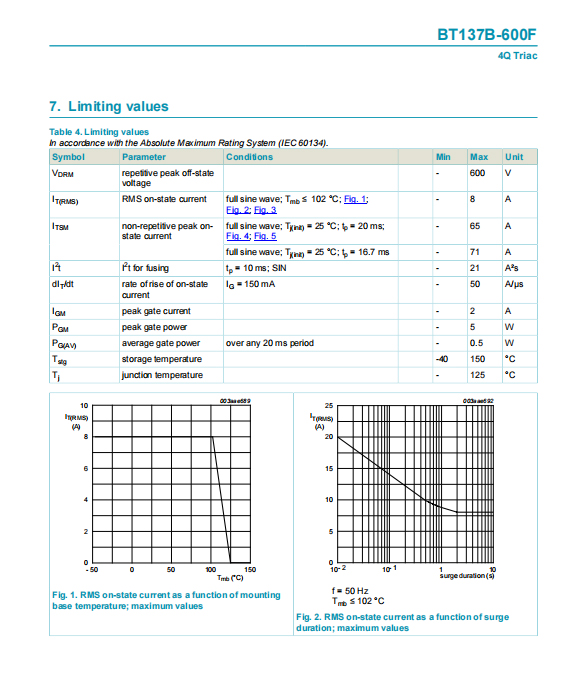

Product Data Book：
For more product information, please download the PDF
