Product Details
50 Watt AC-DC Converters
Input voltage range 85...264 V AC
1, 2 or 3 isolated outputs up to 48 V DC
4 kV AC I/O electric strength test voltage
electrical and mechanical design
• Outputs individually controlled with excellent dynamic properties
• Operating ambient temperature range –40...71°C with convection cooling
Product Description
| Type# | Description |
| ANSC PART# | ANSC-LMZ21701SILT |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | / |
| Series | SIMPLE SWITCHER® Nano |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 17V |
| Voltage - Output 1 | 0.9 ~ 6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 1A |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, SCP, UVLO |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | 95% |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module |
| Size / Dimension | 0.14" L x 0.14" W x 0.07" H (3.5mm x 3.5mm x 1.8mm) |
| Control Features | Enable, Active High |
| Base Product Number | LMZ21701 |

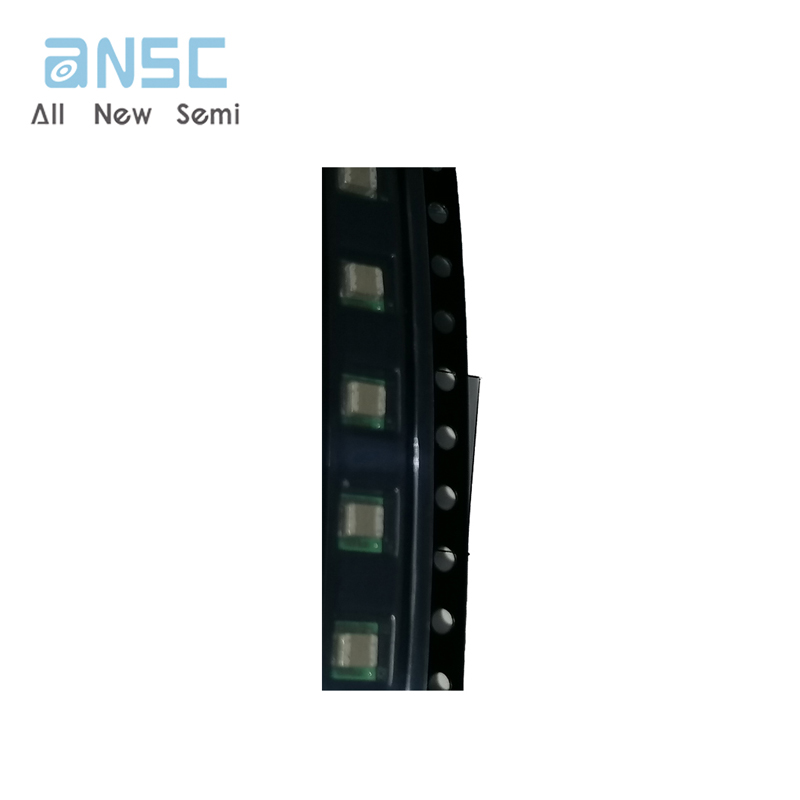

Product Photos

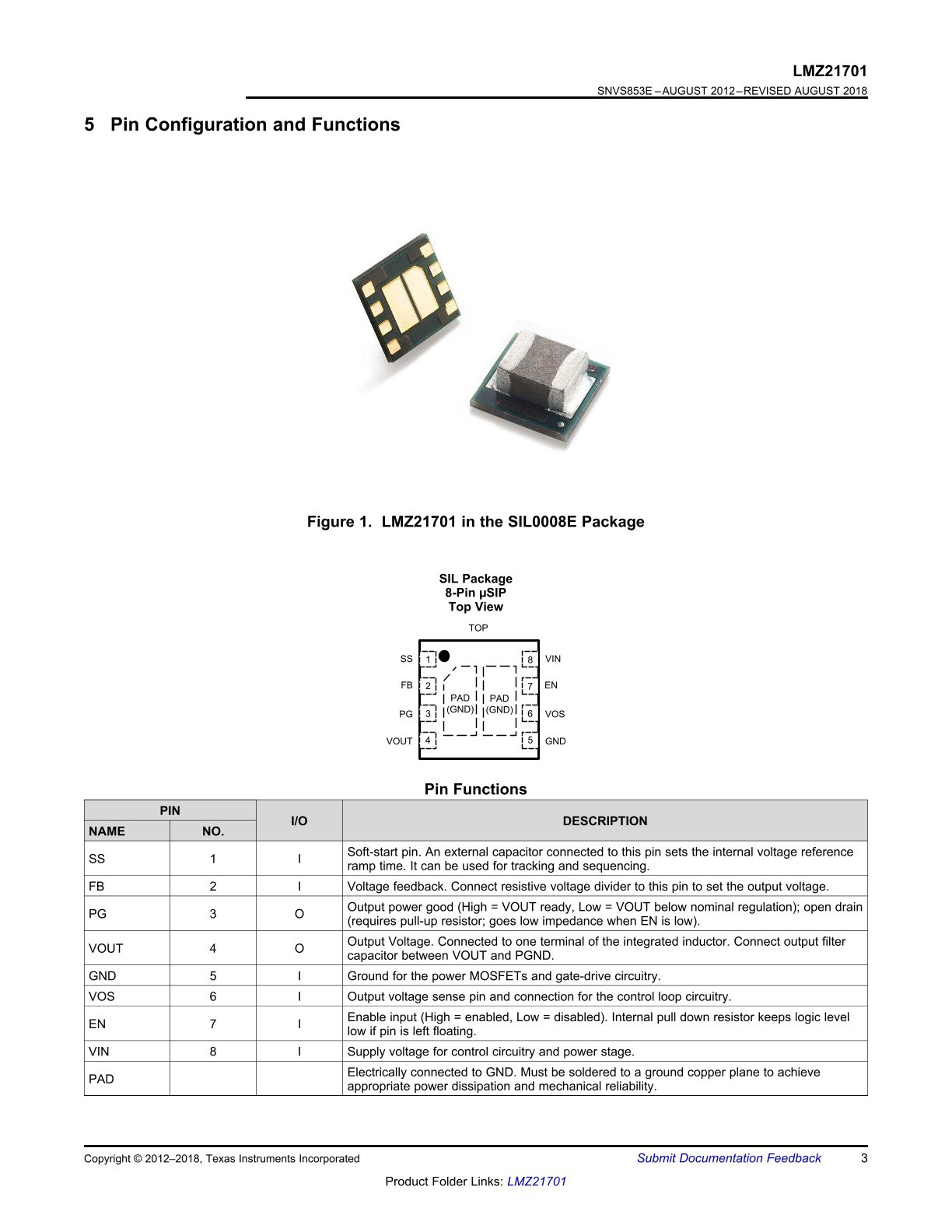

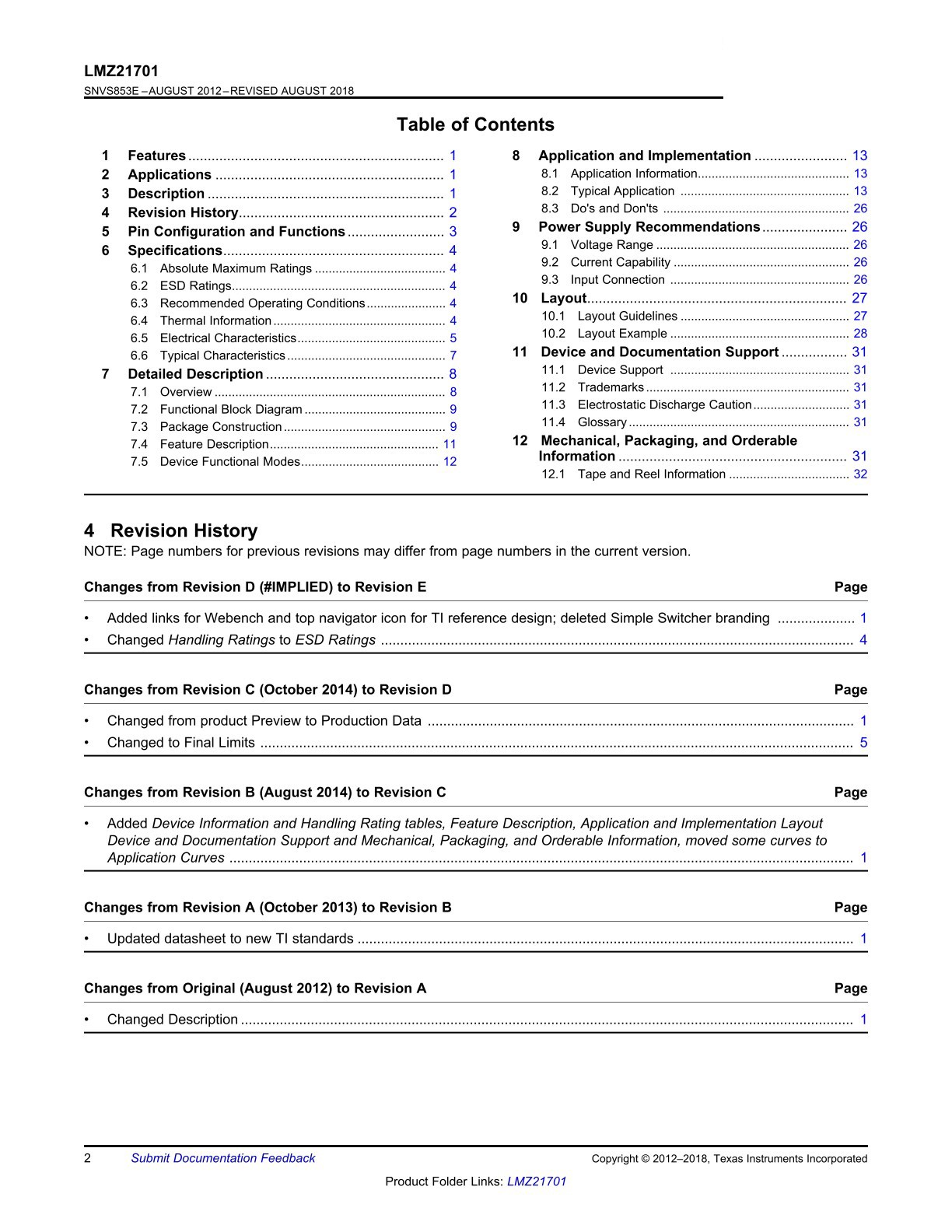

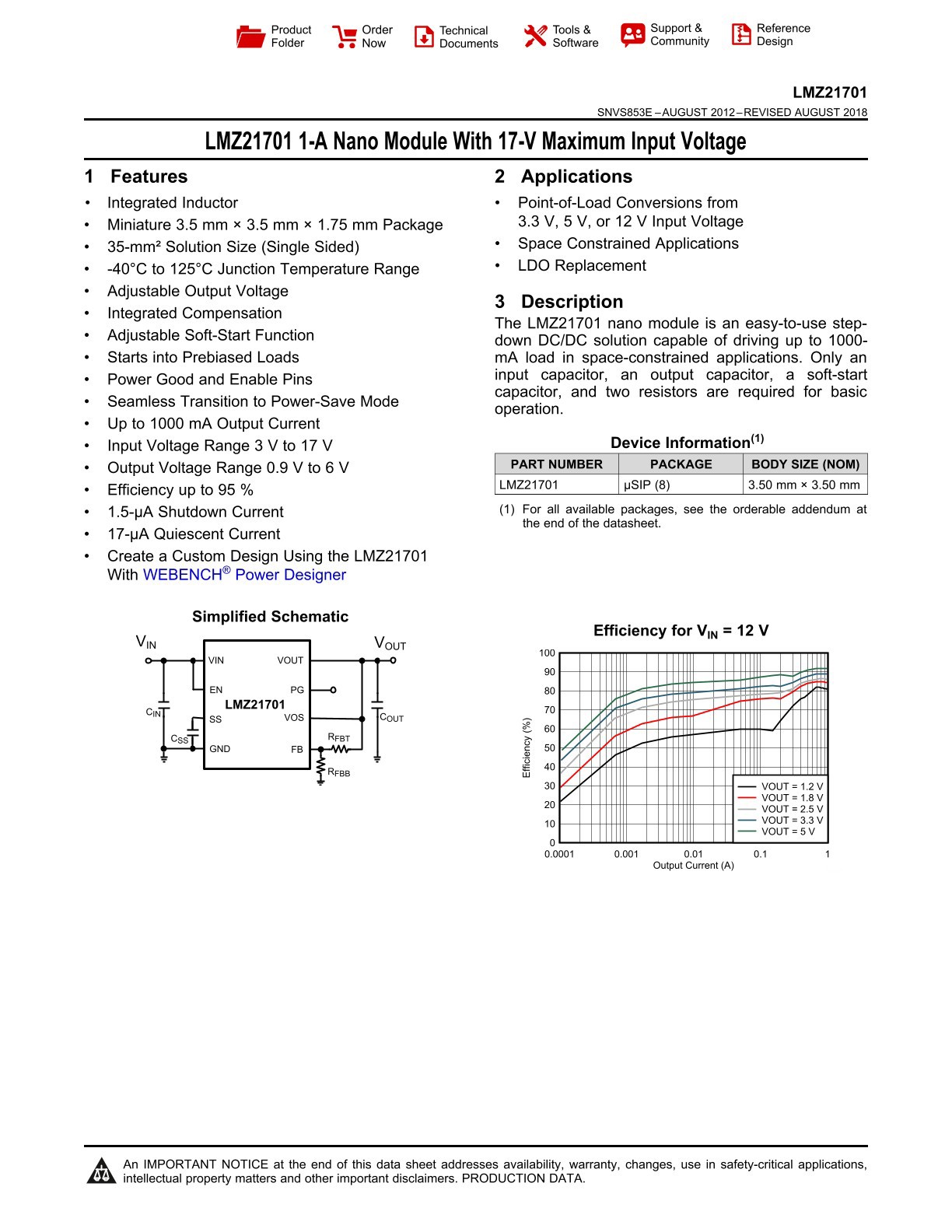

Product datasheet
For more information, please download
