Product Details
FEATURES
• Hermetically sealed
• Breakdown voltage range 6.8 - 200 volts
• Glass passivated junction
• Excellent clamping capability
• Low zener impedance
• 100% surge tested
• -55°C to +150°C
• Uni-polar
Product Description
| Type | Description |
| ANSC PART# | ANSC - 1N5637A |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | / |
| Series | - |
| Packaging | Bulk |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 12.8V |
| Voltage - Breakdown (Min) | 14.3V |
| Voltage - Clamping (Max) @ Ipp | 21.2V |
| Current - Peak Pulse (10/1000µs) | 71A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-202AA, DO-13, Axial |
| Supplier Device Package | DO-13 (DO-202AA) |
| Base Product Number | 1N5637 |

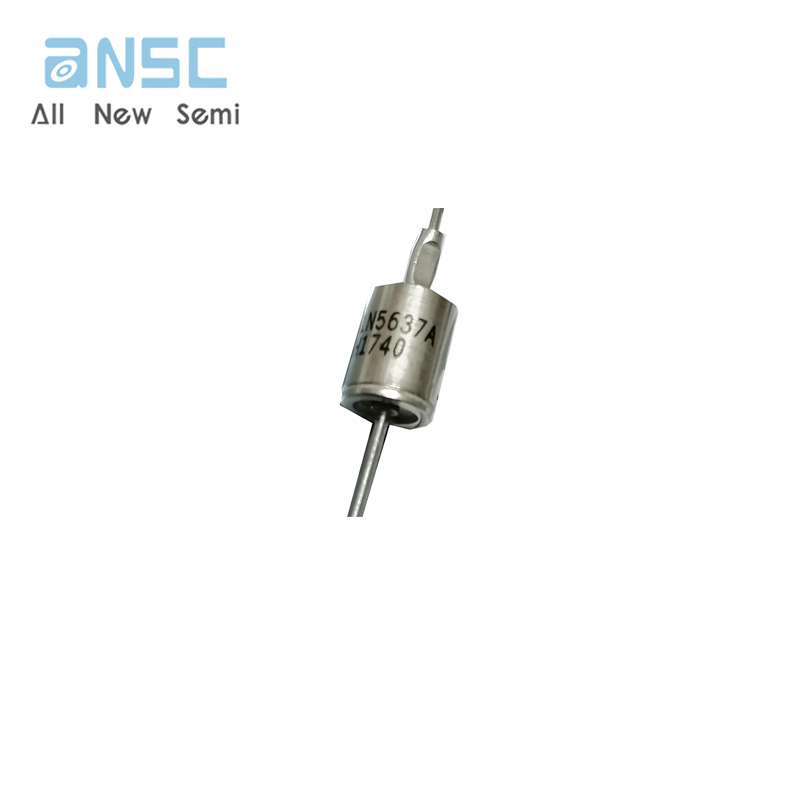

Actual image of the product

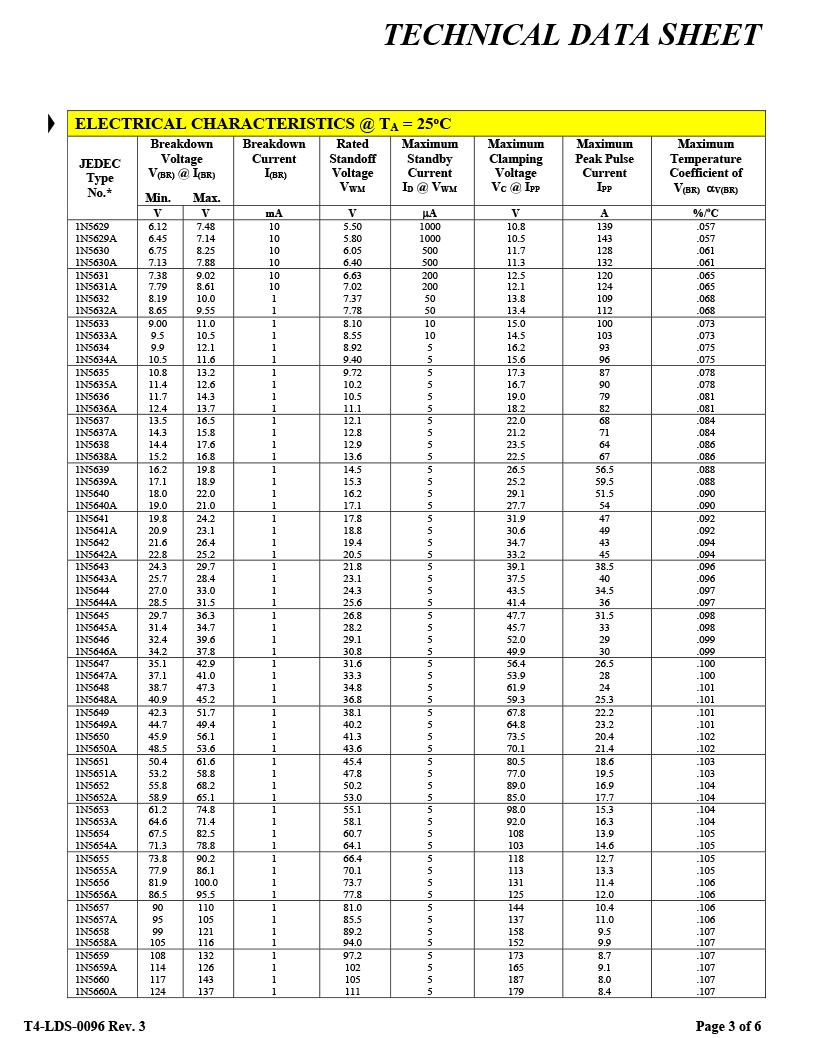

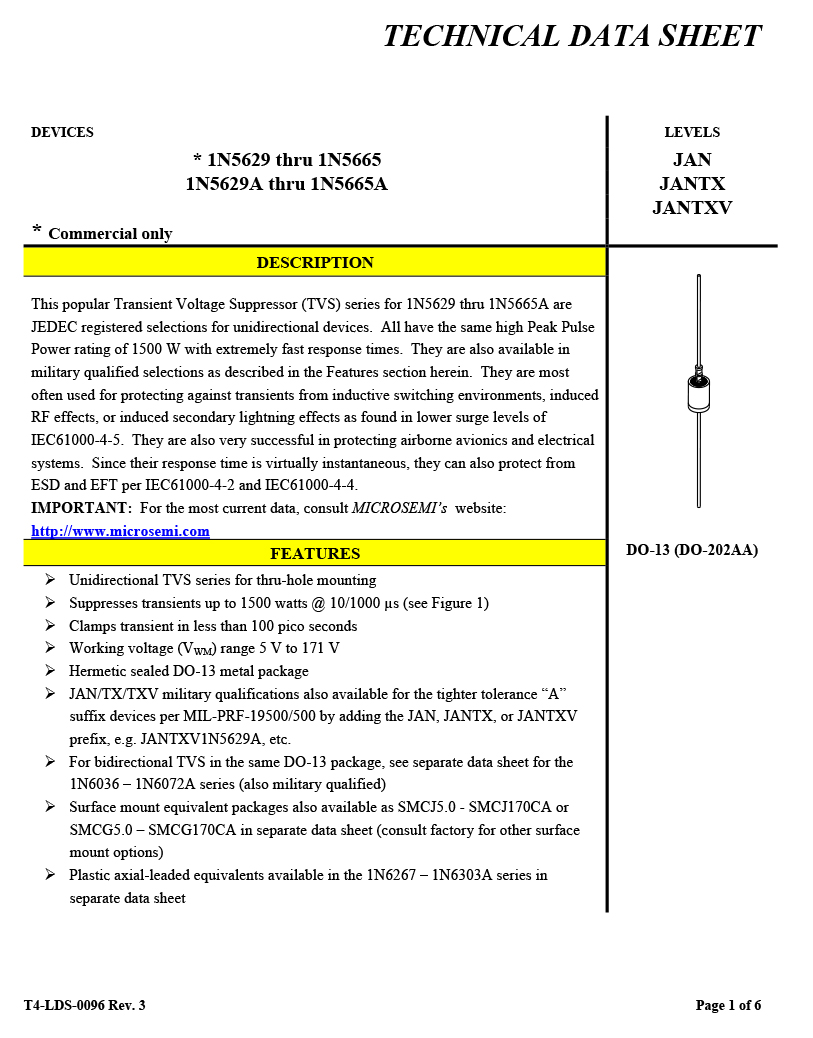

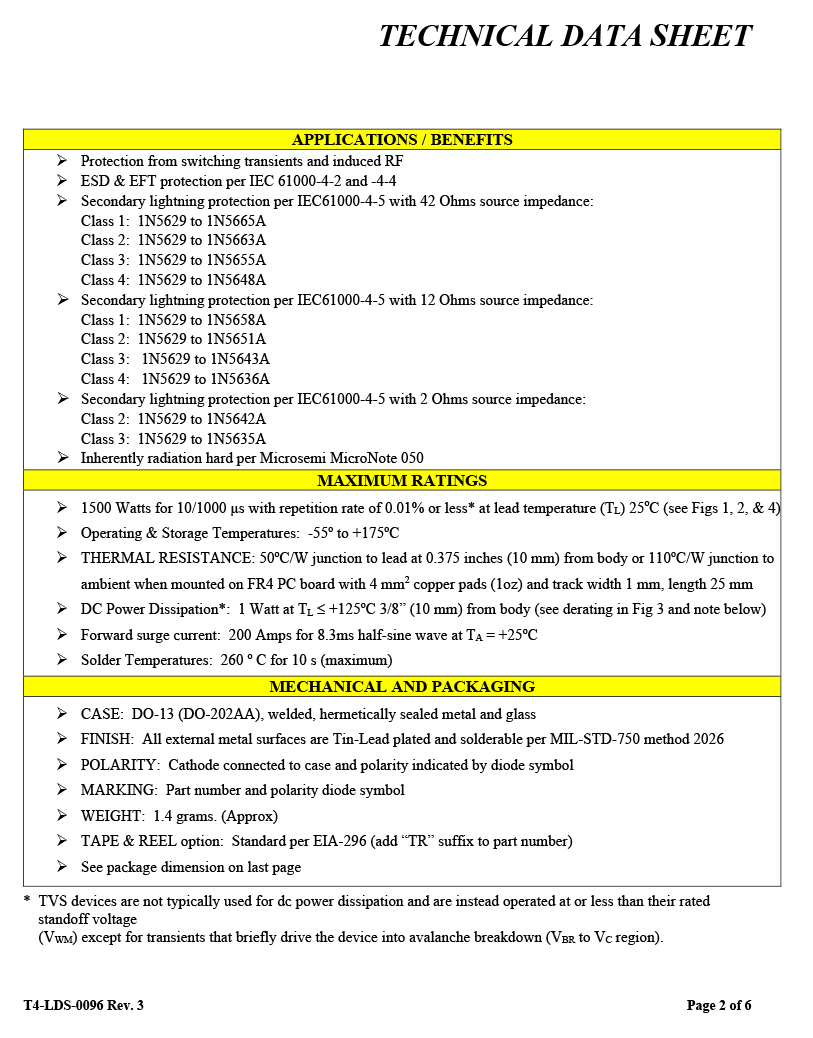

Product datasheet
For more information, please download
