Product Details
DESCRIPTION
The popular 1N746 thru 1N759A and 1N4370 thru 1N4372A series of 0.5 watt Zener Voltage Regulators provides a selection from 2.4 to 12 volts in standard 5% or 10% tolerances as well as tighter tolerances identified by different suffix letters on the part number. These glass axial-leaded DO-35 Zeners are also available with an internal-metallurgical-bond option by adding a “-1” suffix. These are also available in JAN, JANTX, and JANTXV military qualifications. Microsemi also offers numerous other Zener products to meet higher and lower power applications.
FEATURES
• JEDEC registered 1N746 thru 1N759A and 1N4370
thru 1N4372A series
• Internal metallurgical bond option available by adding
a “-1” suffix
• Also available in JAN, JANTX, and JANTXV
qualifications per MIL-PRF-19500/127 by adding the
JAN, JANTX, or JANTXV prefixes to part numbers for
desired level of screening as well as –1” suffix; (e.g.
JANTX1N751A-1, JANTXV1N758C-1, etc.)
• Military Surface Mount equivalents also available in
DO-213AA by adding a UR-1 suffix in addition to the
JAN, JANTX, and JANTXV prefix; e.g.
JANTX1N962BUR-1 (see separate data sheet)
• Commercial Surface Mount equivalents available as
MLL746 to MLL759A and MLL4370 to MLL4372A
including the “-1” suffix in the DO-213AA MELF style
package (consult factory for others)
• DO-7 glass body axial-leaded Zener equivalents are
also available
APPLICATIONS / BENEFITS
• Regulates voltage over a broad operating
current and temperature range
• Selection from 2.4 to 12 V
• Standard voltage tolerances are plus/minus 5%
with A suffix identification and 10 % with no suffix
• Tight tolerances available in plus or minus 2%
or 1% with C or D suffix respectively
• Flexible axial-lead mounting terminals
• Nonsensitive to ESD per MIL-STD-750 Method
1020
• Minimal capacitance (see Figure 3)
• Inherently radiation hard as described in Microsemi
MicroNote 050
Product Description
| Type | Description |
| ANSC PART# | ANSC - JANTX1N753A-1 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr |
/ |
| Series | - |
| Packaging | Bulk |
| Part Status | Active |
| Voltage - Zener (Nom) (Vz) | 6.2 V |
| Tolerance | ±5% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 3 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 3.5 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Operating Temperature |
-65°C ~ 175°C |
| Grade | Military |
| Qualification | MIL-PRF-19500/127 |
| Mounting Type | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-204AH (DO-35) |
| Base Product Number | 1N753 |

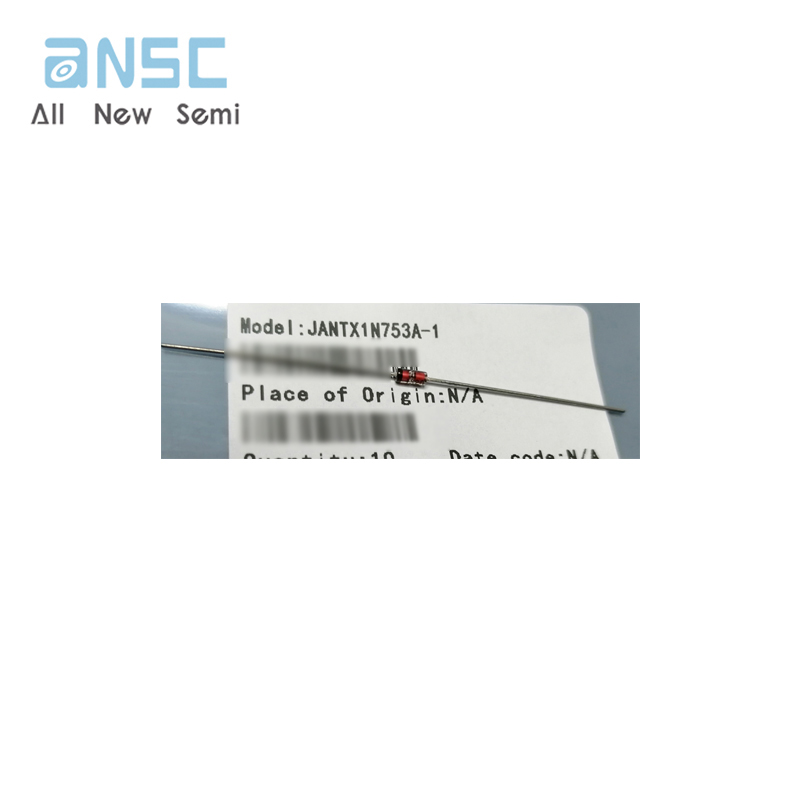

Actual image of the product

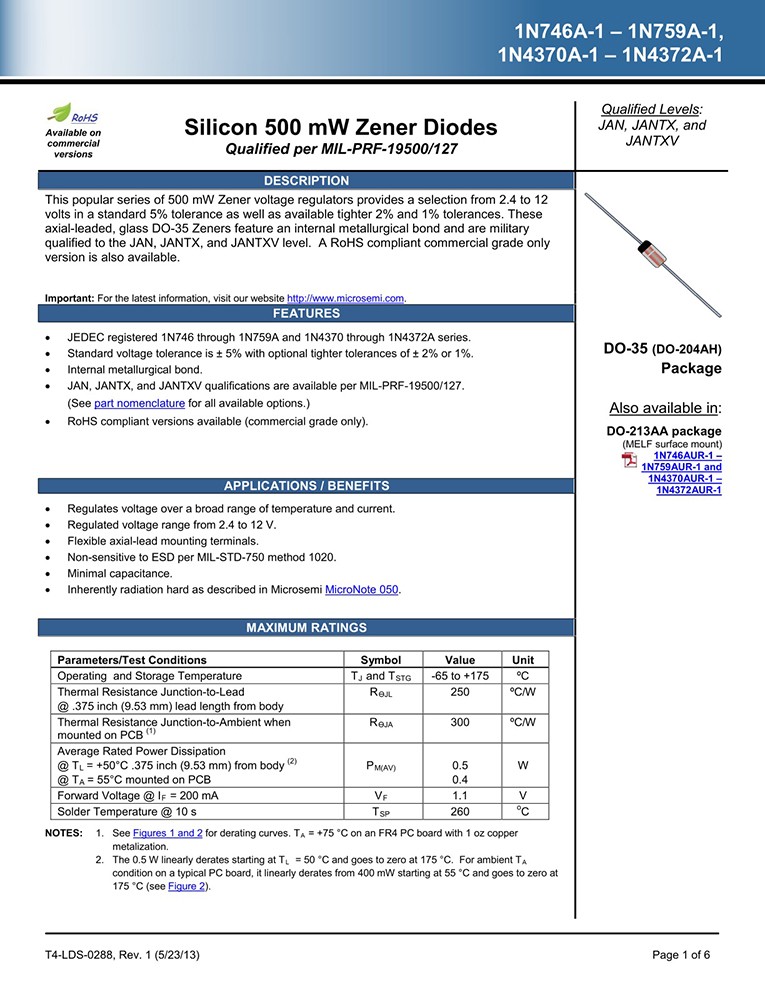

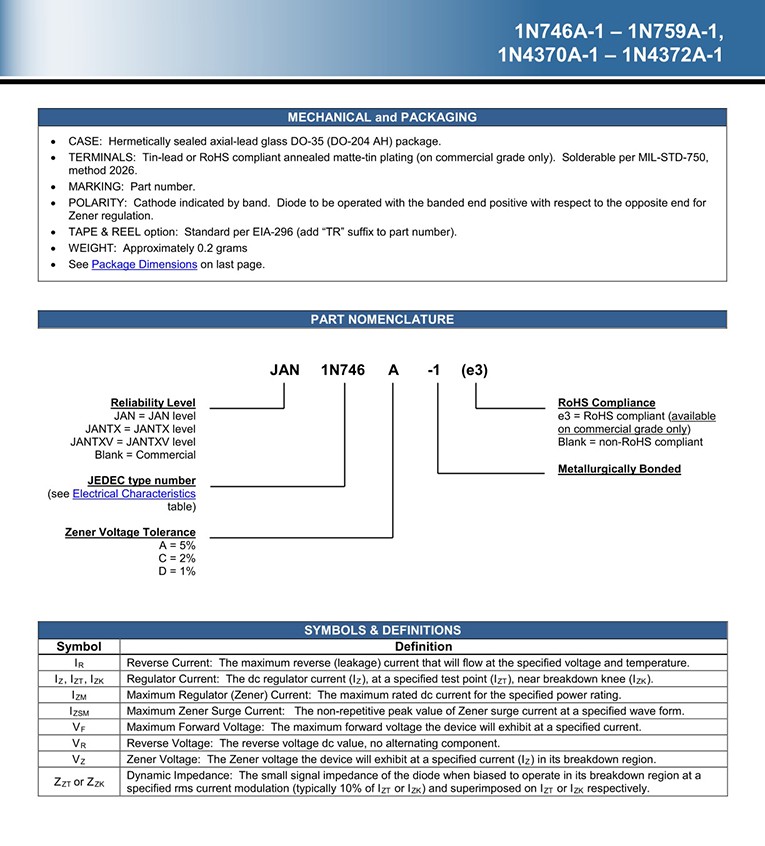

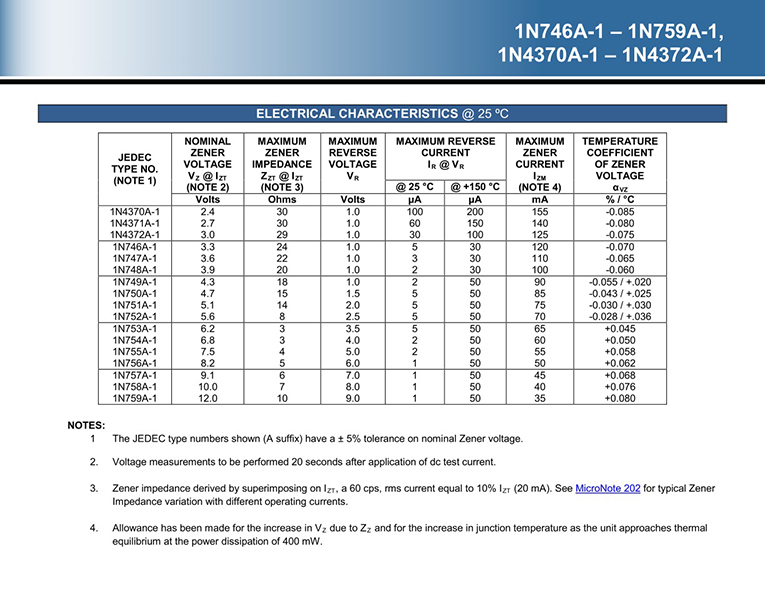

Product datasheet
For more information, please download
