Transient Voltage Suppressors ESD Protection Diodes with Ultra−Low Capacitance The ESD9L Series is designed to protect voltage sensitive components that require ultra−low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high speed and antenna line applications. Specification Features: • Ultra Low Capacitance 0.5 pF • Low Clamping Voltage • Small Body Outline Dimensions: 0.039″ x 0.024″ (1.00 mm x 0.60 mm) • Low Body Height: 0.016″ (0.4 mm) • Stand−off Voltage: 3.3 V, 5 V • Low Leakage • Response Time is Typically < 1.0 ns • IEC61000−4−2 Level 4 ESD Protection • S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • This is a Pb−Free Device |

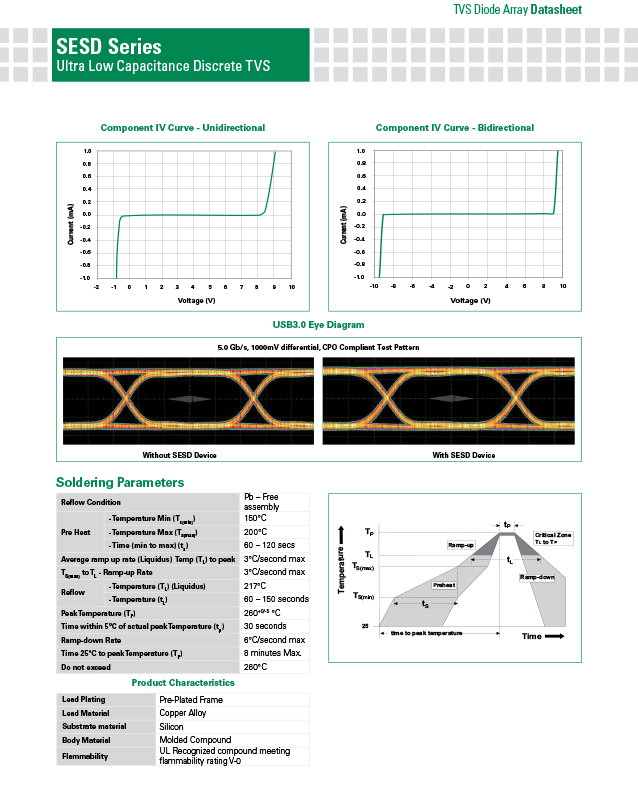

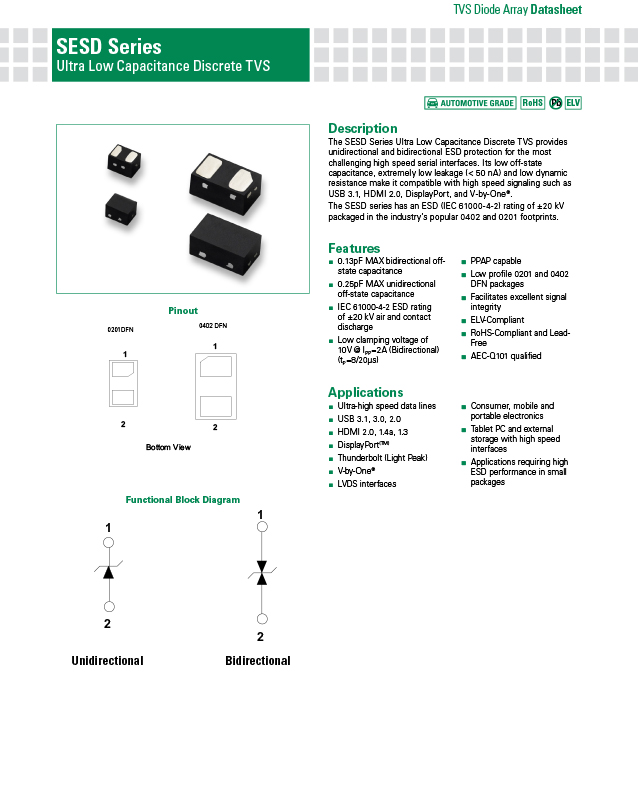

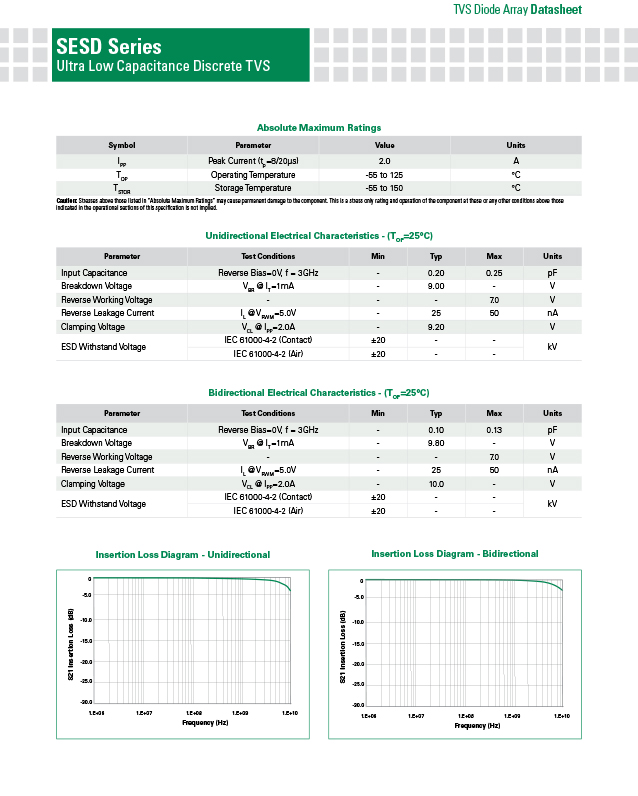

Product Description
| Type | Description |
| ANSC PART# | ANSC - SESD0402X1BN-0010-098 |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Original |
| Series | SESD, SPA® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 7V (Max) |
| Voltage - Breakdown (Min) | 9.8V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 10V (Typ) |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | HDMI |
| Capacitance @ Frequency | 0.1pF @ 3GHz |
| Operating Temperature |
-55°C ~ 125°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Package / Case | 2-XDFN |
| Supplier Device Package | 402 |

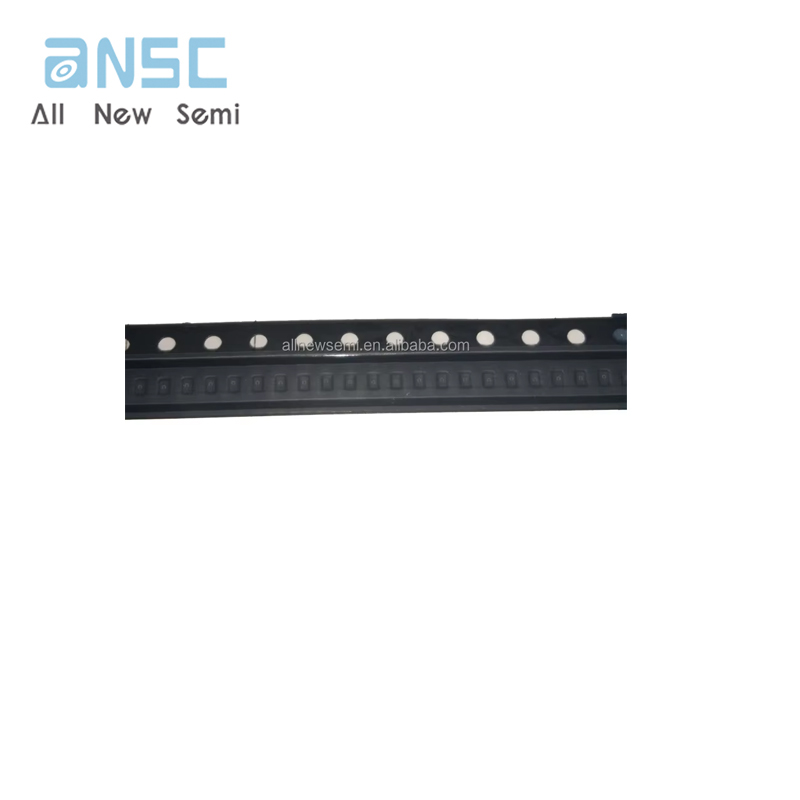

Actual image of the product
