Product Details
|
Description The EMS22A50-B28-LS6 is a high-precision, magnetic rotary position encoder designed . This encoder is part of the EMS22A50 series, known for its reliability and accuracy in various industrial applications. The EMS22A50-B28-LS6 features a compact 1/4 diameter round end actuator type, making it ideal for panel mounting configurations. Features Magnetic Encoder Type: The EMS22A50-B28-LS6 utilizes a magnetic encoder technology, ensuring high accuracy and durability. Binary Absolute Output: The encoder provides binary absolute output, providing clear and precise position data. High Pulse Resolution: With 1024 pulses per revolution, this encoder offers high-resolution position measurement. Wide Temperature Range: Operating between -40°C and 125°C, this encoder can handle demanding environmental conditions. Low Moisture Sensitivity: Classified as MSL 1 (Unlimited), the EMS22A50-B28-LS6 is suitable for use in environments with high humidity. ROHS3 Compliant: Meets the requirements of ROHS3, ensuring compliance with environmental regulations. Long Rotational Life: Designed to withstand up to 100 million cycles, this encoder is built for long-term reliability. Applications Primary Applications: Industrial Automation: The EMS22A50-B28-LS6 is commonly used in industrial automation systems where precise position control is critical. Robotics: Its high accuracy and reliability make it an excellent choice for robotic systems requiring precise movement control. Medical Devices: Used in medical devices that require precise positioning, such as surgical equipment or diagnostic machines. Secondary Applications: Automotive Systems: Can be used in automotive systems where precise position sensing is necessary, such as in gear shifters or throttle position sensors. Aerospace: Due to its high reliability and precision, it can be used in aerospace applications where precise control is essential. |
Product Description
| Type | Description |
| ANSC PART# | ANSC -EMS22A50-B28-LS6 |
| Category | Sensors, Transducers |
| Encoders | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Encoder Type | Magnetic |
| Output Type | Binary (Absolute) |
| Pulses per Revolution | 1024 |
| Voltage - Supply | 5V |
| Actuator Type | 1/4" Dia Round End |
| Detent | No |
| Built in Switch | - |
| Mounting Type | Panel Mount |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Rotational Life (Cycles Min) | 100M |
| Base Product Number | EMS22A50 |

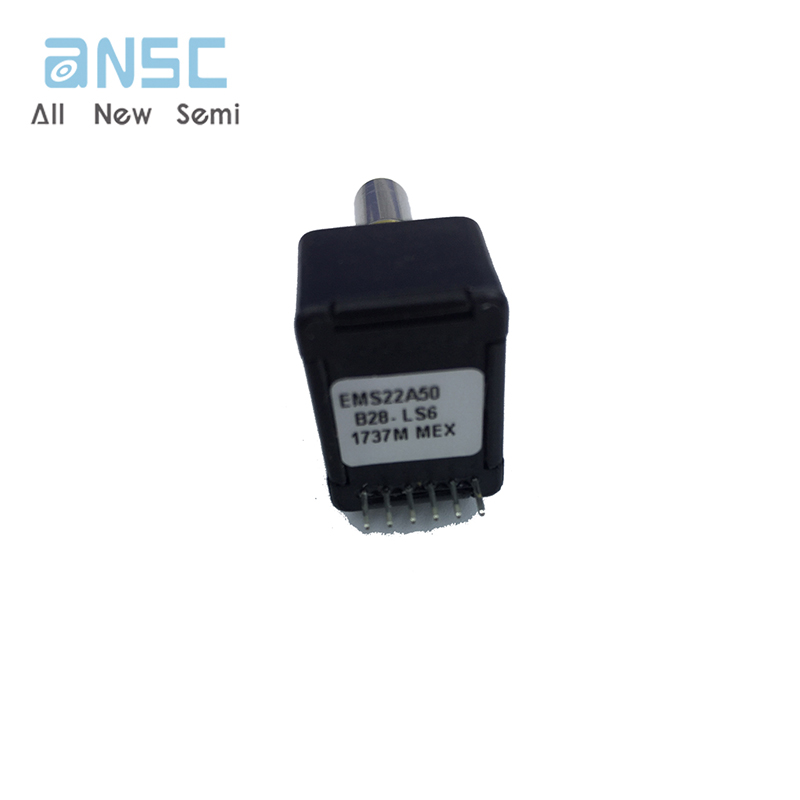

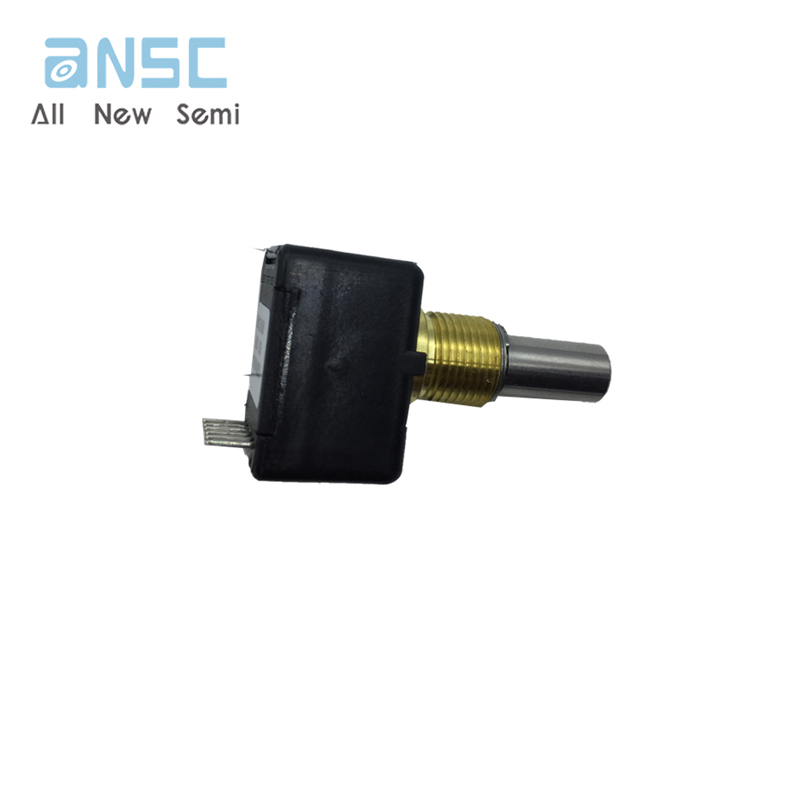

Actual image of the product

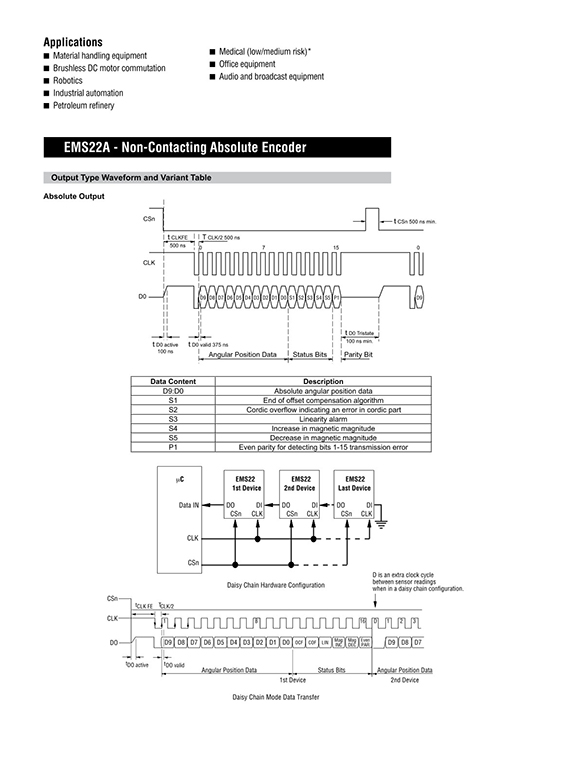

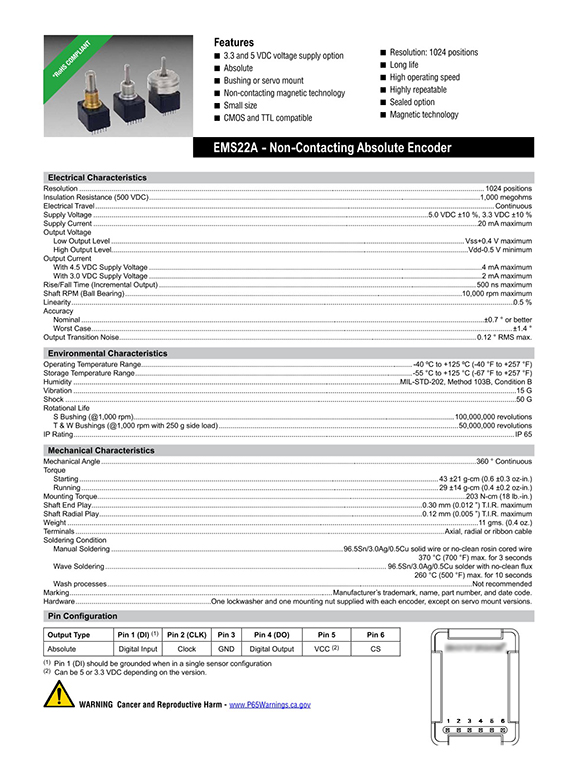

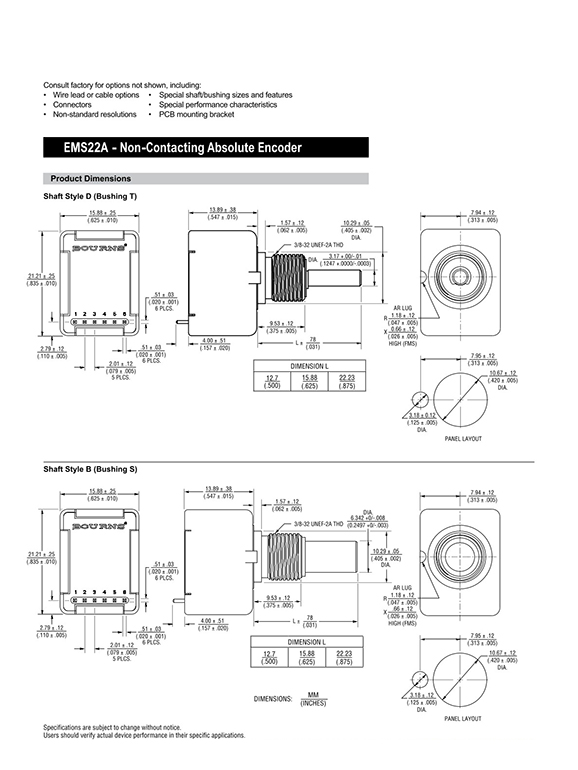

Product datasheet
For more information, please download
