Product Details

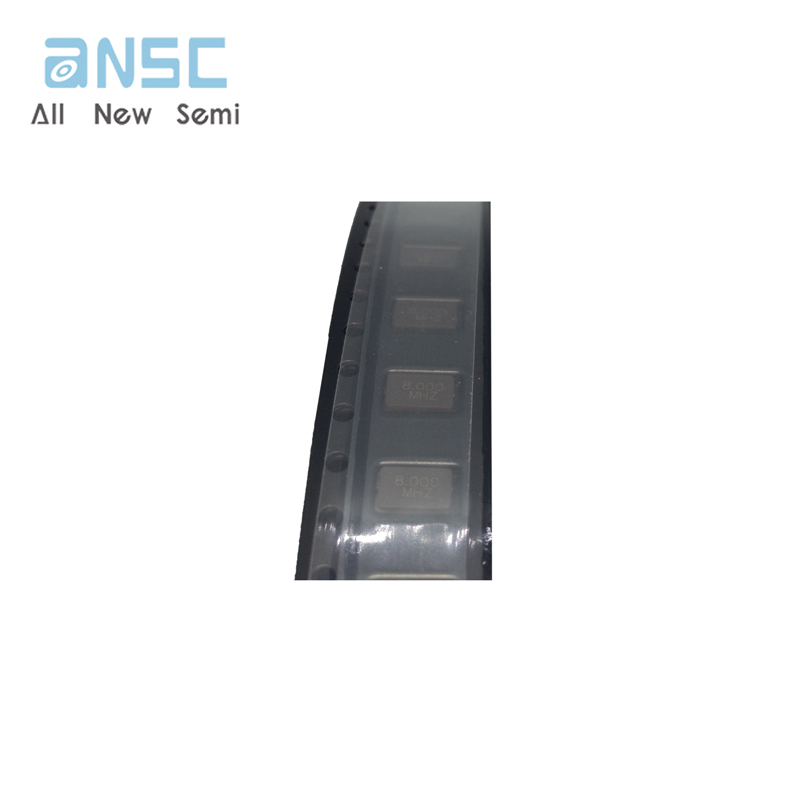

ABM3-8.000MHZ-D2Y-T Description
The ABM3 Series miniature ceramic SMD Crystal Oscillator works at a frequency range of 8 to 54MHz with fundamental or 3rd overtone operation mode.
ABM3-8.000MHZ-D2Y-T Features
AT-cut fundamental or 3rd OT mode
Suitable for RoHS reflow profile
Tight stability available ±10
Ceramic package hermetically glass sealed assures high precision and reliability
ABM3-8.000MHZ-D2Y-T Applications
Pagers
Cellular telephones
PCMCIA applications.
Product Description
Product Attributes
TYPE | DESCRIPTION |
|---|---|
| ANSC PART# | ANSC - ABM3-8.000MHZ-D2Y-T |
Category | Crystals, Oscillators, Resonators Crystals |
Mfr | Abracon LLC |
Series | ABM3 |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Type | MHz Crystal |
Frequency | 8 MHz |
Frequency Stability | ±30ppm |
Frequency Tolerance | ±20ppm |
Load Capacitance | 18pF |
ESR (Equivalent Series Resistance) | 140 Ohms |
Operating Mode | Fundamental |
Operating Temperature | -40°C ~ 85°C |
Ratings | - |
Mounting Type | Surface Mount |
Package / Case | 2-SMD, No Lead |

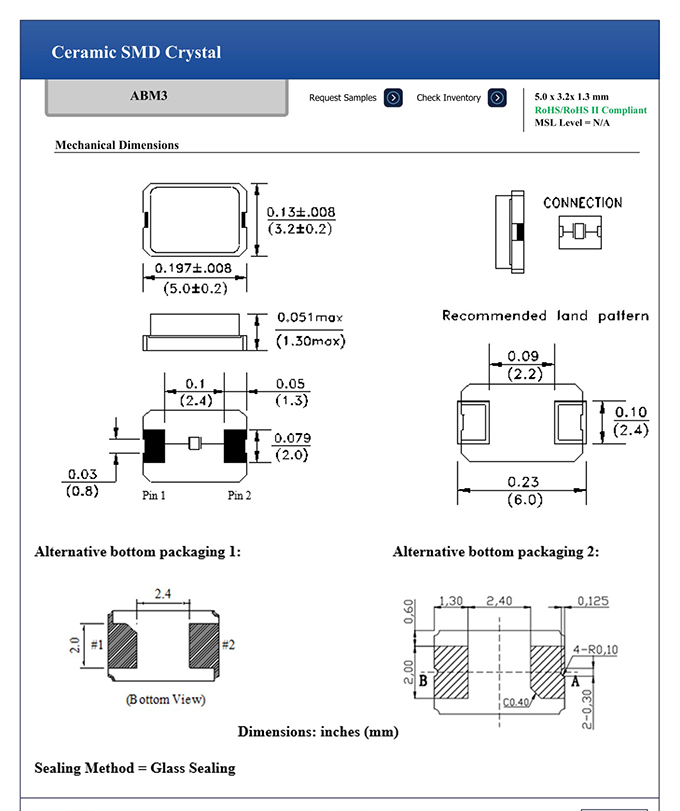

Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
Height - Seated (Max) | 0.051" (1.30mm) |

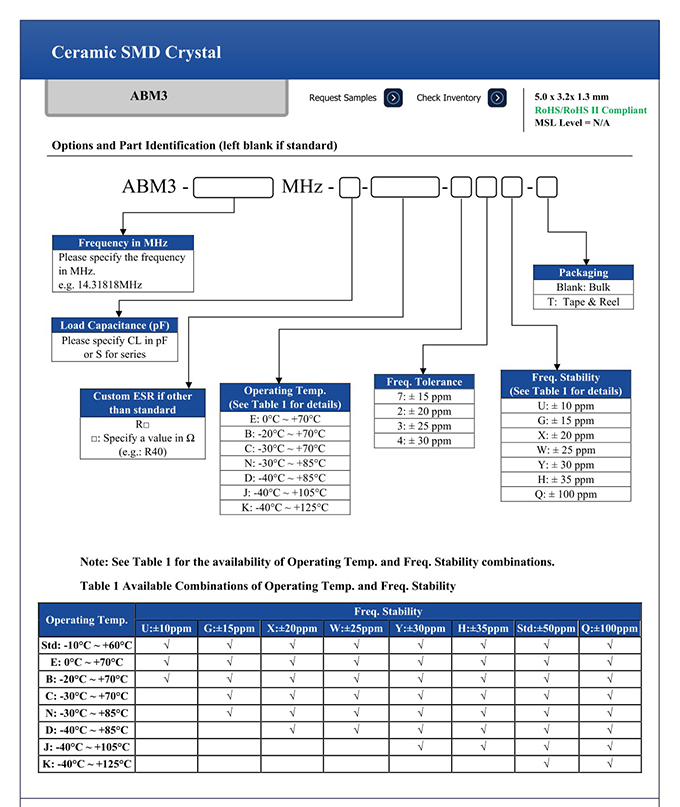

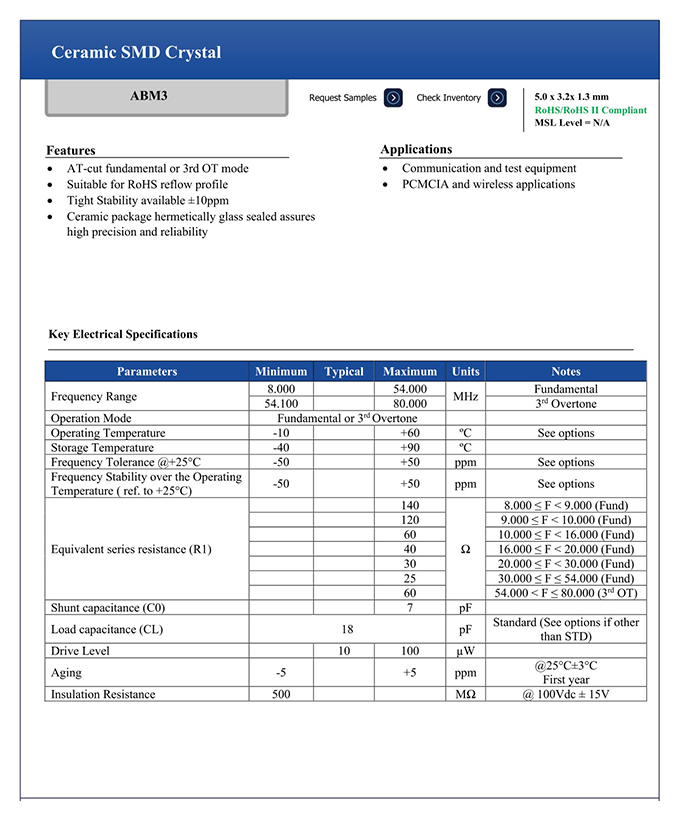

Product datasheet
For more information, please download
