Product Overview
200V is a reasonable reverse voltage.There is an average rectified current of 10A volts for this device.The allowable value of forward current reaches 10A.In the datasheets, the peak reverse is 100μA, as indicated by the data chart.
Product Features
an average rectified current of 10A volts
the peak reverse is 100μA
Product Applications
SBR10U200P5-13 applications of single-phase diode rectifier.
· DC motor control and drives
· Battery chargers
· Welders
· Power converters
· Reverse Polarity Protection
· Ultra High-Speed Switching
· Freewheeling
· Polarity Protection Diode
· Recirculating Diode
· Switching Diode
Product Description
| Type | Description |
| ANSC PART# | ANSC - SBR10U200P5-13 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | - |
| Series | SBR® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Technology | Super Barrier |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 880 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 µA @ 200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | PowerDI™ 5 |
| Supplier Device Package | PowerDI™ 5 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | SBR10 |

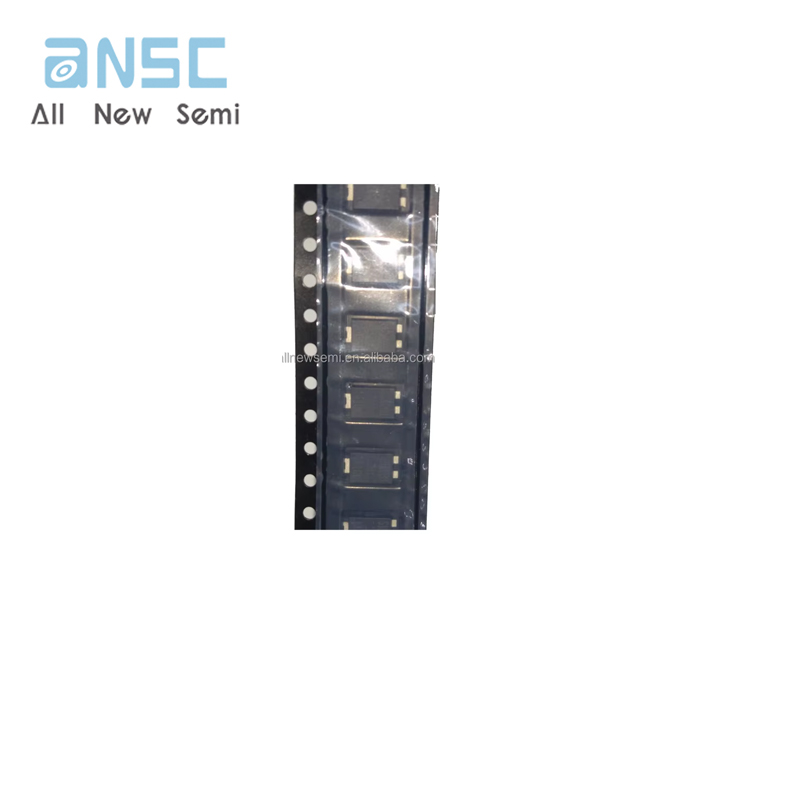

Actual image of the product

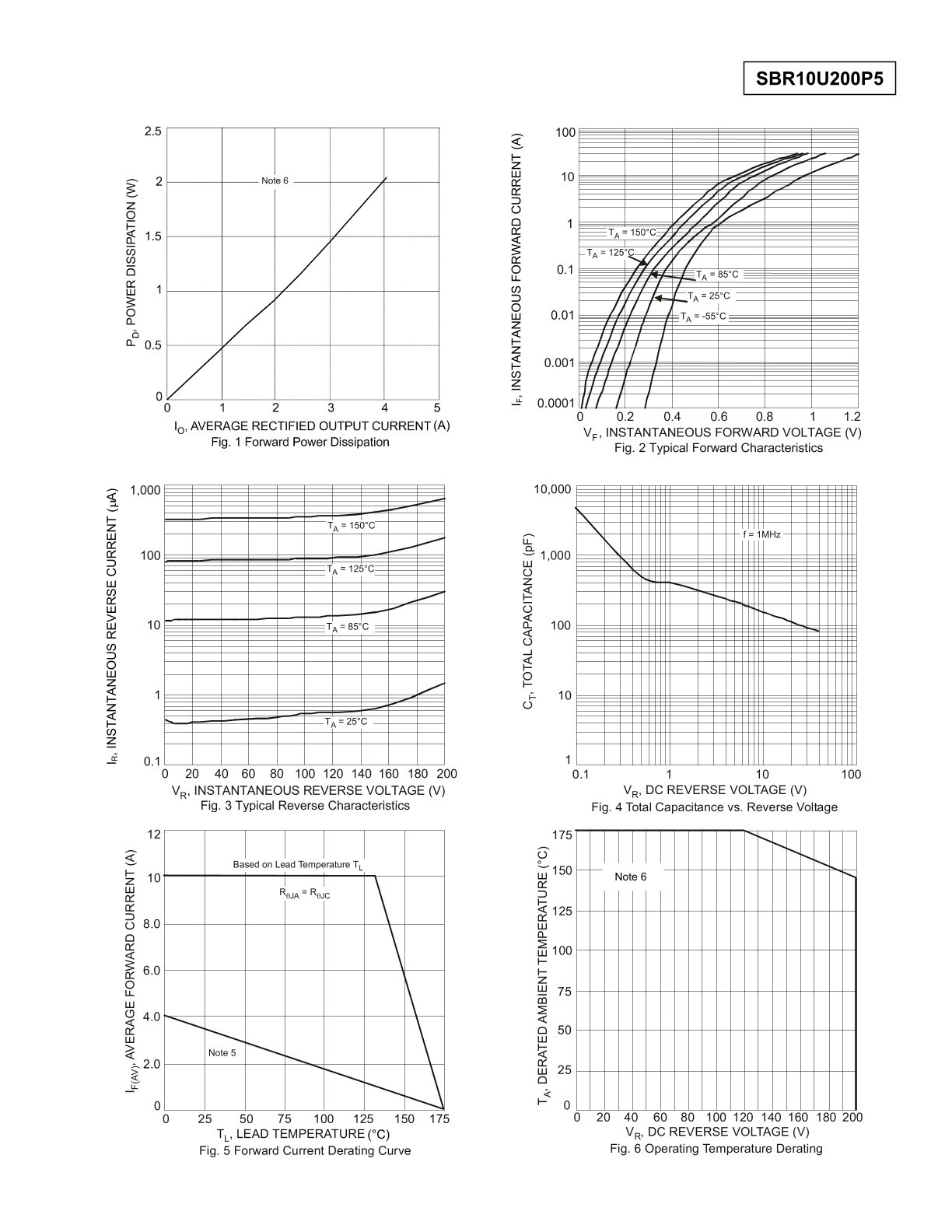

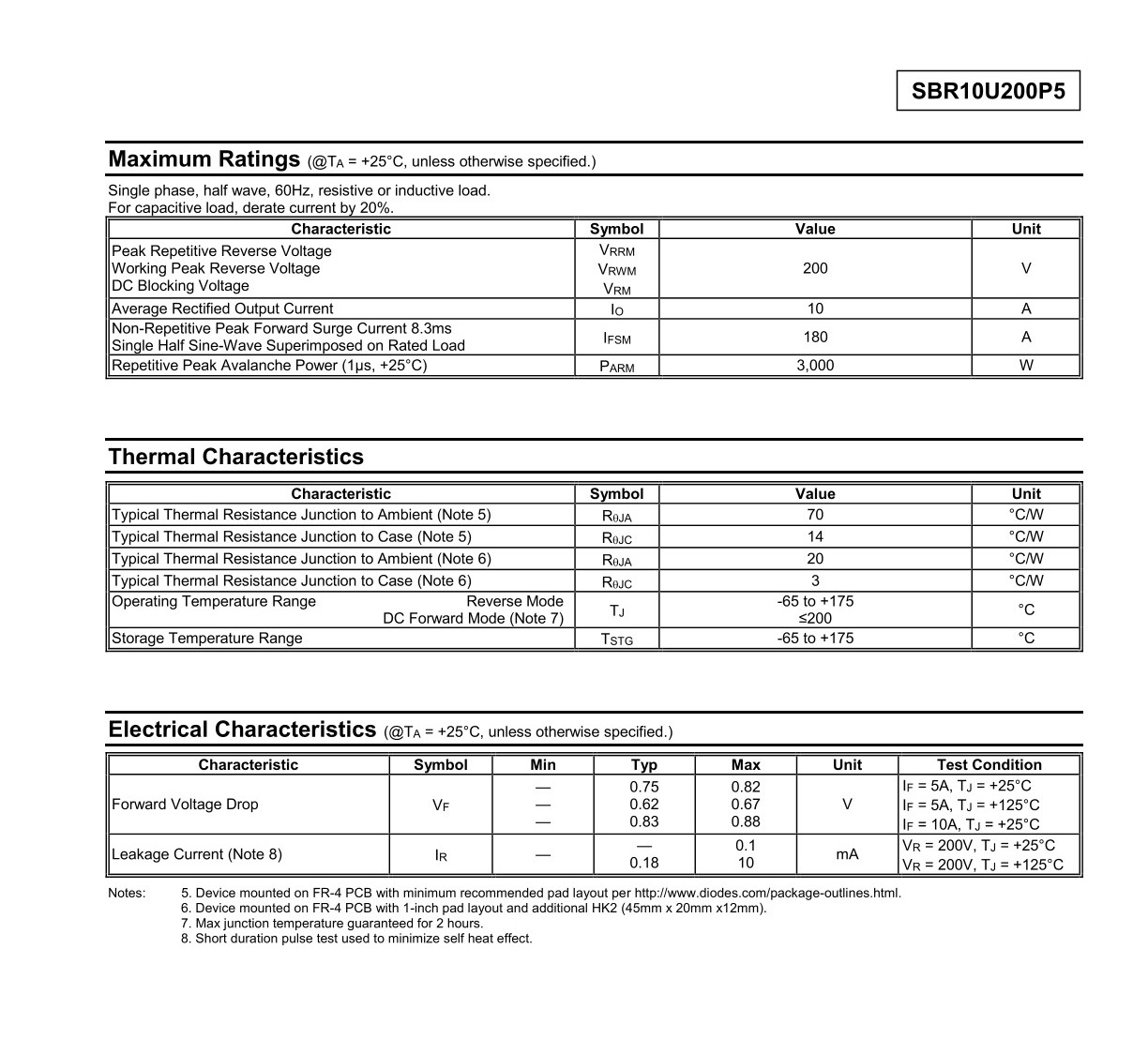

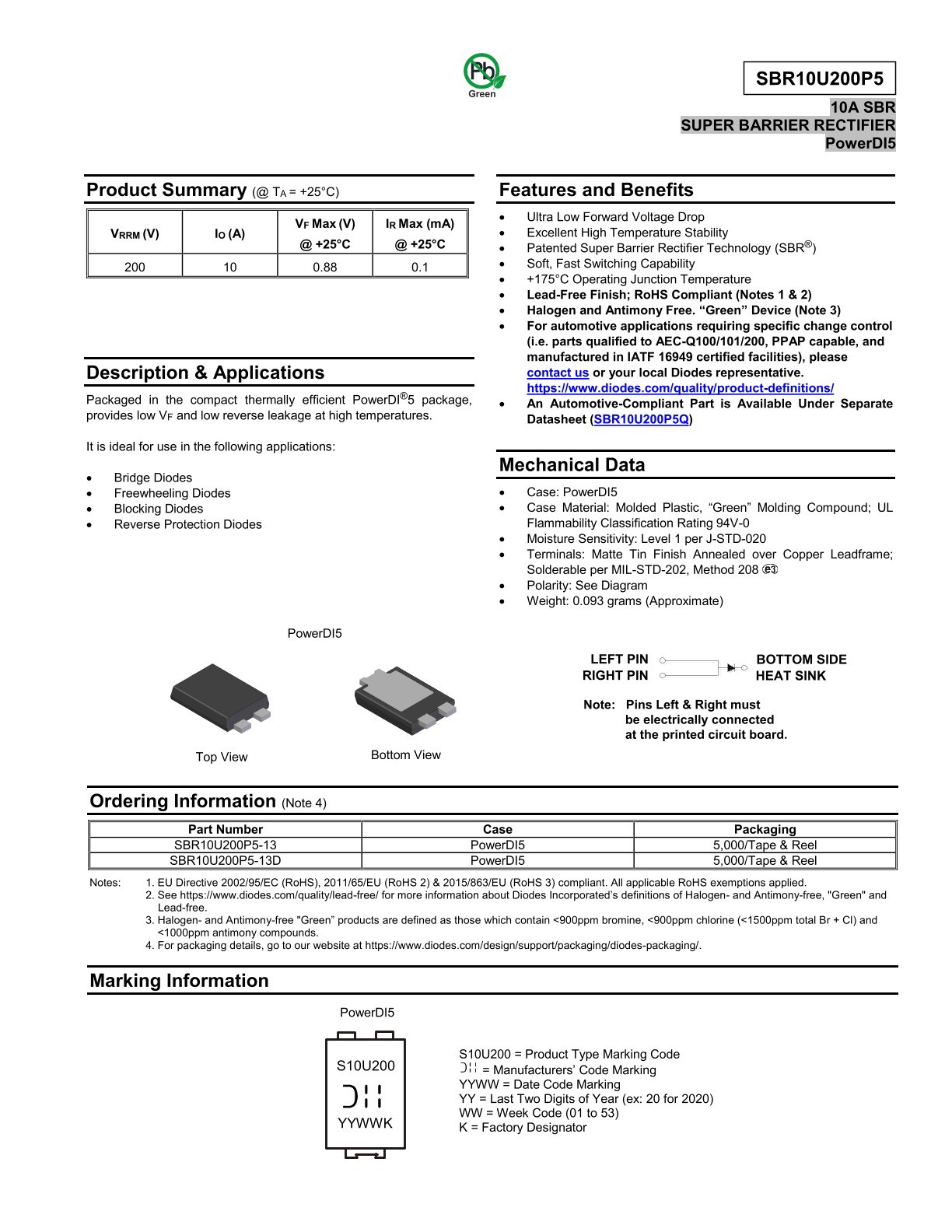

Product datasheet
For more information, please download
