Description The PM0805-6N8M-RC is a high-frequency, fixed inductor designed . This surface-mount device (SMD) is part of the PM0805 series and is specifically engineered for applications requiring precise inductance values and high Q factors. The inductor features a compact rectangular package with a lead-free construction, making it suitable for modern electronic designs. Features Inductance: 6.8 nH with a tolerance of ±20%. Q Factor: 35 at 1 GHz, ensuring high efficiency in high-frequency applications. Frequency-Self-Resonant: Up to 5.8 GHz, making it ideal for RF applications. Current Rating: 600 mA, suitable for moderate current handling. DC Resistance (DCR): 60 mOhm, contributing to low power loss. Operating Temperature: -40°C to 125°C, providing a wide operating range. Mounting Type: Surface Mount (SMD/SMT), facilitating easy integration into PCBs. Terminal Finish: Gold (Au) with Nickel (Ni) barrier, ensuring reliable connections. Packaging: Tape & Reel (TR), convenient for automated assembly processes. Applications Primary Applications: RF Inductors: The PM0805-6N8M-RC is specifically designed as an RF inductor, making it suitable for applications such as filters, resonators, and impedance matching networks in wireless communication systems. Secondary Applications: High-Frequency Filters: Its high Q factor and self-resonant frequency make it useful in high-frequency filter circuits. Impedance Matching Networks: The device's precise inductance value and low DCR make it ideal for impedance matching networks in various RF circuits. |
Product Description
| Type | Description |
| ANSC PART# | ANSC -PM0805-6N8M-RC |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Original |
| Series | PM0805 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Alumina |
| Inductance | 6.8 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 60mOhm |
| Q @ Freq | 60 @ 1GHz |
| Frequency - Self Resonant | 5.8GHz |
| Ratings | - |
| Operating Temperature |
-40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Base Product Number | PM0805 |

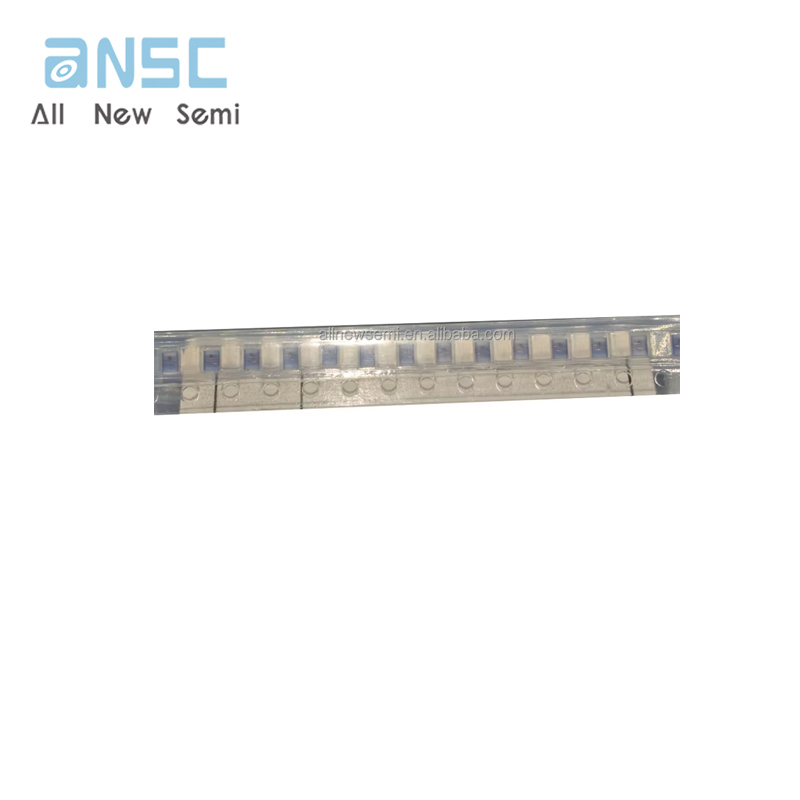

Actual image of the product

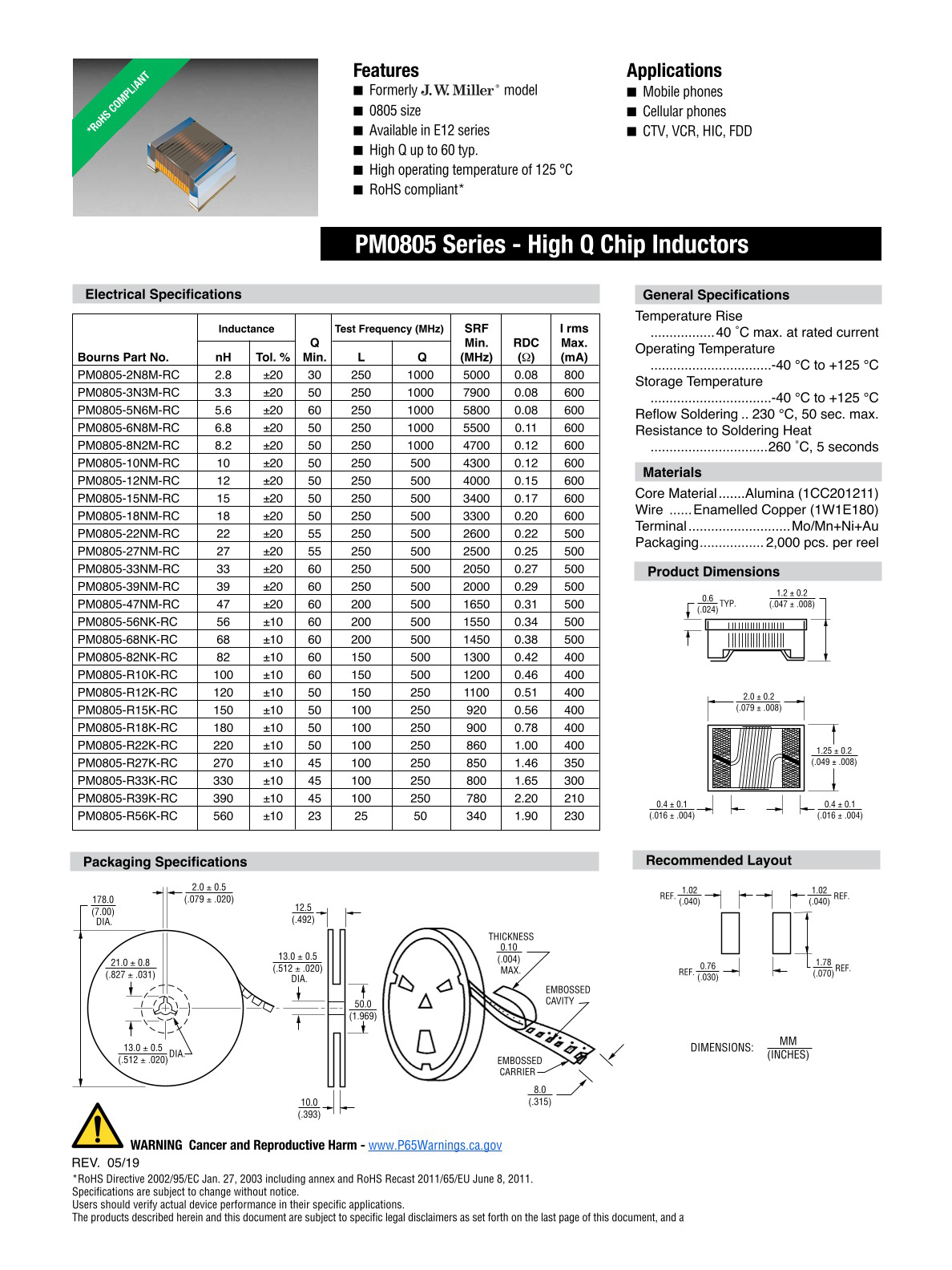

Product datasheet
