Product Overview
There is a ripple current of 326mA set on the capacitor.
As a result of the loss of useful energy in a simple circuit with a resistor and an ideal (perfect) capacitor,
equivalent series resistance (ESR) is known as internal resistance.
Currently, this capacitor is leakage current 1.6μA.A capacitor's dissipation factor determines how
much power is lost when AC is applied through it, and its dissipation factor is 6 %.
The Tan Delta is a dielectric test on the insulating oil to determine its quality, and it is 0.06.
Product Features
-
326mA is the ripple current of the capacitor
-
a leakage current of 1.6μA in this capacitor
-
the dissipation factor is 6 %
-
its tan delta is 0.06
Product Applications
T494B106M016AT applications of tantalum capacitors.
-
Computer
-
General purpose
-
General low power DC/DC and LDO
-
Automotive ECU
-
ABS
-
Airbag systems
-
Avionics,
-
Industrial control units
-
Military / aerospace
-
General purpose
Product Description
| Type | Description |
| ANSC PART# | ANSC - T494B106M016AT |
| Category | Capacitors |
| Tantalum Capacitors | |
| Mfr | Original |
| Series | T494 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 800mOhm |
| Operating Temperature |
-55°C ~ 125°C |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 1411 (3528 Metric) |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Lead Spacing | - |
| Manufacturer Size Code | B |
| Features | General Purpose |
| Failure Rate | - |
| Base Product Number | T494B |

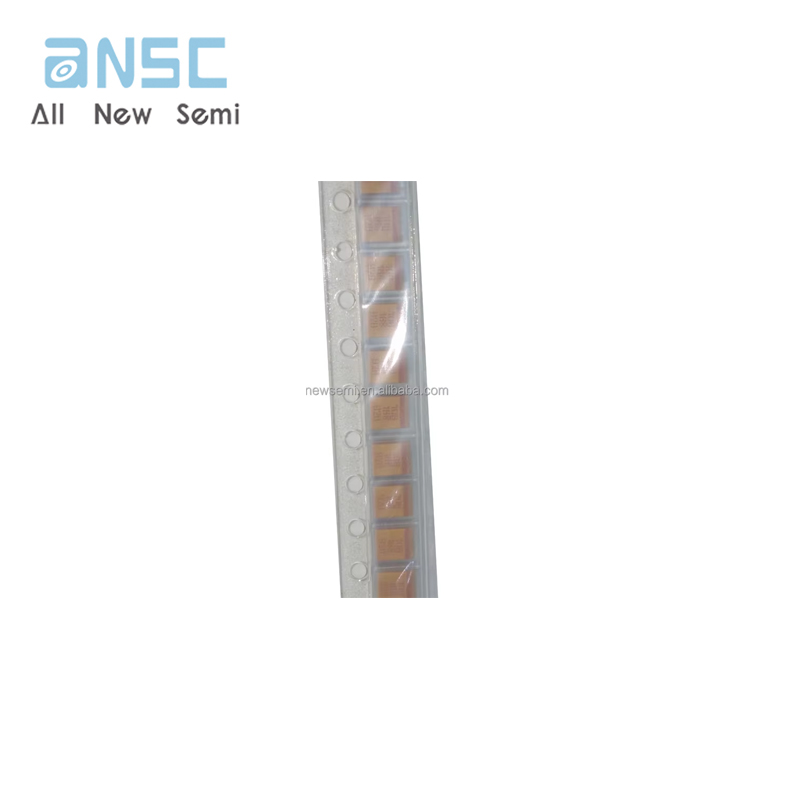

Actual image of the product

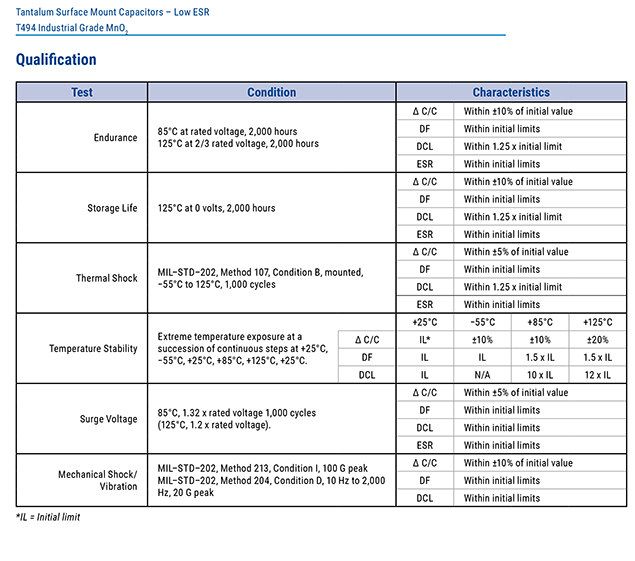

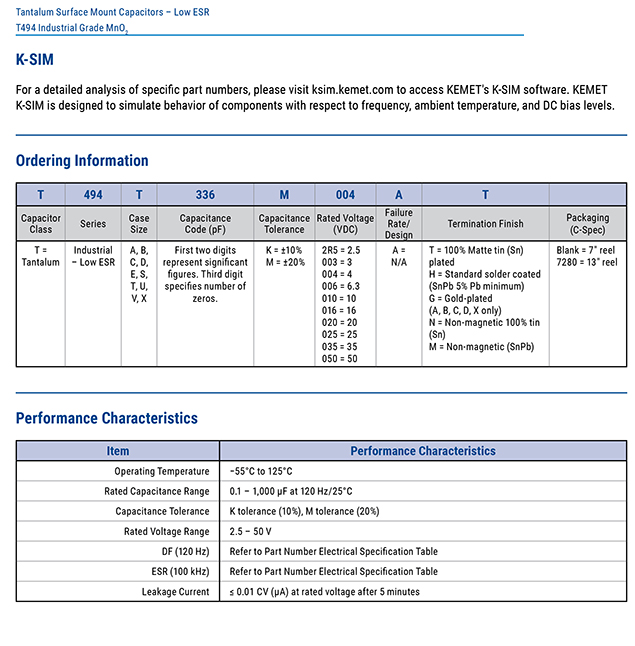

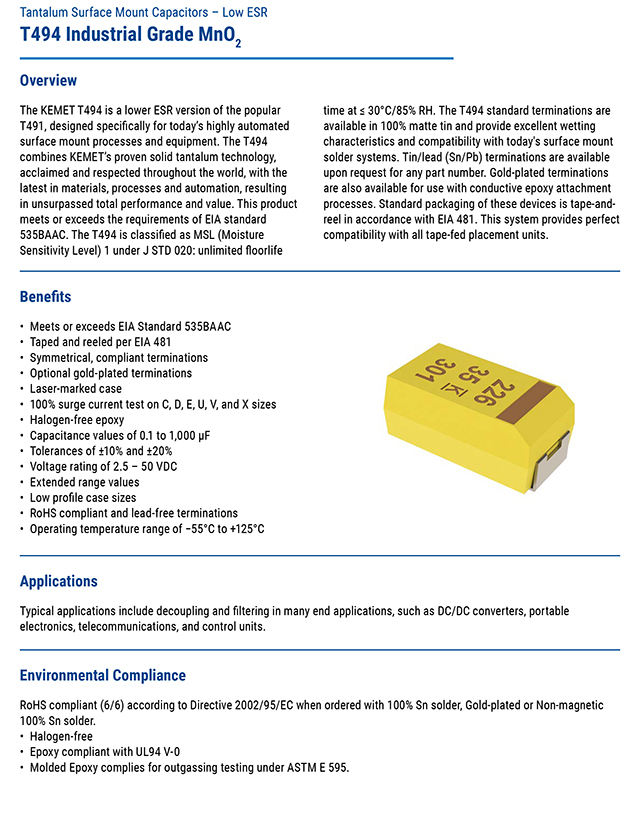

Product datasheet
For more information, please download
