Product Details
Description
The KEMET T520B337M2R5ATE018 is a high-performance, surface-mount tantalum polymer capacitor designed for general-purpose applications. This capacitor offers excellent capacitance, low equivalent series resistance (ESR), and a robust construction that ensures reliable operation over a wide temperature range.
Features
-
High Capacitance: With a capacitance of 330 μF, this capacitor provides significant storage capacity for filtering and decoupling applications.
-
Low ESR: The ESR of 18 mOhm at 100 kHz ensures efficient energy transfer and minimal power loss.
-
Operating Temperature: The operating temperature range of -55°C to 105°C makes it suitable for various industrial and automotive applications.
-
Pb-Free and RoHS3 Compliant: The use of matte tin (Sn) terminal finish and compliance with ROHS3 standards ensures environmental sustainability.
-
Surface Mount Design: The compact size (0.138L x 0.110W, 3.50mm x 2.80mm) and surface mount capability facilitate easy integration into modern electronic circuits.
Applications
Primary Applications:
-
Filtering and Decoupling: The high capacitance and low ESR make this capacitor ideal for filtering and decoupling applications in power supplies, audio equipment, and other electronic devices.
-
Power Supply Regulation: Its ability to handle ripple currents up to 675 mA makes it suitable for use in power supply regulation circuits.
Secondary Applications:
-
Audio Equipment: The capacitor's high capacitance and low ESR make it useful in audio equipment for filtering out unwanted frequencies.
-
Industrial Control Systems: Its robust construction and wide operating temperature range make it suitable for use in industrial control systems where reliability is crucial.
Product Description
| Type# | Description |
| ANSC PART# | ANSC- T520B337M2R5ATE018 |
| Category | Capacitors |
| Tantalum - Polymer Capacitors | |
| Manufacturer | KEMET |
| Series | KO-CAP® T520 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 18mOhm @ 100kHz |
| Operating Temperature |
-55°C ~ 105°C |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 1411 (3528 Metric) |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Lead Spacing | - |
| Manufacturer Size Code | B |
| Ratings | - |
| Features | General Purpose |
| Base Product Number | T520B |

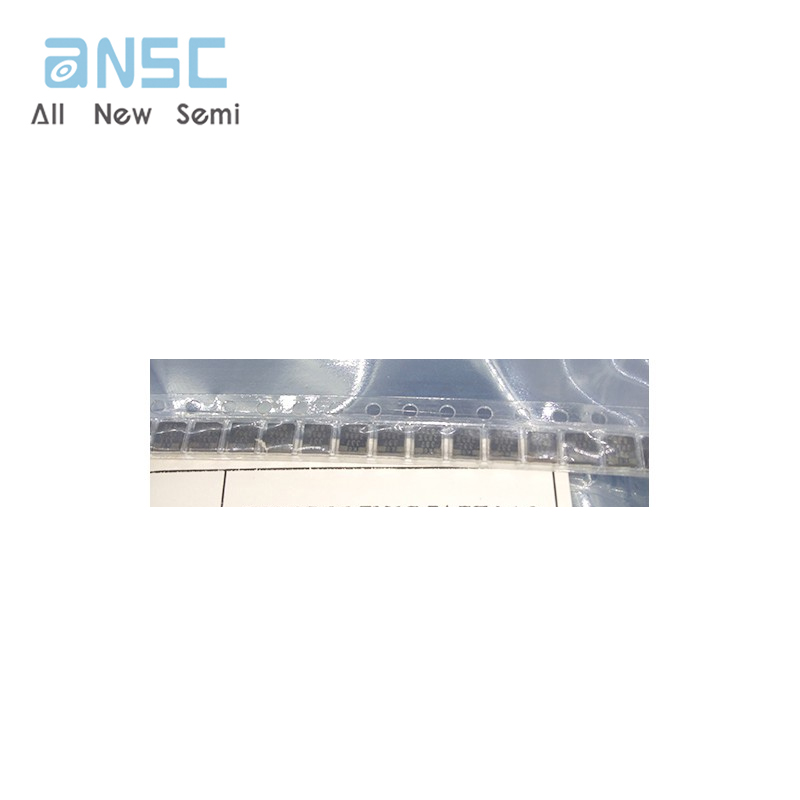

Product Photos

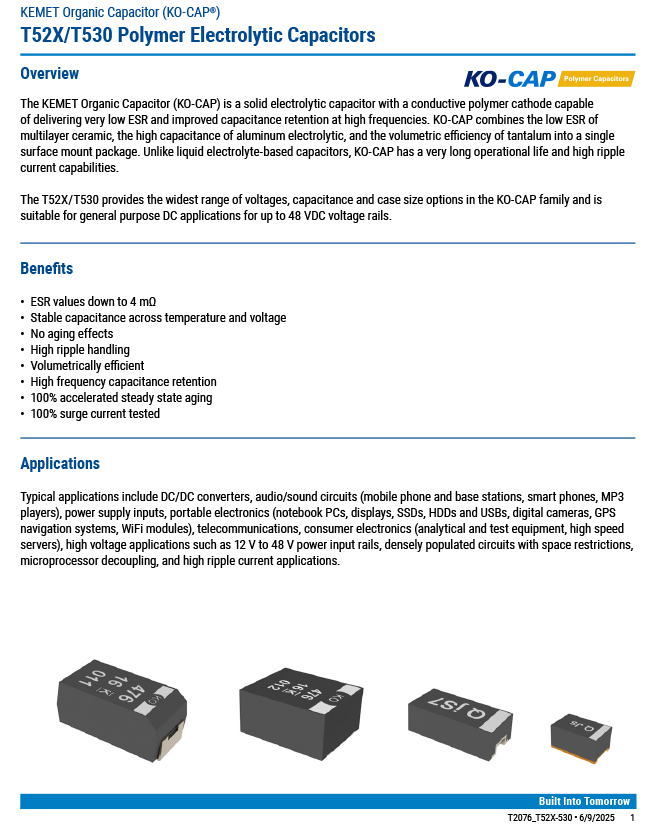

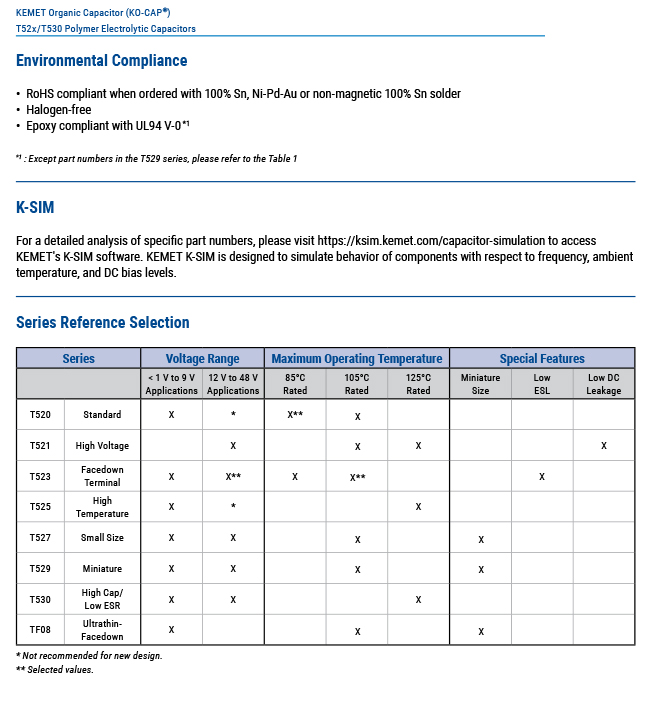

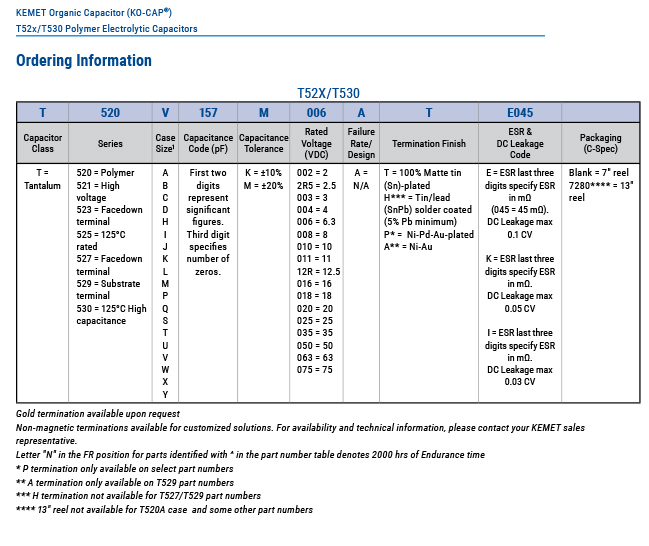

Product datasheet
For more information, please download
