Product Descriptions

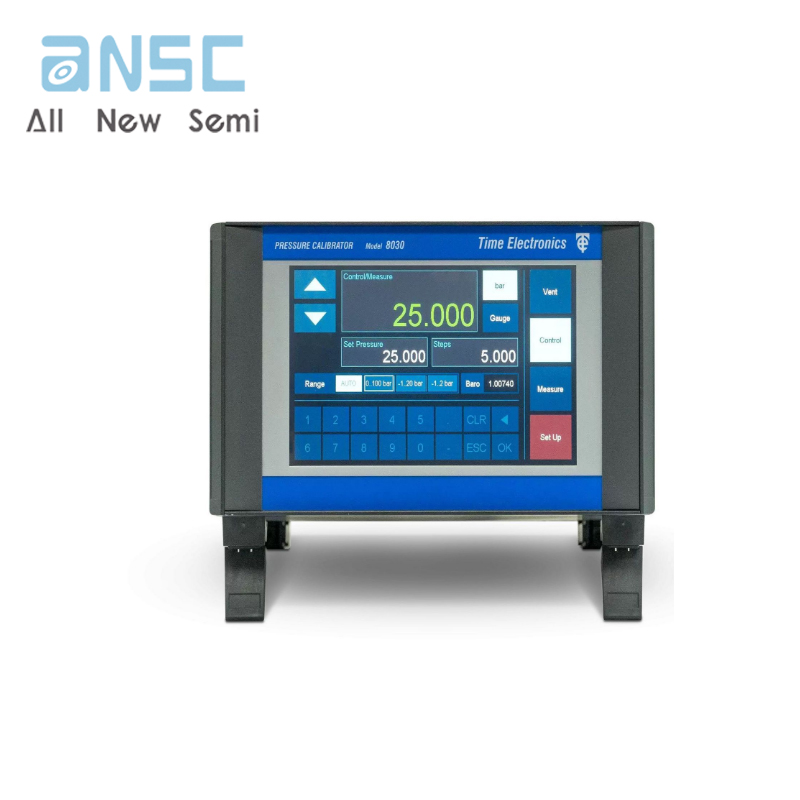

The 8030 is an advanced pressure controller/calibrator suitable for wide workload calibration of pressure devices such as transmitters, sensors and gauges. The standard unit can be configured for multiple ranges from vacuum to 100 bar (1500 psi), integrating up to three high accuracy reference sensors for maximum workload coverage. Additionally a barometric reference option enables absolute pressure emulation. High range dual sensor versions up to 230 bar (3350 psi) are also available.

Due to its fully configurable design, the 8030 offers the maximum flexibility to end user requirements. Accuracy is 0.01 percent FS for each internal sensor fitted, and control stability is 0.005 % FS of the active sensor range. This provides the necessary coverage for applications with outstanding accuracy, control and speed for testing applications.

With up to three sensors integrated into the instrument the user is always offered an optimal calibration solution over a very wide pressure range. The 8030 is suitable as a high performance pressure standard in process plants, factories and calibration labs. Routine testing of pressure instrumentation is made quick and simple, whether using the 8030 touch screen display or via EasyCal calibration software.

Product Features

• Configurable pneumatic controller

• Up to 3 internal sensors for -1 to 100 bar

• Dual sensor versions to 230 bar

• Accuracy per sensor: 0.01 percent FS

• Touch screen user interface

• Virtual control app & EasyCal software

• Barometric reference option

• Control stability per sensor: 0.005 percent FS

• Gauge, compound, absolute, differential
