Product Descriptions

The Hitachi HN58C65 is a electrically erasable and programmable ROM organized as 8192-word × 8-bit. It realizes high speed, low power consumption, and a high level of reliability, employing advanced MNOS memory technology and CMOS process

and circuitry technology. It also has a 32-byte page programming function to make its erase and write operations faster.

Product Features

• Single 5 V Supply

• On chip latches: address, data, CE, OE, WE

• Automatic byte write: 10 ms max

• Automatic page write (32 byte): 10 ms max

• Fast access time: 250 ns max

• Low power dissipation: 20 mW/MHz typ (Active) 2.0 mW typ (Standby)

• Data polling and Ready/Busy

• Data protection circuity on power on/power off

• Conforms to JEDEC byte-wide standard

• Reliable CMOS with MNOS cell technology

• 105 erase/write cycles (in page mode)

• 10 year data retention

Specifications

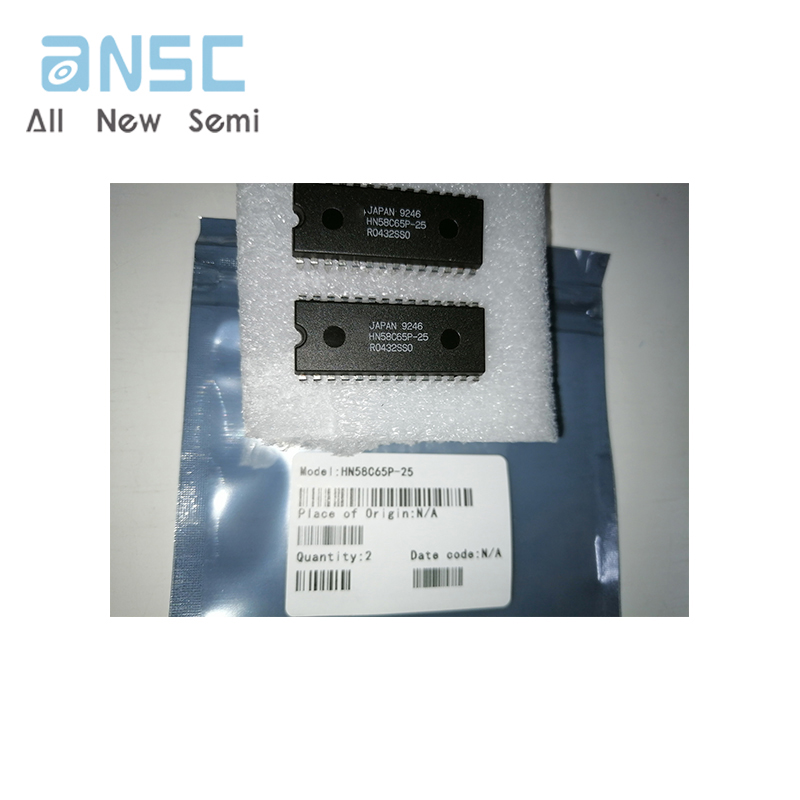

Actual product photos

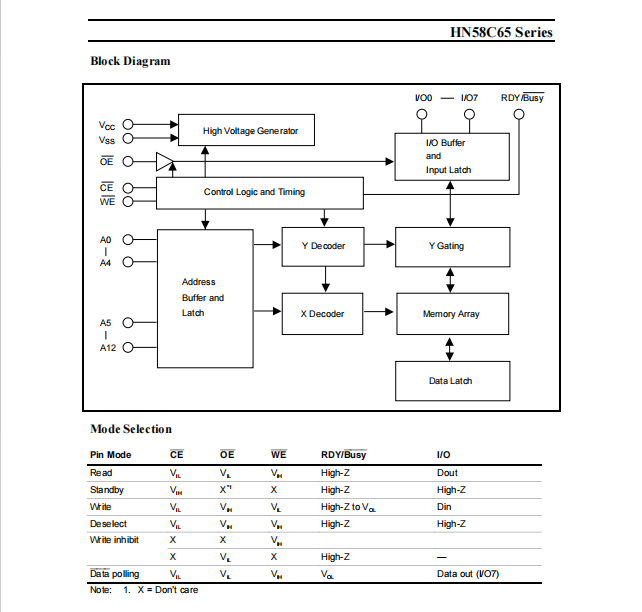

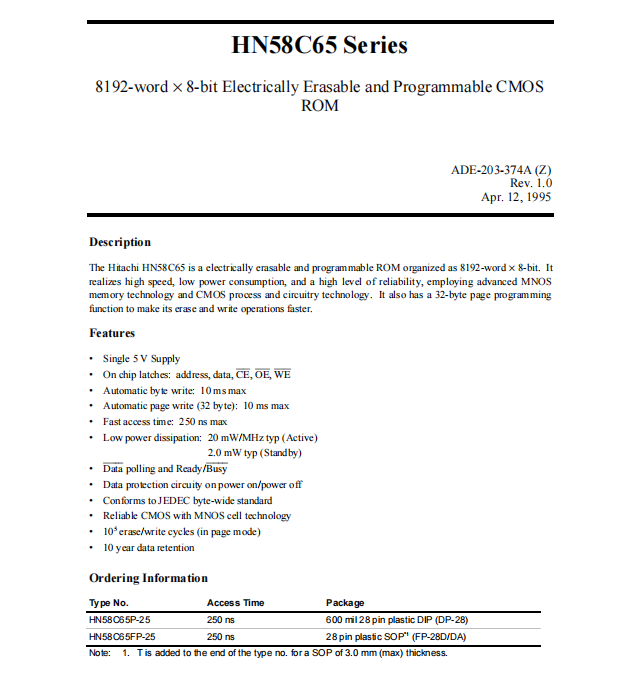

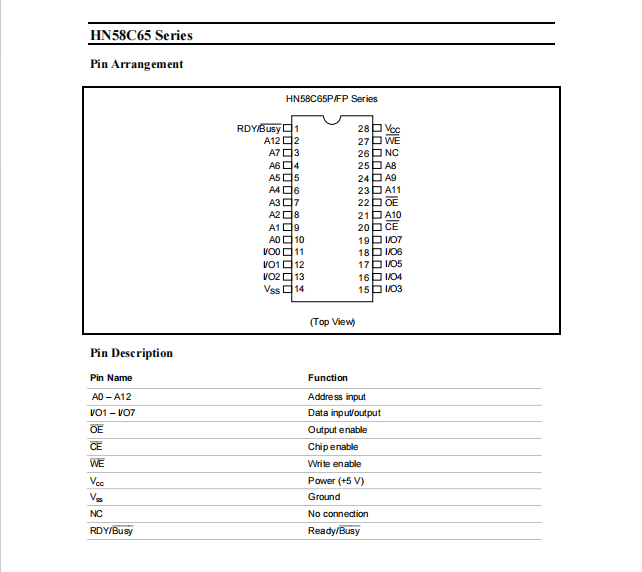

Product Data Book：

For more product information, please download the PDF
