Product Details
30V, 700mA Rectifier
Features
• Low forward voltage (VF max=0.55V).
• Fast reverse recovery time (trr max=10ns).
• Low switching noise.
• Low leakage current and high reliability due to highly reliable planar structure.
Applications
• High frequency rectification (switching regulators, converters, choppers).
Product Description
| Type# | Description |
| ANSC PART# | ANSC- SB07-03C |
| Manufacturer | Original |
| Package Description | R-PDSO-G3 |
| Pin Count | 3 |
| Additional Feature | HIGH RELIABILITY |
| Application | GENERAL PURPOSE |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 0.55 V |
| JESD-30 Code | R-PDSO-G3 |
| Non-rep Pk Forward Current-Max | 5 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Current-Max | 0.7 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 30 V |
| Reverse Recovery Time-Max | 0.01 µs |
| Surface Mount | YES |
| Technology | SCHOTTKY |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |

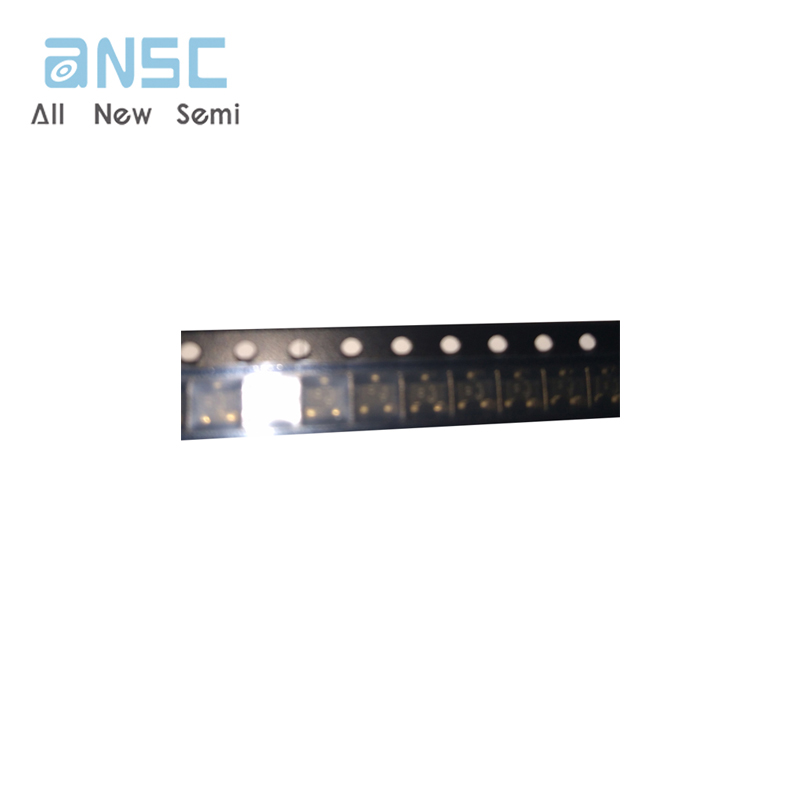

Actual image of the product
